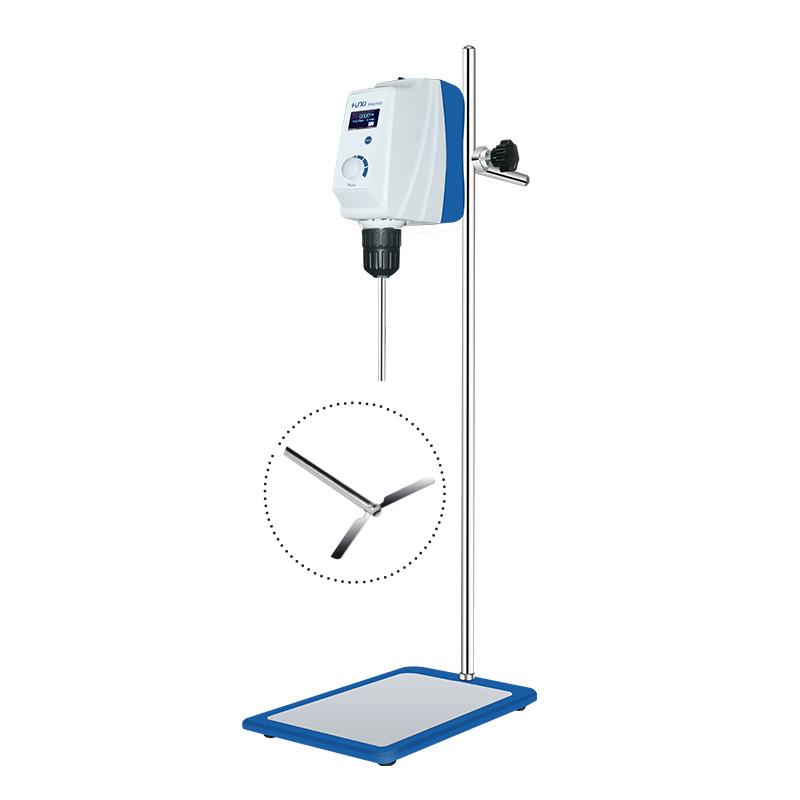

RWD50 LCD Top Stirrer, Centrifugal Impeller 90mm Rod L400mm

RWD50/20030068

LCD Top Stir

Equipped with 90mm centrifugal Impeller, low noise operation, LCD liquid crystal display, self-locking chuck, 30~2200rpm speed, high-low speed controllable, 20L Stir, DC brushless motor, equipped with Impeller penetration hole.

Applications

Overhead (powerful) electric mixers are suitable for mixing medium to high viscosity liquids. The LCD overhead stirrer is more high-end and safer than the LED series. Self-locking chuck is adopted, and square lifting and fixing clips are independently developed. For solid-liquid, liquid-liquid or medium to high viscosity sample mixing. Mainly used in chemical synthesis, pharmaceuticals, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other fields. The product is capable of high load and long-time continuous work with outstanding performance. With overload and abnormal situation automatic protection function, to ensure the safety of the laboratory.

Features

●LCD display, the speed and time can be roughly adjusted, and the working time can also be fine-tuned in the working state;

●Speed 30-2200rpm, constant speed, high-low speed controllable;

●Using DC brushless motor, it can run safely for a long time and has outstanding performance;

●Overload and motor protection, in the event of overload, short circuit or abnormality, the circuit will be automatically cut off and an alarm will be issued to ensure the safety of the experiment;

● Equipped with a stirring paddle penetration hole, the user does not need to adjust the installation height of the instrument, only the installation position of the stirring rod is sufficient;

The torque can be automatically adjusted according to the viscosity change of the sample, which is convenient for experimental operation;

●A variety of stirring paddles and brackets are optional.

optional paddle

1. Round three-hole fan-type stirring impeller

Application: Stirring performance is mild, used at medium and low speeds, and used in mediums that need to be soft and stirred.

style	Paddle diameter mm	Rod diameter mm	Rod length mm
	50	8	300
	50	8	400
	50	8	500
	70	8	300
	70	8	350
	100	10	300
	100	10	400
	100	10	500

2. Dissolving stirring paddle

Application: Application: Use at medium and high speeds to make the mixed medium flow radially from top to bottom, forming strong turbulent flow and high shear force to crush particles in the liquid, suitable for medium and high viscosity liquids.

style	Paddle diameter mm	Rod diameter mm	Rod length mm
	30	8	350
	40	8	350
	50	8	350
	60	8	350
	80	8	350
	100	8	350
	120	8	350
	150	8	350

3. Three-blade stirring paddle

Application: Made of stainless steel, the mixed medium flows axially from top to bottom to generate local shear force, and can be used at medium and high speeds.

style	Paddle width mm	Paddle height mm	Rod diameter mm	Rod length mm
	70	1.5	6	300
	70	1.5	6	350
	70	1.8	6	300
	70	1.8	6	350
	70	1.5	8	300
	70	1.5	8	350
	70	1.8	8	300
	70	1.8	8	350

4. Centrifugal stirring paddle

Application: Foldable stirring paddle, the two blades expand with the increase of speed, used at medium and high speeds, suitable for narrow-mouth containers with a paddle height of 10mm.

style	Paddle diameter mm	Rod diameter mm	Rod length mm
	90	8	300
	90	8	350
	90	8	400
	90	8	500
	90	10	300
	90	10	400
	90	10	500
	90	10	650

5. Four-blade stirring paddle

Application: standard stirring impeller, made of stainless steel, used in medium and high speed, suitable for medium and low viscosity.

style	Paddle diameter mm	Rod diameter mm	Rod length mm
	50	8	300
	50	8	400
	50	8	350
	50	8	500
	100	10	300
	100	10	400
	100	10	500

6. Screw type stirring paddle

Application: Slow-speed stirring impeller, often operated in the laminar flow area, the liquid rises or falls along the helical surface to form an axial up and down circulation, suitable for mixing and heat transfer of medium and high viscosity liquids.

style	Paddle diameter mm	Rod diameter mm	Rod length mm
	50	8	350
	60	8	350
	70	8	350
	80	8	350
	90	8	350
	100	8	350

7. Round six-hole fan-type stirring impeller

Application: Tangential flow is generated when stirring, small turbulent flow, good heat exchange performance, mild stirring performance, and medium and low speed use.

style	Paddle diameter mm	Rod diameter mm	Rod length mm
	50	8	300
	50	8	400
	50	8	350
	50	8	500
	100	10	300
	100	10	350
	100	10	400
	100	10	500

8. One-word stirring paddle

Application: Stainless steel material, medium and high speed use, suitable for medium and low viscosity mixing.

style	Paddle diameter mm	Rod diameter mm	Rod length mm
	50	8	300
	50	8	400
	50	8	500
	60	8	300
	60	8	350

9. Round anchor stirring paddle

Application: Tangential flow is generated when stirring, and high shear rate is formed at the edge, so that the mixed medium is not easy to deposit on the container wall, and it is suitable for low speed.

style	Paddle width mm	Paddle height mm	Rod diameter mm	Rod length mm
	100	60	8	300
	100	60	8	350

10. Square anchor stirring paddle

Application: Use at low speed, generate tangential flow, and form high shear rate at the edge, so that the mixed medium is not easy to deposit on the container wall. It is suitable for polymer reaction and dispersion of minerals in liquid. It is a satisfactory stirring element for medium and high viscosity fluids.

style	Paddle width mm	Rod diameter mm	Rod length mm
	70	8	300
	70	8	350
	70	8	500
	90	10	650
	140	10	800

11. Square hole fan type stirring impeller

Application: Stainless steel material, used at medium and low speeds

style	Paddle width mm	Rod diameter mm	Rod length mm
	50	8	350
	60	8	350
	60	8	350
	70	8	350

Packing list：Complete-built unit X1, manual X1, certificate X1, warranty card X1, Impeller X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
