Japan OSP-40/400 formed thread rod WFT 40μm length 400mm

SE
Preparative film thickness of 40μm, formed threaded rod cleaning easy not easy to break wire, effective application width of 300mm, using high-grade wear-resistant stainless steel material.
$172.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

OSP OSP-40/400 coating rodSPEC

OSP OSP-40/400 coating rodDetails

OSP OSP-40/400 coating rodPacking list

SKU
NB003780
Production process
Formed
WFT
40µm
diameter
10mm
Total length
400mm
Application width
300mm
Grip width
50+50mm
material
304 stainless steel
OSP-40/400
coating rod
Preparative film thickness of 40μm, formed threaded rod cleaning easy not easy to break wire, effective application width of 300mm, using high-grade wear-resistant stainless steel material.
Japan OSP-40/400 formed thread rod WFT 40μm length 400mm Picture


Japan OSP-40/400 extruded threaded rod prepares wet films of different thicknesses by processing grooves of different specifications. The wet film thickness of this model is 40 microns, and the effective width that can be coated is 300mm. It can achieve the same coating effect as the traditional wire-wound rod, but it is different from the wire-wound rod in terms of coating amount. It is exquisite in workmanship and made of stainless steel. Long service life.

OSP-40 coating stick animation operation video.gif

Japanese OSP Coating Rod Full Series Chart

OSP Extrusion Coating Rod Specifications.jpg

Features and advantages of OSP-40 coating stick.gif

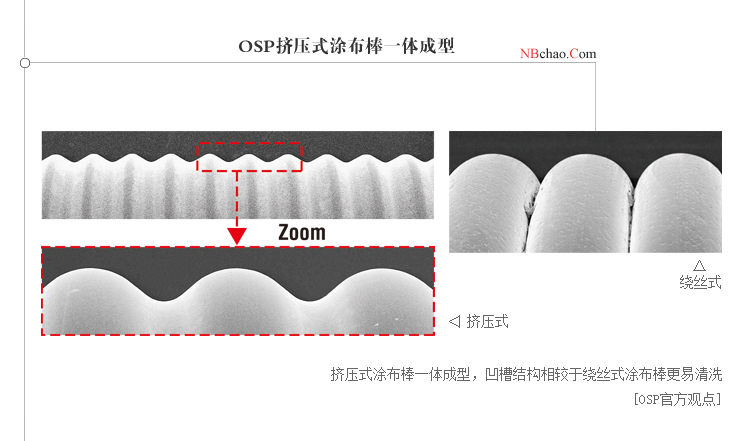

OSP-40 Coating Rod Groove Shape

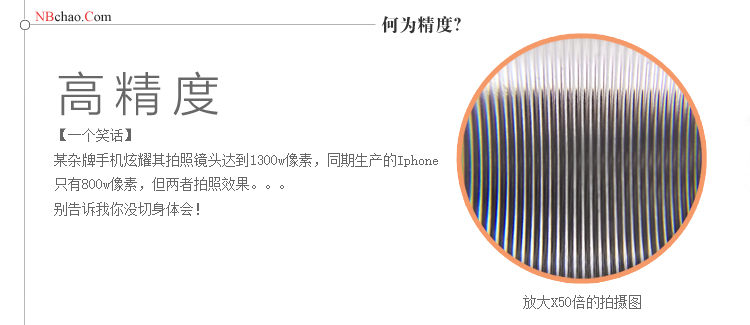

OSP-40 coating rod with high coating precision

Applications of OSP-40 coating stick.jpg

Why choose NBCHAO Mall.jpg

Real shot of OSP-40 coating stick 1.jpg

Real shot of OSP-40 coating stick 2.jpg

The handle of the OSP-40 coating stick is real shot.jpg

Optional

Wire Rod Cleaning Machine

LABOratory automatic coating machine

Coating film test jamRK imprint bed

Note: Click on the accessory picture to view Details.

FAQ
QApplicator rod 40u do you have?
A Yes, OSP-40/400.
QIs there a size 40 OSP rod, and what is the film Film thickness?
A Hello, yes, the wet film thickness of OSP-40 Spreader is 40μm.
QDo you have the film scraper involved in ASTMD823?
A The OSP-40/400 film scraper will do
QWhat should I do if the roller painting rod is blocked?
A The blockage of the roller painting bar is usually caused by the failure to clean it in time after the Spreader. When cleaning, you need to soak it for a period of time, and then choose a suitable solvent to clean it. Normally, you can wash it with water. If it is still difficult to remove after soaking, you can use a special cleaning brush for the bar to clean it.
