China

Muxuan MXF-1.5CQD Disperser (Stirrer) Fully explosion-proof 0-3000rpm

SE
Muxuan MXF-1.5CQD Disperser speed 0-3000rpm, processing capacity L5-30L, dispersion Stir head standard 120/150mm, MXF-1.5CQD Disperser is suitable for Biomedical, Cosmetics, Food, Coating Paint, Printing ink, Adhesive, dyestuff, pesticide and other industry product materials dispersion, mixing, dissolving, Stir.
Model：
Certificate
Contact
Details SPEC

MuXuan MXF-1.5CQD Disperser (Stirrer)SPEC

MuXuan MXF-1.5CQD Disperser (Stirrer)Details

MuXuan MXF-1.5CQD Disperser (Stirrer)Packing list

SKU
NB037832
power
1.5KW
Speed regulation range
0~3000rpm
Processing Capacity L
5-30L
Lifting stroke
370mm
Dimensions
510*520*1050mm
Power Supply
220V
MXF-1.5CQD
Disperser (Stirrer)

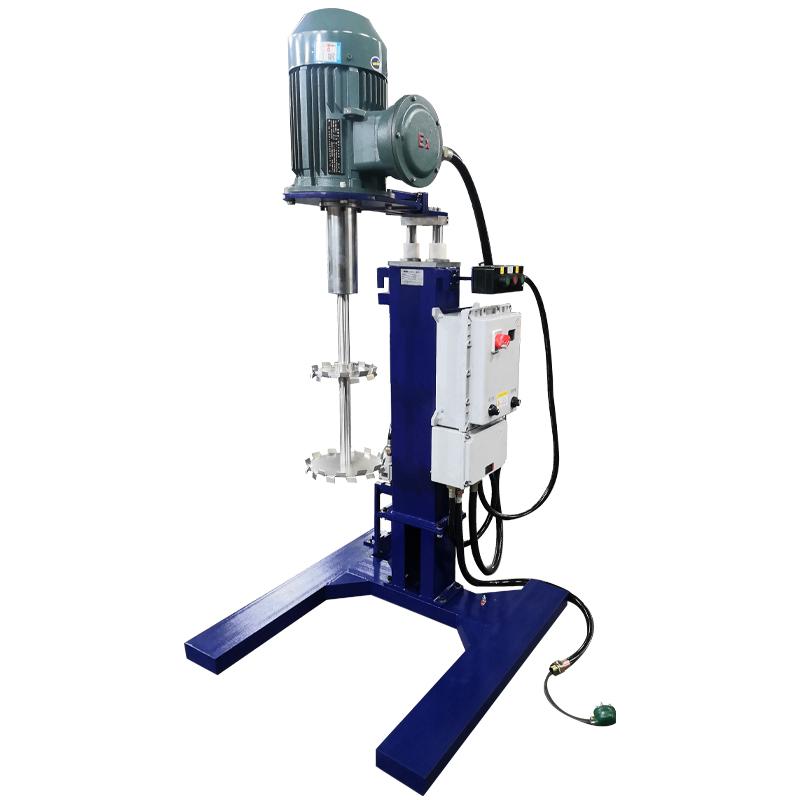

Muxuan MXF-1.5CQD Disperser (Stirrer) Fully explosion-proof 0-3000rpm Picture

Introduction

The Pilot-scale Testing small-batch dispersing mixer adopts a high-performance variable frequency motor and a three-phase asynchronous motor as the drive motor, and different sizes of dispersing discs can be selected according to the viscosity and processing capacity, 0-3000 rpm, compared with other types of high-speed motors, it has a larger volume Small size, large output power, stable speed, variable frequency and variable speed, large starting torque, high operating efficiency, low energy consumption, low noise and high stability. It improves the Operating Environment of users and is a new and upgraded product that is more suitable for laboratory and production use.

Application

【Material viscosity】:≤25000 cps

【Production capacity】:0.5-300L

[Applications]: It is suitable for dispersing, mixing, dissolving and stirring of product materials in biomedicine, cosmetics, food, paint, ink, adhesive, dye, pesticide and other industries.

Advantages of this machine

  • High-performance motor, lower noise, more stable operation, to ensure the high quality of the whole machine;

  • Digital display dynamic speed frequency conversion control, timing, motor explosion-proof, complete machine explosion-proof, sound and light alarm and other configurations can be selected according to process needs.

  • Lifting method: divided into manual lifting and electric lifting

  • Stirring methods include paddle type toothed disc type blade type, different stirring forms can be selected according to the needs of process production, and the replacement is simple and convenient


FAQ
QPlease tell me, use 0-1500 rpm for high viscosity, because under the same Rotation speed, the torque is large, right? If it is 1500 rpm of 0-3000, why is the torque low?
A The higher the rotation speed, the smaller the torque: Power P = torque × angular speed ω, angular speed (ω) = 2π Rotation speed (n), when the rotation speed increases, the angular speed will also increase, torque = Power P/angular speed ω, so the torque decreases accordingly; Max. Torque generally appears in the middle and low Rotation speed range of the engine. With the increase of Rotation speed, the torque will decrease
