RDS #47 Mayer Rods Applicator rod WFT 107.4μm

SE
Extrusion type Mayer Rods, Film thickness of 107.4 μm, for film scraping of about 100 microns, Spreader rod at both ends of the hand portion of 50mm.
$155.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 47# 1/4“ Applicator rod 1/4 "SPEC

RDS 47# 1/4“ Applicator rod 1/4 "Details

RDS 47# 1/4“ Applicator rod 1/4 "Packing list

SKU
NB000038
Production process
wire-wound
WFT
107.4μm
diameter
6.35mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
47# 1/4“
Applicator rod 1/4 "
Extrusion type Mayer Rods, Film thickness of 107.4 μm, for film scraping of about 100 microns, Spreader rod at both ends of the hand portion of 50mm.

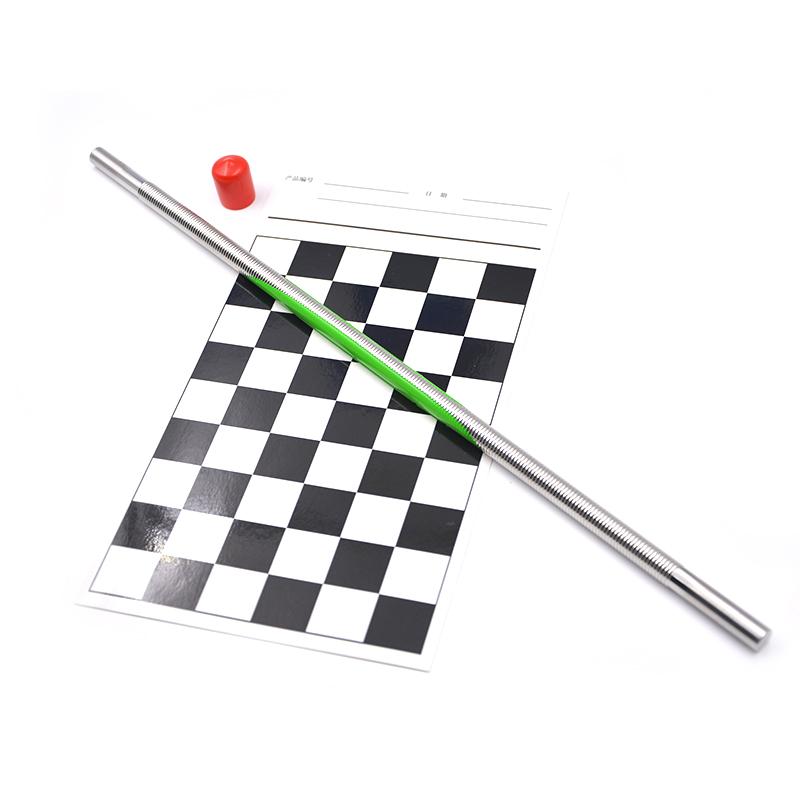

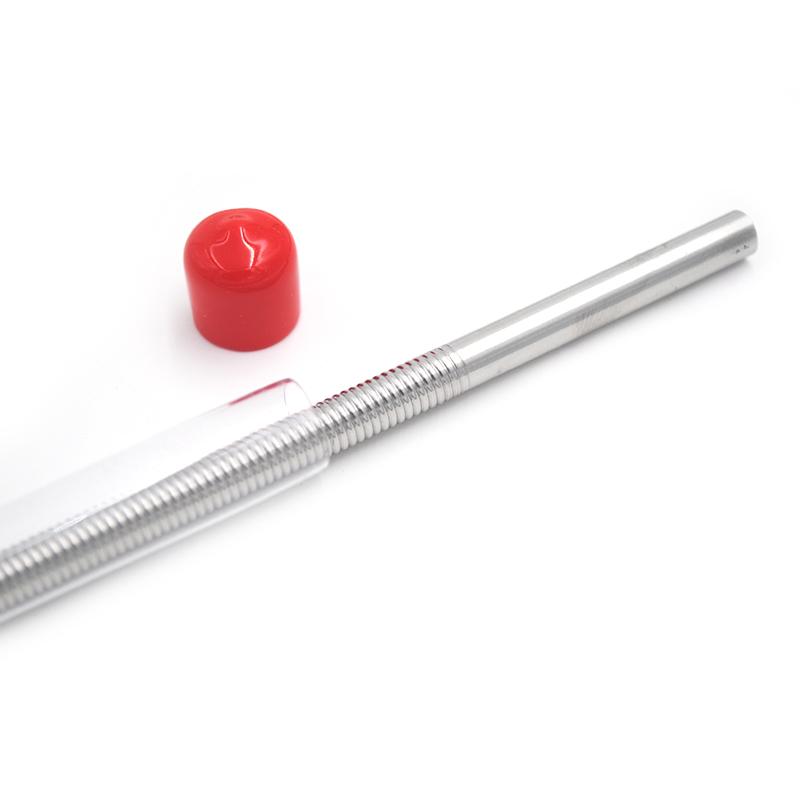

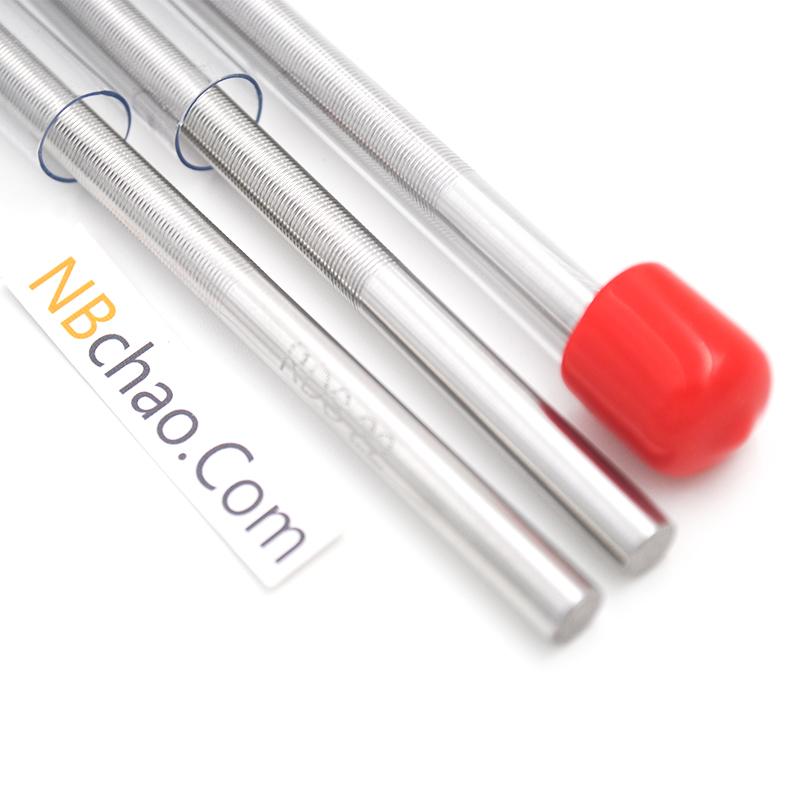

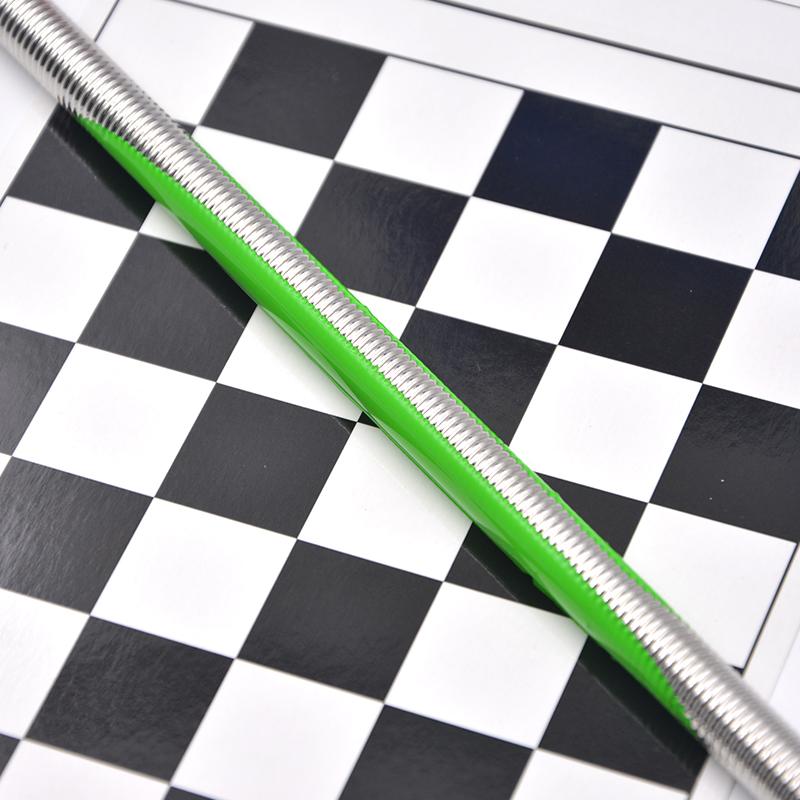

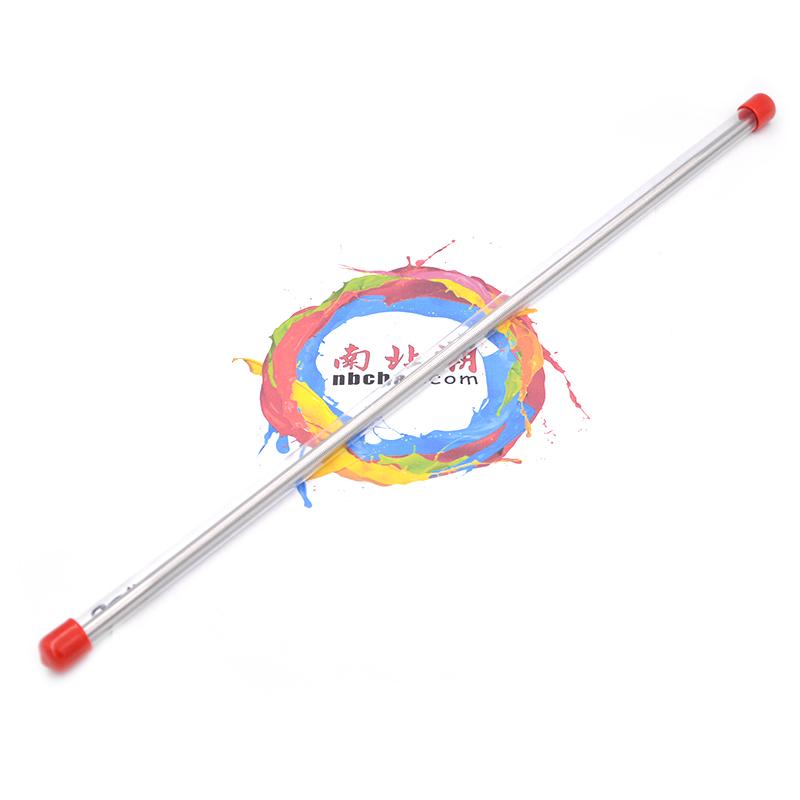

RDS #47 Mayer Rods Applicator rod WFT 107.4μm Picture

Product description

RDS#47 wire bar applicator is a manual coating bar for preparing 107.4μm wet film thickness, with 50mm hand-holding parts at both ends, which conforms to ergonomics and is more convenient in the coating process and convenient The operator applies pressure more evenly on the rod, and the total rod length of the RDS wire rod coater is 400mm. RDS47 wire rod applicator has only 1/4 diameter shaped coating rod, which is suitable for high-viscosity experimental coating film, easy to clean and not easy to block impurities.


RDS coating Rods Figure 1



RDS coating Rods Figure 2



RDS coating Rods Figure 3



RDS coating Rods Figure 4



RDS coating Rods Figure 5



RDS coating Rods Figure 6



RDS coating Rods Figure 7



RDS coating Rods Figure 8



RDS coating Rods Figure 9



RDS coating Rods Figure 10



FAQ
QCan this thing measure Coating mass?
A It should be said that it is Coating quality. Mass needs to be measured with Balance in the field of detection.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QIs this the extruded wire rod mentioned in JB/T7663.2?
A OK
QSpreader and swirl/spin film, pull film what is the difference? Which is good?
A Swirl/spin film coating can not cover the surface of the substrate Glass, Coating is thrown out of the filamentous film and uneven; pull film uniformity is good, Glass substrate on both sides, transparency is general, film thickness is not easy to control; Spreader Glass surface uniformly covered, good transparency, Coating less, and can control the film thickness well.
