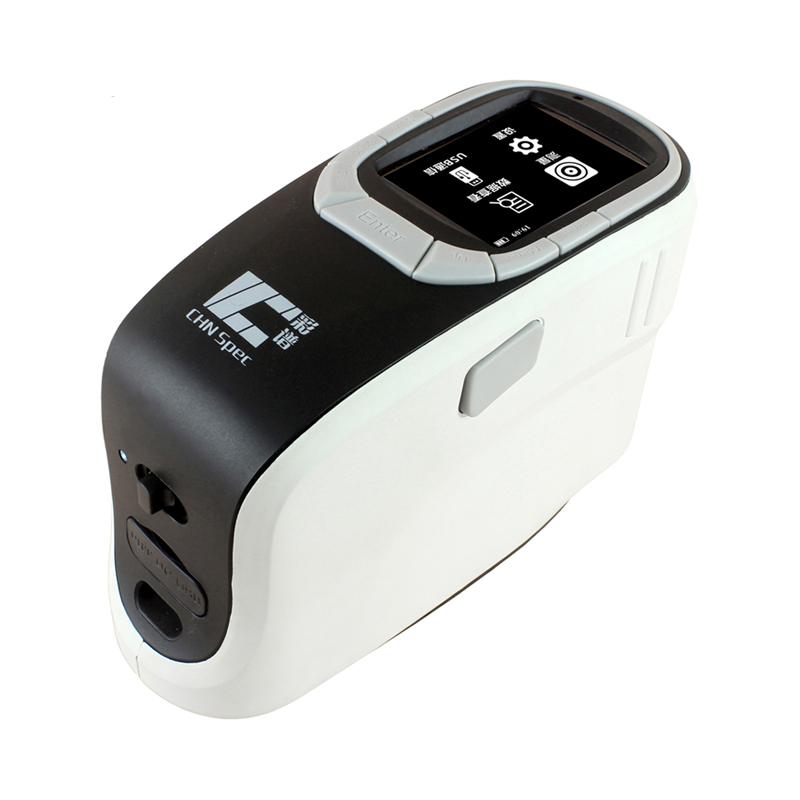

CHNSPEC CS-600B Colorimeter for inks, Plastics, Food, Spinning & weaving, Hardware, Automotive, etc

CS-600B

Colorimeter

4Mm measurement aperture, camera framing, standard deviation within 0.08%, built-in software, full-band balanced Led Light source, can be equipped with color scheme system, excluding UV Light source.

Introduction

Color Spectrum CS-600B Spectrophotometer is a hand-held Spectrophotometer with two models,  CS-600A and CS-600B , which are used to measure calibers of 10mm, 4mm and 6mm respectively. The CS-600B Spectrophotometer is different from ordinary Colorimeters. It can not only measure color difference but also analyze color. It has the function of camera viewfinder. The super large display screen can intuitively and clearly display the measured value, and can store measurement data and set parameters individually. .

Color Spectrum CS-600B Spectrophotometer is a novel and portable Spectrophotometer that meets the color needs of various industries. The characteristics of high cost performance. Performance is far superior to traditional Colorimeter products.  The CS-600B Spectrophotometer is widely used and can be operated in factories and laboratories, which is enough to achieve good color measurement in quality control in almost all Applications.

Features and advantages

1. Color spectrum CS-600B Spectrophotometer adopts composite LED lighting source

2. Repeatability: standard deviation △E*ab within 0.05

3. It has a wide range of applications, not only in laboratories, but also in factories and some construction sites

4. Portable, large-capacity rechargeable lithium battery, long service life and DC power supply

5. The appearance design is novel and beautiful, and the operation is simple

Features

1. Color spectrum CS-600B Spectrophotometer has the function of camera viewfinder: it can clearly observe the area to be measured and prevent measurement deviation.

2. With storage function, large storage space: it can store 100 sets of standard samples, and each set of standard samples can store up to 200 test records.

3. Pre-positioning board setting: Color spectrum CS-600B Spectrophotometer calibration is more convenient, without standard blackboard and whiteboard.

4. The data is transmitted through the USB interface, and  the upper computer operation can be performed on the PC software.

5. Dual measurement mode: SCI (specular reflection included) and SCE (specular reflection elimination) modes can be measured simultaneously and the measurement results can be displayed.

6. Powerful built-in software: contains all necessary color equations, standard light sources suitable for different tasks, and a large number of indicators for specific industries and applications.

7. Chinese and English bilingual operation: the operating system supports Chinese and English bilingual interface.

Product Application

Can be used in laboratory, factory or field operations, enough to achieve good color measurement in quality control in almost all Applications;

●Lower price, get high-performance spectroscopic and color management tools to meet the urgent needs of small and medium-sized enterprises for high-end instruments;

●The built-in software contains all necessary color equations, standard light sources suitable for different tasks, and a large number of industry-specific and application-specific indicators;

●The operating system supports bilingual interfaces in Chinese and English, and Color Book provides customized services for the interface language according to the actual needs of customers.

Spectrophotometers provide good color quality monitoring!

Packing list：Host x1, power adapter x1, lithium battery x1, manual x1, Color management software x1, driver software x1, manual electronic version x1, Color management tutorial x1, data cable x1, black and white correction cylinder x1, protective cover x1, wristband x1, portable bag x1, Electronic Formula Guide x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
