CHNSPEC CS-660B Colorimeter 4mm is suitable for color schemes and coatings, Spinning & weaving, plastics, food, building materials, etc

CS-660B

Colorimeter

High configuration, 4mm small diameter, camera framing, using D/8 Illumination condition, ETC real-time calibrating, automatic Gloss compensation, can be equipped with color scheme system, standard Color management software, Measurement verification report.

Introduction

The CS-660B Spectrophotometer adopts D/8 illumination geometry, which is an international universal geometric condition, and adopts CLEDs light source, which can avoid the lack of white light and ensure the speed of measurement.The CS-660 Spectrophotometer has a large LCD screen, which makes it easy to read the measurement data clearly. Based on ergonomic design, fashionable and novel appearance, and eliminating the need for traditional Colorimeter calibration procedures, using the setting of pre-positioning plates, simple operation, etc., these advantages make it more cost-effective, but also more popular in the industry.

The CS-660 Spectrophotometer has powerful built-in software that contains all the necessary color equations, standard light sources for different tasks, and a large number of industry- and application-specific indicators. The color Spectrophotometer has obtained the national first-class metrology certification, integrates a number of technical characteristics, has superior performance, and is cost-effective among similar products at home and abroad.CS-660 Spectrophotometer It can be operated in factories, laboratory sites, etc.almostColor measurement in quality control for all areas of application.

Application examples

CS-660 Spectrophotometer is a very widely used Colorimeter, which can be used in a variety of industries such as printing coatings. Here are three examples:

1) Application in the printing industry: case of color difference analysis of cigarette trademarks, case of CMC color difference measurement in the printing industry.

2) Application in paint and coating industry: application cases in powder coating industry.

3) Application in the food industry: application cases in shrimp quality grading.

Application

The application fields of CS-660 Spectrophotometer are: plastics, paint, printing, food, textile, printing and dyeing and other fields.

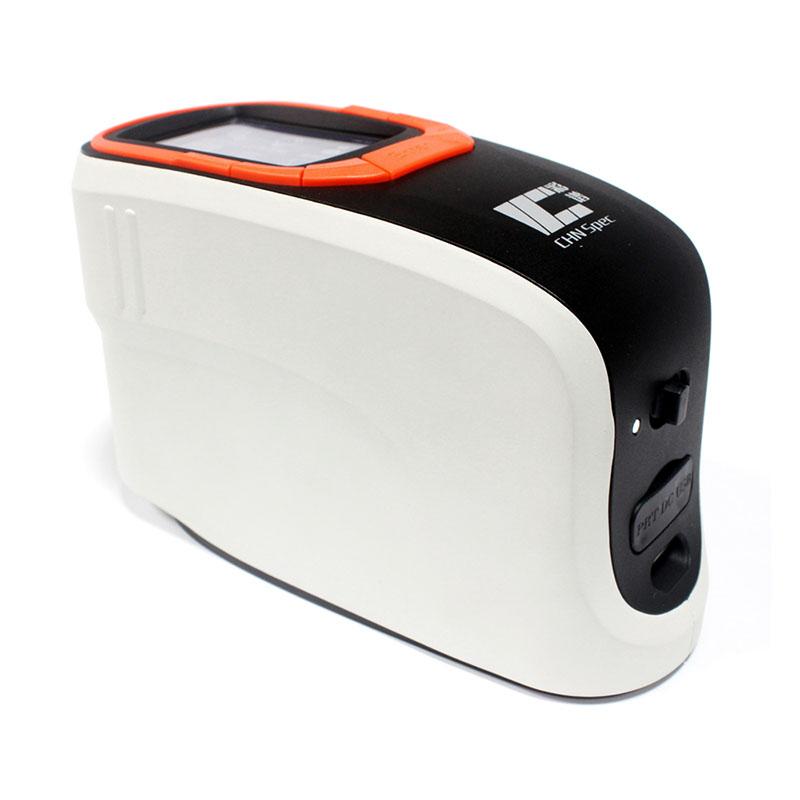

Actual picture of the product

Diagram of product accessories

Features of CS-660A/B Spectrophotometer

1. CS-660A/B Spectrophotometer adopts the internationally accepted D/8 (integrating sphere diffuse illumination, 8° observation angle) SCI/SCE compatible illumination observation conditions

The CS-660A/B Spectrophotometer adopts the D/8 condition, which is widely used in the world, and is suitable for color matching in various industries and quality control in coatings, textiles, plastics, food, building materials and other industries. The 45/0 condition, which is simple in structure but rarely used, is not used.

2. The longest warranty time of similar instruments

The combination of technologies gives us the confidence to offer our customers the longest warranty in the industry: a three-year warranty.

3. Standard color analysis software

Color spectrum CS-660A/B Spectrophotometer comes with color management software, which is suitable for quality monitoring and color data management in various industries. Digitize the user's color management, compare the color difference, generate a test report, provide a variety of color space measurement data, and customize the customer's color management work.

4. National metrology verification report

Each CS-660A/B Spectrophotometer has been verified and tested, and each CS-660A/B Spectrophotometer is sent to a credible department for metrological verification after leaving the factory, and the measurement data is traced back to the National Institute of Metrology to ensure the credibility of the instrument test data.

5. Complete measurement light source and chromaticity index in the same kind of Spectrophotometer

The color Spectrophotometer provides a complete range of nearly 28 standard light source test conditions and nearly 40 measurement color indicators in the same instrument, and can customize test methods according to your needs to meet all your testing needs.

6. Camera framing, which can clearly observe the measured area

In the past, the measuring instrument could only roughly prepare the measured area by visual vision, which was prone to deviation during measurement, but Color Spectrum Technology has set up a camera framing inside the optical system of the Spectrophotometer , which can allow the user to clearly observe the tested area and prevent measurement deviations.

7. Optional color matching software to quickly find out the color composition

This color matching software is widely used in coatings, plastics, inks, pigments, textiles, printing, papermaking, glass, cosmetics, dental care and color and other related industries. The software provides a complete color management platform, including color matching, correction archiving, formulation, and quality control functions. According to the customer's actual product application and workflow, CHNSpec provides customers with a color management solution that is more suitable for practical application. Computer-optimized recipe calculations help customers avoid excessive pigment use and more intuitively display pigment recipe ratios, saving costs and time.

The innovative technology of the CS-660 Spectrophotometer

1. CLEDs light source - full-band balanced LED light source is used to ensure the accuracy of the instrument's measurement results

The full-band balanced LED light source ensures sufficient spectral distribution in the visible range, avoids the spectral loss of white LED in a specific band, and ensures the accuracy of instrument measurement speed and measurement results, the research results were published in the domestic (CN) good SCI-indexed optical journal "Chinese Opics letters"

2. ETC real-time calibration technology

At present, the color measuring instruments are equipped with an external standard whiteboard as the measurement reference of the instrument. When the whiteboard is defaced, there is no guarantee of the accuracy of the instrument's measurements. In the color Spectrophotometer products, the innovative ETC real-time calibration technology (Every Test Calibration) is adopted, and the standard whiteboard is set inside the optical system, and it has reliable accuracy and repeatability in each test.

3. Automatic gloss compensation technology

The different gloss of the material surface and the illumination observation conditions of the color measuring instrument can have a great impact on the color measurement. Colorspectrum Technology broke the blockade of foreign technology, and proposed automatic gloss compensation technology earlier in the industry to ensure the accuracy of color measurement data of different gloss surfaces, and the research results were published in the foreign good optical SCI journal "OPTIK".

4. Innovative spectroscopic technology SCS optical engine

Colorspectrum Technology uses the innovative single-grating dual-beam splitting system - SCS optical engine to create the highest measurement repeatability in the handheld Spectrophotometer industry, ensuring accurate measurement of material surface color.

Packing list：Host x1, power adapter x1, lithium battery x1, manual x1, Color management software x1, driver software x1, manual electronic version x1, Color management tutorial x1, data cable x1, black and white correction cylinder x1, protective cover x1, wristband x1, portable bag x1, Electronic Formula Guide x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
