IWAVE WF32-16mm Colorimeter CHINA Colorimeter 16mm

WF32-16mm

Colorimeter

Color simulation function, with eight Color difference formula, 18mm large diameter measurement, repeability accuracy < 0.03, built-in whiteboard automatic correction, a variety of Light sources and Color space.

Introduction

The internal components of IWave WF32-16mm color difference Tester are imported high-quality imported products, which greatly improve the stability and accuracy of measurement, and are easy to operate. Many domestic (CN) color difference Testers have 1 or 2 light sources, while IWave WF32 series Colorimeters are designed with eight light sources, which increases the application range of measurement.

IWave WF32-16mm color difference measuring instrument has three measuring apertures of 16mm. Compared with WF30 series color difference measuring instrument, it has added three display modes: CIELUV, HunterLAB, sRGB, △ECMC, △EISO, △ECIE94, △EFCMⅡ, △ELuv, △Ehunter, △EsRGB color difference formula, accurate and stable measurement, easy to operate.

Among them is a general-purpose color difference Tester, which comprehensively considers the general methods and applicable habits of color detection in various industries, and considers the requirements of various materials for the measurement caliber when measuring. It provides great convenience and reliable reliability for all walks of life to carry out color communication in their own industry and across industries.

Product Application

IWave WF32-16mm color difference Tester is suitable for measuring color difference in coatings, paints, printing, rubber, leather, glass, toys, building materials, textiles, home appliances and other fields.

The difference between the three measuring calibers

IWave WF32-16mm color difference Tester has a measuring aperture of 16mm and a large measuring aperture. Generally, it can be selected for products with texture, pitting or strong surface graininess on the surface of the measured object, soft material or large size of the measured object. WF32-16mm color difference measuring instrument. In addition, if the object with a wet surface uses a 16mm caliber, it must have a glass protection plate to prevent internal contamination.

Features

Intuitive and easy to operate

2.8-inch color screen is adopted: the font is large and the display is clear. Chinese Colorimeter

Operation key surface: simple and clear, you can see it at a glance.

Display technical parameter coordinate diagram, with color simulation, very intuitive.

automatic, high precision

Built-in whiteboard: It can be calibrated by itself without manual calibration, which is fast and convenient, and will not cause the trouble of inaccurate calibration due to contamination of the whiteboard.

Measuring port positioning function: more direct and accurate positioning. Some instruments use windows for positioning, which is inconvenient, while others use cameras for positioning. However, excessive exposure and inaccurate focus make it difficult to see the target, and the start-up requires a lot of power consumption, resulting in abnormal measurement data.

High precision: The repeatability is up to 0.05, most of which are between 0.01 and 0.03. It is very close to the LAB value of the Spectrophotometer , and most of the values are consistent. The color difference values are basically the same.

professional, practical

Multiple patents

A variety of measurement modes, there are three calibers to choose from, the small caliber is 4 mm, which can measure curved surface and small area products, and the 16 mm caliber can measure striped cloth, leather and wood products, with five color spaces. Eight color difference formulas, eight light sources.

IWave WF32-4mm/8mm/16mm domestic (CN) color difference measuring instrument is a portable design, the body is more stable, there will be no light leakage during measurement, and the measurement data is more accurate and reliable.

Power supply: You can use a power adapter, as well as a high-capacity polymer battery, which can be used for 6000 to 8000 times on a single charge.

The appearance is generous and beautiful, the lines are graceful, and the colors are calm.

IWave WF32-16mm Colorimeter is moderate in size and weight, not as heavy as imported Colorimeters, and heavier than other domestic (CN) brands. It feels very good in the hand.

Customization is accepted: the color difference Tester can be customized according to the requirements of customers. Also provide color measurement solutions.

Pictures

sgs trusted identification

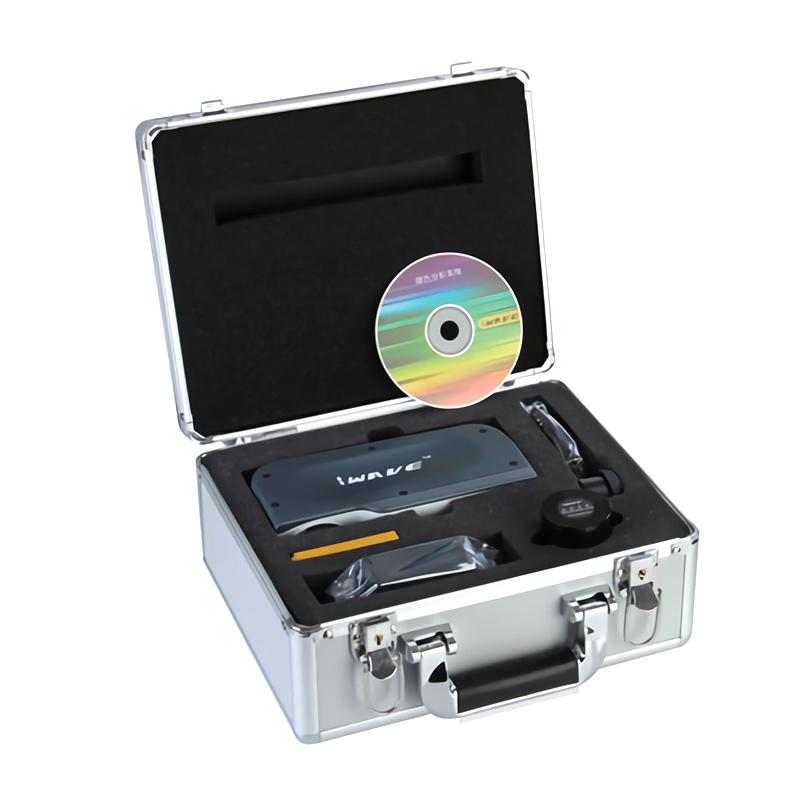

Packing list：Host X1, White Calibration plate X1, Data cable X1, Manual X1, Warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
