TIMEPOWER TP3117 Desktop multiparameter analyzer COD ammonia nitrogen, total phosphorus, total nitrogen turbidity suspended solids

TIMEPOWER TP3117 desktop multiparameter analyzer can quickly determine COD, ammonia nitrogen, total phosphorus, total nitrogen, turbidity, SS (suspended solids) and other parameters in enterprise wastewater. Measurement range COD 5-10000 mg/L, ammonia nitrogen 0.01-50 mg/L, total phosphorus 0.02-20 mg/L, total nitrogen 0.5-100 mg/L, turbidity 0.5-1000 NTU, suspended solids 5-500 mg/L.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

TIMEPOWER TP3117 Desktop multiparameter analyzerSPEC

TIMEPOWER TP3117 Desktop multiparameter analyzerDetails

TIMEPOWER TP3117 Desktop multiparameter analyzerPacking list

SKU
NB038333
Measurement range
COD 5~ 10000mg/L; ammonia nitrogen 0.01~ 50mg/L; total phosphorus 0.02~ 20mg/L, total nitrogen 0.5~ 100mg/L; turbidity 0.5~ 1000 NTU; suspended solids 5~ 500mg/L
Digestion environment
COD 165 ℃, 15min, total phosphorus 125 ℃, 30min, total nitrogen 125 ℃, 30min
error of indication
≤±5%
Repeatability
≤5%
anti-chlorine interference
≤2000mg/L（COD）
Colorimetric method
Digestion Colorimetric Tube
Data storage
30,000 records, 96 Linear dispersion (support user-defined calibration)
transmission method
USB cable, LAN, etc
printer
Built-in thermal printer
Operating interface
Chinese/English (optional)
Display
5.0-Inch color LCD screen
Power Supply
AC(220±22)V；（50±0.5）Hz
Power
5W
Environmental temperature
5~40℃
Working Relative Humidity
≤ 85% non-condensing
Dimension
348mm*250mm*145mm
Weight
2.6Kg (main unit)
TP3117
Desktop multiparameter analyzer

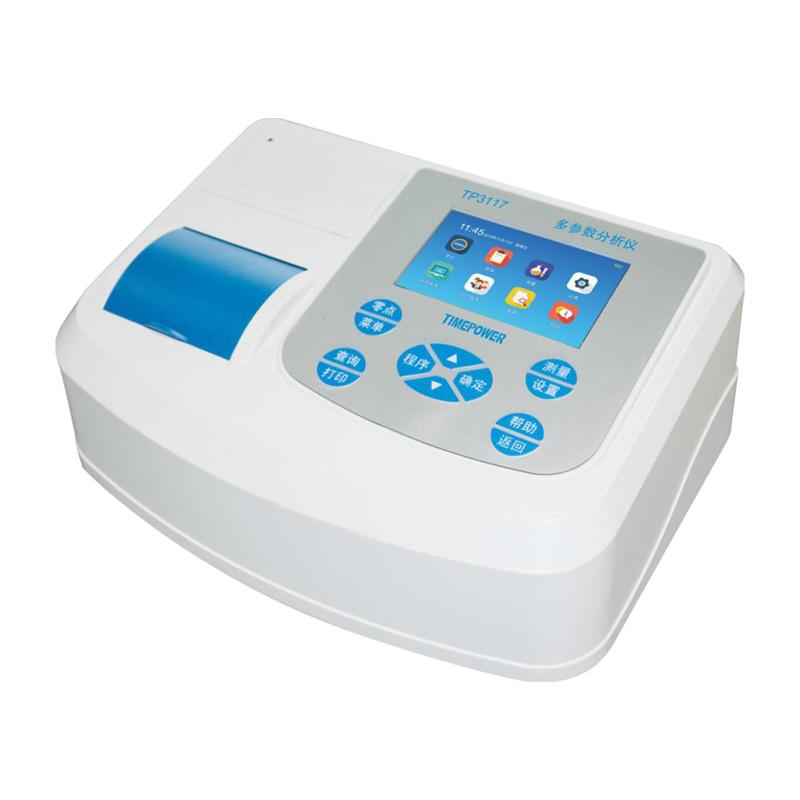

TIMEPOWER TP3117 Desktop multiparameter analyzer COD ammonia nitrogen, total phosphorus, total nitrogen turbidity suspended solids Picture

apply

The TP3117 multiparameter analyzer is a powerful, easy-to-use precision benchtop analytical instrument. It can quickly determine COD, ammonia nitrogen, total phosphorus, total nitrogen, turbidity, SS (suspended solids) and other parameters in enterprise wastewater. It is widely used in emergency monitoring, sewage treatment, chemical industry, wastewater, food, printing and dyeing and other industries wastewater detection, and can also be applied to wastewater research in scientific research units, colleges and universities.

principle

The instrument uses the principle of photoelectric colorimetry for measurement. According to the Lambert-Beer law: when a beam of monochromatic parallel light passes through a colored solution, a part of the light energy is absorbed by the solution, and if the thickness of the liquid layer remains unchanged, the degree of light energy absorbed is directly proportional to the concentration of colored substances in the solution.

Features

  • Large-screen LCD display, key operation, direct data reading, simple and time-saving operation.

  • It adopts imported cold light source, with good optical performance and a service life of up to 100,000 hours.

  • You can choose between standard or continuous measurement modes for speed and accuracy.

  • The digestion colorimetric tube is used to make the measurement simple, fast and safe.

  • Built-in printer for printing current data and historical measurement data.

  • Memory standard working curves and 96 user-defined curves, which can store 30,000 pieces of detection data. It has the functions of data storage and power-off protection to prevent data loss and facilitate the query of historical measurement data.

  • It is equipped with special detection reagents to reduce user operation as much as possible and make the detection more accurate.

  • The price of consumables is low and the amount is small.

  • It supports network port and USB interface, and can transmit data with PC or printer.

Precautions

1. In order to improve the accuracy of detection, the interaction of samples during testing should be reducedThe cap should be fixed to reduce errors caused by operation.

2. According to the concentration value of the measured sample, the corresponding standard curve should be selected.

3. Because the oxidant contains chloride ion masking agent, there may be a small amount of precipitation after digestionThe tube will not float up the sediment and cause deviation in the results.
