GB/T 9756 Paint Film Automatic Coating Machine with Vacuum chuck Polyester film finish coating board

TBJ-A3-XB（GB/T 9756）

Automatic Film Applicator

Meet GB/T 9756 standard preparatory polyester film finished coating sample, bar + Vacuum chuck two-in-one, with high-precision imported bar; Spreader size 300 * 400mm; touch screen operation, baseplate is aluminum alloy.

product description

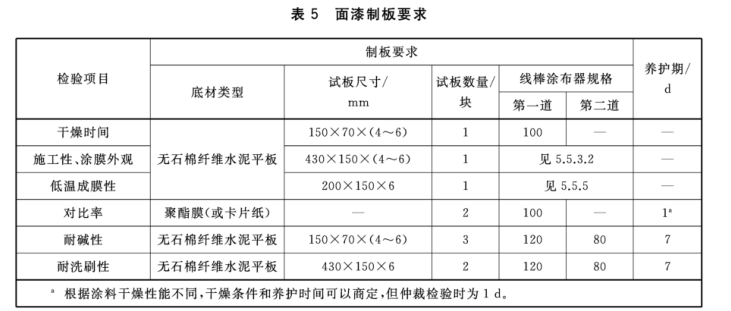

The national GB9756 standard stipulates that during the arbitration inspection of the contrast ratio and scrub resistance items, the paint film automatic coating instrument should be used to make the board, the maximum coating stroke should not be less than 375 mm, and 500 g weights should be loaded at both ends of the wire rod , set the running speed of the wire rod to 100 mm/s when making the board, and start the vacuum adsorption device attached to the paint film automatic coating instrument when making the board for the contrast ratio project, so that the polyester film is flat and close to the surface of the coating table.

This paint film automatic coating machine is specially used for the preparation of GB/T 9756 standard paint film samples . It has the function of vacuum adsorption, and can adjust the speed steplessly between 1~200mm/s, which can ensure the smooth adsorption of polyester film, and is equipped with High-precision imported wire rods ensure the accuracy of the sample preparation, and the coating size is 300x400mm. NBCHAO automatic film coating instrument has been favored by many research and development institutions and colleges and universities.

This automatic coating machine comes standard with 3 imported wire rods with a precision up to 1μm.

Optional

Packing list：Film Applicator X1, imported x1, 200g weight x2, 500gx2, 1000gx2, external vacuum pump X1, product manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
