Brand：HuXi
Model：HF-2L

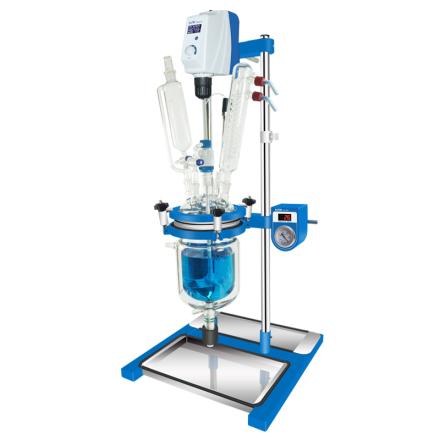

Name：Variable Frequency Speed Regulation Glass Reaction Kettle
Specifications
| Effective Volume in kettle | 2L |
| Kettle body jacket Volume | About 0.6L |
| Condenser condensation area | About 0.025 ㎡ |
| Constant pressure funnel Volume | 200ml |
| Cover size | 180MM |
| Container size | 150MM |
| Number of kettle cover openings | 5 |
| Stirring insertion hole | 24 #standard grinding mouth |
| Insertion hole of temperature transducer | 24 #standard grinding mouth |
| Condenser Connector | 24 #standard grinding mouth |
| Liquid feeding port | 19 #standard grinding mouth |
| Constant Voltage funnel interface | 24 #standard grinding mouth |
| Glass components | High Borosilicate Glass 3.3 |
| Kettle Body Operating Temperature | -80~200℃ |
| Limit of temperature difference between inside and outside the kettle body | ≤80℃ |
| Pressure in kettle | -0.1~0.0MPa |
| Jacket pressure | ≤+0.03MPa |
| Vacuum system boost rate | ≤ 2kPa / h |
| Stirring Configuration | RWD50 Top Stir |
| Speed regulation | Crude and fine tuning |
| Speed range | 50~500rpm |
| Speed display | LCD |
| Timer | 1~9999min |
| Stir time settings | Yes. |
| Speed display resolution | ±1rpm |
| Speed memory | Yes. |
| Torque | 70N.cm |
| Viscosity | ≤10000mPas |
| Impeller fixing method | Self-locking chuck |
| Drill chuck clamping diameter range | 0.5~10mm |
| Overload protection | Display fault, stop automatically |
| Motor protection | Display fault, stop automatically |
| Motor rated power | 70W |
| Impeller | PTFE four-blade stirringrod diameter 8mm length 650mm |
| Temperature transducer type | Pt100 |
| Temperature display Accuracy | ±0.1℃ |
| Seal material | PTFE |
| Discharge valve installation height | 100-210mm (adjustable) |
| Discharge method | knob |
| Fixed rod material | stainless steel |
| Impeller Connectivity | self-tightening |
| Operating conditions temperature | 5~35℃ |
| Environment Relative Humidity | ≤ 65% |
| Environment humidity | ≤70% |
| Shell protection grade | IP20 |
| Anti-pollution level | Level 2 |
| Condenser chilled down water interface | 10MM |
| Kettle circulating water interface | 14MM |
| Discharge interface | 20MM |
| Vacuum interface | 10MM |
Packing list
Glass kettle body and kettle cover All Glass kits X1, RWD50 Overhead Stirrer X1, PTFE four-leaf Impeller X1, vacuum pressure gauge & temperature display X1, temperature sensor X1, host bracket X1, front and rear 316 mirror water tray X1, length 1 meter, inner diameter 8 mm vacuum tube X1, length 1 meter, inner diameter 10 mm circulating tube X2, manual X1, certificate X1,
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
