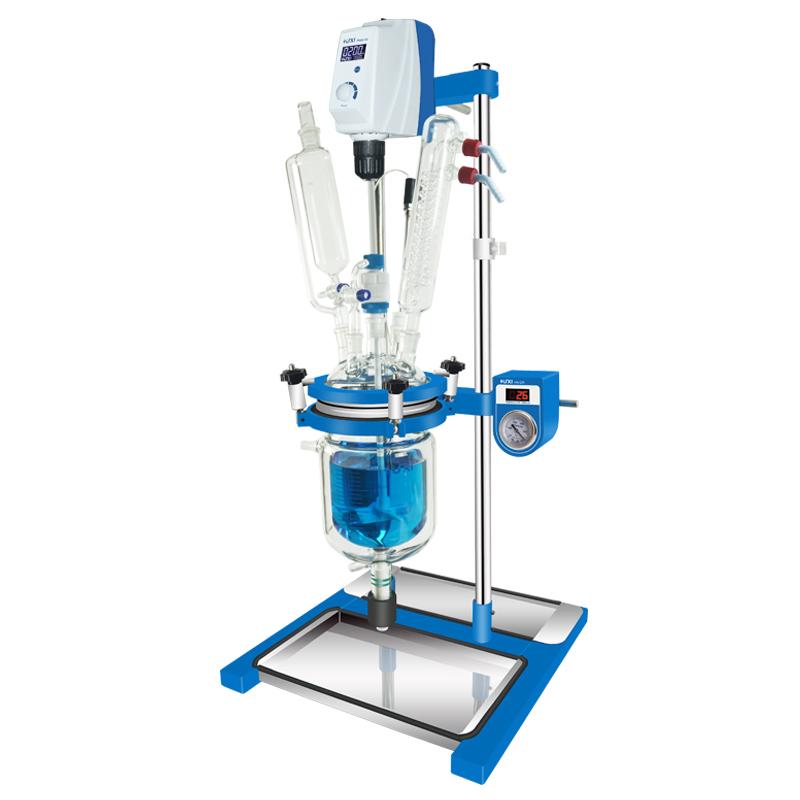

HUXI HF-5L Inverter Speed Regulation Glass Reaction Kettle
SE
HF-5L
HuXi HF-5L Variable Frequency Speed Regulation Glass Reaction KettleSPEC
HuXi HF-5L Variable Frequency Speed Regulation Glass Reaction KettleDetails
HuXi HF-5L Variable Frequency Speed Regulation Glass Reaction KettlePacking list
- SKU
- NB038409
- Effective Volume in kettle
- 5L
- Kettle body jacket Volume
- About 1.5L
- Condenser condensation area
- About 0.025 ㎡
- Constant pressure funnel Volume
- 200ml
- Cover size
- 180MM
- Container size
- 150MM
- Number of kettle cover openings
- 5
- Stirring insertion hole
- 24 #standard grinding mouth
- Insertion hole of temperature transducer
- 24 #standard grinding mouth
- Condenser Connector
- 24 #standard grinding mouth
- Liquid feeding port
- 19 #standard grinding mouth
- Constant Voltage funnel interface
- 24 #standard grinding mouth
- Glass components
- High Borosilicate Glass 3.3
- Kettle Body Operating Temperature
- -80~200℃
- Limit of temperature difference between inside and outside the kettle body
- ≤80℃
- Pressure in kettle
- -0.1~0.0MPa
- Jacket pressure
- ≤+0.03MPa
- Vacuum system boost rate
- ≤ 2kPa / h
- Stirring Configuration
- RWD50 Top Stir
- Speed regulation
- Crude and fine tuning
- Speed range
- 50~500rpm
- Speed display
- LCD
- Timer
- 1~9999min
- Stir time settings
- Yes.
- Speed display resolution
- ±1rpm
- Speed memory
- Yes.
- Torque
- 70N.cm
- Viscosity
- ≤10000mPas
- Impeller fixing method
- Self-locking chuck
- Drill chuck clamping diameter range
- 0.5~10mm
- Overload protection
- Display fault, stop automatically
- Motor protection
- Display fault, stop automatically
- Motor rated power
- 70W
- Impeller
- PTFE four-blade stirringrod diameter 8mm length 650mm
- Temperature transducer type
- Pt100
- Temperature display Accuracy
- ±0.1℃
- Seal material
- PTFE
- Discharge valve installation height
- 100-210mm (adjustable)
- Discharge method
- knob
- Fixed rod material
- stainless steel
- Impeller Connectivity
- self-tightening
- Operating conditions temperature
- 5~35℃
- Environment Relative Humidity
- ≤ 65%
- Environment humidity
- ≤70%
- Shell protection grade
- IP20
- Anti-pollution level
- Level 2
- Condenser chilled down water interface
- 10MM
- Kettle circulating water interface
- 14MM
- Discharge interface
- 20MM
- Vacuum interface
- 10MM
Applications
HF-series frequency conversion speed regulating glass reactor is mainly used for the synthesis reaction of materials. By injecting a certain temperature circulating fluid into the interlayer of the reactor, the inner layer of the reactor can react at the required temperature. If necessary, the inside of the kettle can be evacuated to make the material react under negative pressure. The uniform dropping of materials can be controlled by adjusting the regulating valve on the outlet pipe of the constant pressure funnel. Using the heat exchange function of the condenser, the reaction product can be recovered by distillation.
Features
The glass parts are made of high borosilicate glass, which has excellent corrosion resistance and high-low temperature resistance. At the same time, the linear expansion coefficient is low and can withstand large thermal shock;
Removable, no dead space discharge valve, easy to discharge reactor materials;
Standardized connection method, convenient and quick disassembly;
The temperature and vacuum test unit is convenient to accurately grasp the temperature and vacuum degree in the kettle;
In the vacuum state, the negative pressure can reach 0.095MPa;
Top-mounted agitator and equipped with imported agitating bearing sleeves;
All parts in contact with liquid are made of high borosilicate glass or PTFE, which has excellent corrosion resistance;
