Dianyang TA-20 thermal imagery analyzer, resolution 260 * 200/450 ℃

TA-20

Thermal imagery analyzer

260 * 200 resolution, 36 ° X25 ° field of view, NETD is 70mK@25 ℃, temperature measurement up to 450 ℃, data sampling frequency can be flexibly configured, three temperature measurement methods of highest temperature, lowest temperature and average temperature, temperature data can be stored, support Take pictures and videos.

Introduction

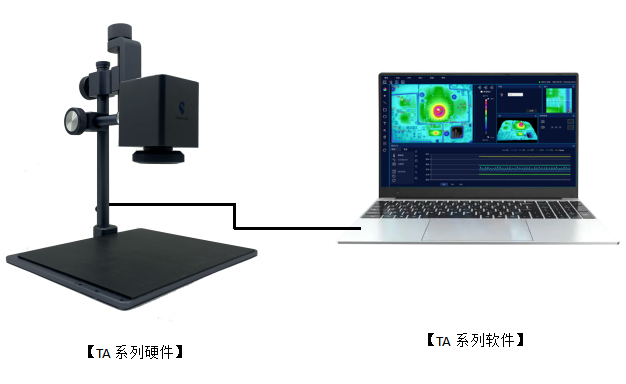

The TA series thermal analyzer uses the principle of infrared detection and imaging to detect and measure the data of the temperature change of the object with time, and can perform unlimited data storage and reliability analysis on the measurement results. TA series thermal analyzer is suitable for thermal field detection such as circuit design, component detection, heat dissipation and heat conduction material detection, electronic smog vaporization, etc.

Features

1. Detection temperature:

• A variety of temperature detection drawing tools: point, line, rectangle, polygon, nine-square map (equal-proportional split map);

• 16 dedicated color palettes for a variety of different applications;

• Detailed inspection in the rectangular frame, suitable for observing local temperature changes in the thermal field;

• Various detection methods of temperature width: dynamic temperature width, highlighted high temperature area, isotherm;

• Multiple temperature data display: high temperature, low temperature, average temperature;

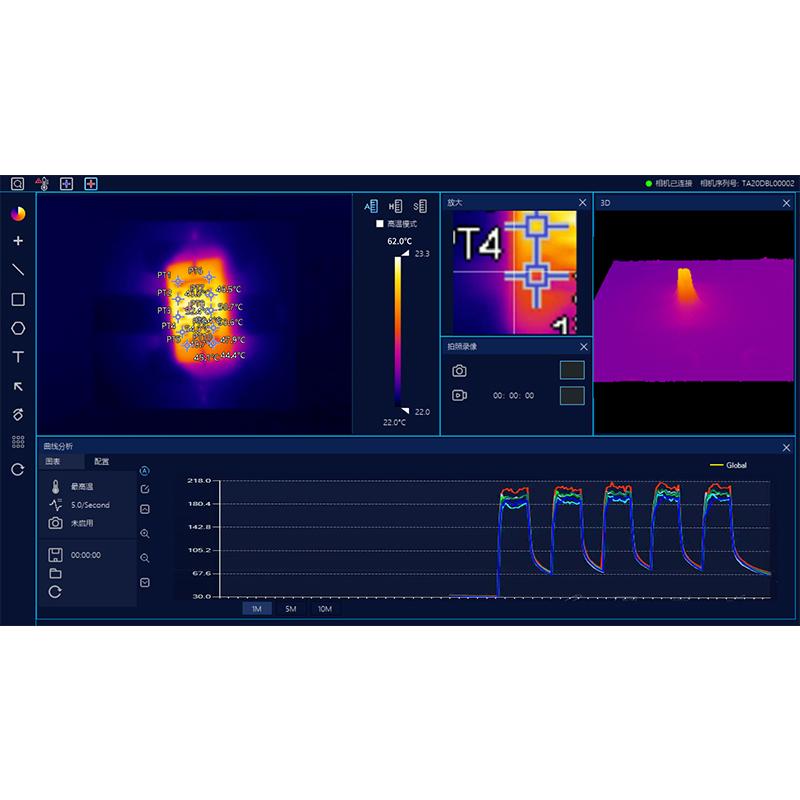

• A variety of temperature change curve display: global temperature, 40 point temperature measurement, 20 regional temperature measurement;

2. Store temperature data:

• Record temperature data and information indefinitely, save in CSV format;

• The temperature sampling frequency can be flexibly configured, 50ms, 100ms, 200ms...1s;

• When the temperature threshold is exceeded, it can automatically take pictures and save them, which is suitable for offline analysis;

• Support manual photo taking and video recording.

3. Analyze infrared thermal imaging data:

• Online temperature analysis, real-time analysis of temperature changes at each point on the line;

• Curves can be used to display the measured temperature data in real time, and support multi-period display: 1 minute, 5 minutes and 10 minutes;

• Data analysis in CSV format, suitable for offline analysis;

• Infrared thermal image offline analysis;

• Multi-dimensional comprehensive analysis of infrared thermal images, time, and temperature changes;

• The isotherm analyzes the temperature and heat field in layers;

Applications

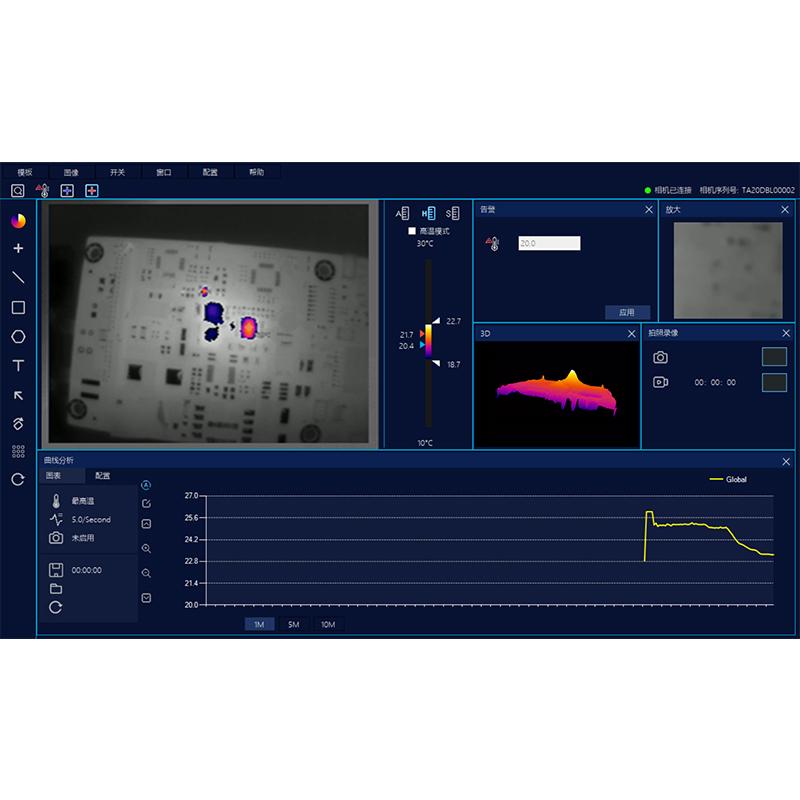

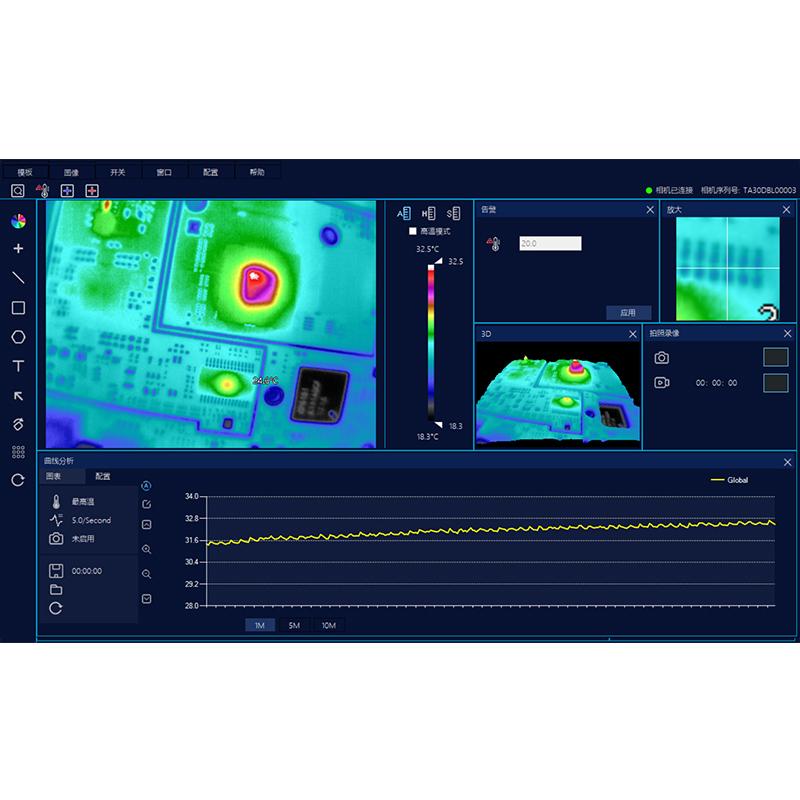

1. Application of TA thermal analyzer on PCBA

• Every high temperature point on the circuit board may affect the performance of other devices or products. The thermal analyzer can solve the detection problem of temperature and temperature change process for users such as R&D and production.

• Multi-area measurement, suitable for module testing in each area of PCBA;

• Working temperature range: -10°C~+55°C, measurement range: -10°C~550°C, suitable for circuit board measurement in multiple scenarios;

• High temperature, high brightness and wide temperature detection, quickly capture the high temperature of the circuit board;

• High temperature alarm, photo, video and other functions are used to analyze the working process of the circuit board;

2. Thermal analysis of heat dissipation and heat conduction materials

• In the use and research and development of raw materials, Dianyang TA series thermal analyzer can conduct temperature detection and thermal analysis on the heat conduction, heat dissipation and uniformity of materials.

• Multi-color board function, each color board has different focus on color and temperature color difference, which is suitable for analyzing various materials;

• Isotherm, which can fix the temperature bar and color according to a variety of temperature ranges, is an important tool for users to perform thermal analysis on materials;

• Massive actual temperature measurement data from 40 points and 20 areas to detect material heating uniformity;

• Online distribution function, real-time detection of heat conduction characteristics of materials;

• 50mk temperature measurement accuracy, detecting thermal conductivity changes of thermally conductive materials;

3. Development and design of electronic smog gas

• In the quality of e-cigarette products, the temperature control capability is a very important indicator, which determines the efficiency of the atomizer in atomizing the e-liquid and has a great impact on the taste.

• Customize and adjust the simulated suction force, duration and frequency of the suction pump, analyze the temperature change trend with the curve, and assist in the selection of product design schemes;

• Simple assembly method, batch detection of working tolerance range of resistance heating wire;

• Automatically draw an equal-proportion split map, which can detect the temperature of multiple products at the same time;

• Flexible data sampling frequency, complete observation of the heating and cooling process, 50ms, 100ms, 200ms... 1s;

• The 3D mode detects the instantaneous or small changes of the product, supplementing the 2D function;

• The uniformity measurement function of the heating surface can visually observe the heating uniformity during atomization heating.




Software application range

• PCBA leakage, short circuit, open circuit location and detection maintenance;

• Comparative evaluation of mobile phones or other smart devices;

• Auxiliary analysis of electronic equipment performance;

• Temperature control of electronic vaporizer;

• Temperature conduction analysis of heat conduction and heat dissipation materials;

• Material homogeneity analysis;

• Heat generation experiment in circuit design, thermal simulation, verification of heating rationality;

• Product heat dissipation capability testing;

• Evaluation and comparison of equipment heating conditions

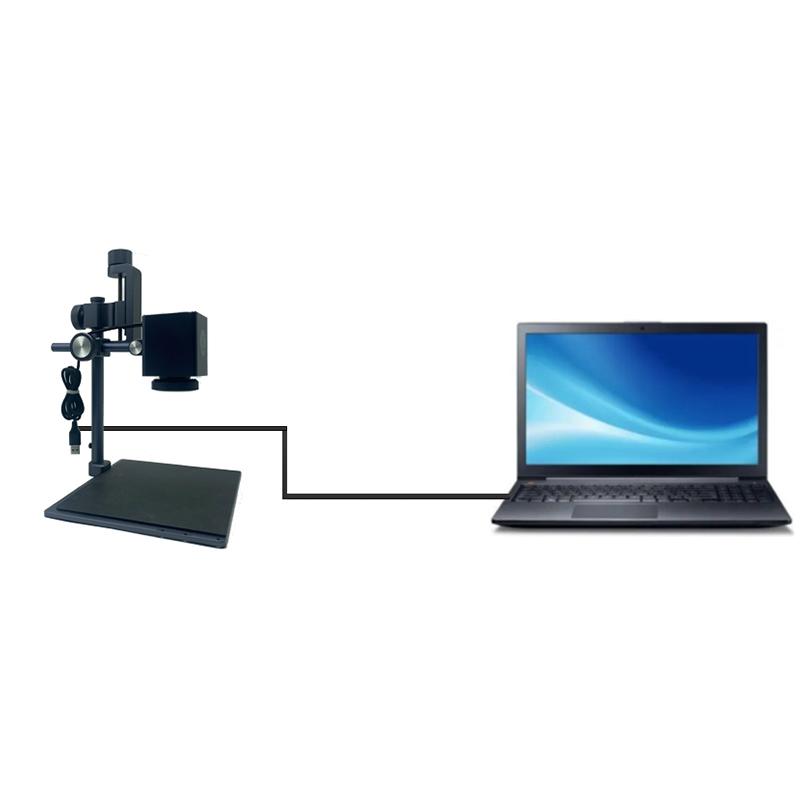

System Requirements

Computer operating system: Win10 and above operating system;

Minimum computer configuration: CPU i5 and above, minimum 4G memory, 8G or more recommended; if you need to test a large amount of data, save applications and 3D temperature, it is recommended to use i7 CPU (or the same grade AMD CPU), memory 8G or more;

The computer needs to install the Microsoft Visual C++ Redistributable (2005-2019) patch, otherwise the software will not work;

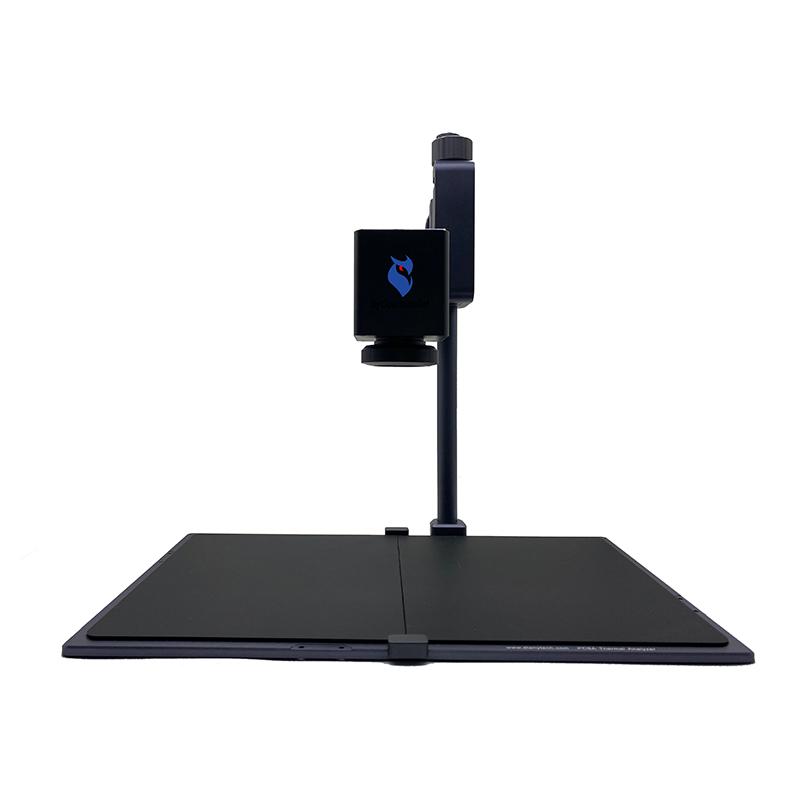

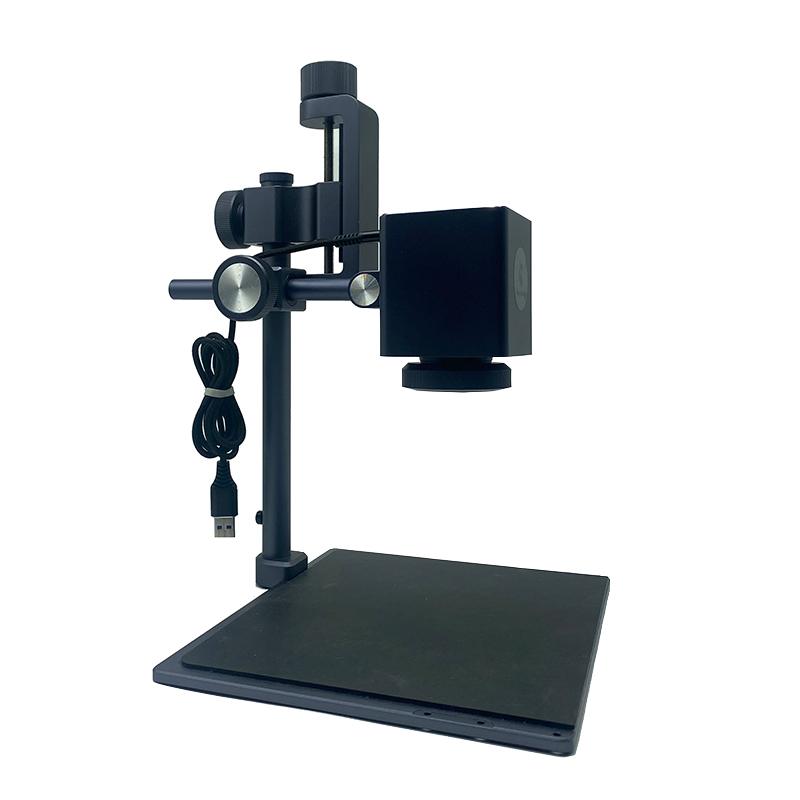

Packing list：Resolution 260 * 200 Thermal Analyzer lens X1, anti-static support frame X1, thermal analysis software X1, table X1, hexagon screws X4, hexagon wrench X1, simple manual X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
