Specifications
| IR resolution | 640*512 |
| Light spectrum range | 8~14μm |
| NETD | <50mK@25℃ |
| Field of view | 45.75°×37.3° |
| frame rate | 25Hz |
| Focus method | manual focusing |
| Operating temperature | -10~55℃ |
| Temperature Measurement Range | -10~550℃ |
| Temperature measurement method | Maximum temperature, minimum temperature, average temperature |
| Accuracy | ±2℃/±2%/±3% |
| Measurement distance | 40~2000mm |
| temperature correction | Manual/Automatic |
| emissivity | 0.1~ 1.0 adjustable |
| Frequency of data sampling | 15 sampling times per second |
| image file | Full temperature JPG thermogram (Radiometric-JPG) |
| video file | MP4 |
| Veneer size | 220Mm x 172mm, Height 241mm |
| Double board size | 346Mm x 220mm, height 341mm with splicing plate and extension rod size |
| Data collection accessories | Not included in the standard configuration |
| Heating station | Standard 2 resistance heating wires can be filled with oil test holes, which can be customized; custom adjust the simulated mouth suction force, duration and times of the suction pump |
| data collection | Record temperature data without time limit, including temperature change data, data corresponding to resistance heating wire and resistance value, data corresponding to simulated Power Supply time and temperature, and calculation of heating uniformity |
Packing list

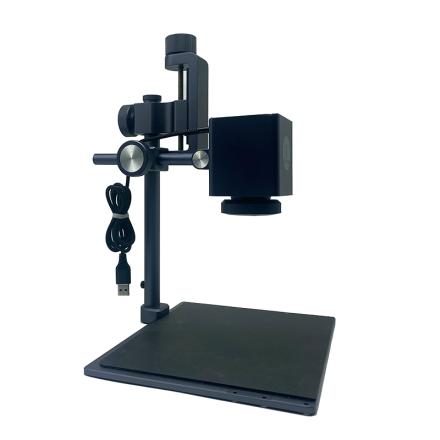

Resolution 640 * 480 Thermal Analyzer lens X1, anti-static support frame X1, thermal analysis software X1, table X1, hexagonal screws X4, hexagonal wrench X1, simple manual X1, certificate X1
After-sales instructions
Warranty days: 365 days
