CSB Zahn Cup YONGLIDA No. 4 Zahn Cup

Viscosity range 200~1200cSt, flow hole diameter 4.26mm, capacity 44ml, cup body material stainless steel, filter material stainless steel, handle material stainless steel, Applicable standard ASTM D4212, Environmental temperature 25 +/- 0.2 ℃, correction factor 0.95~ 1.05.

$127.00/piece

PromotionLoading...

Coupon

Model：

CSB-4

Certificate

YongLiDa

Manufacturer authorization

Contact

Details SPEC Con CAT

YongLiDa CSB-4 Zahn Cup (Immersion)SPEC

YongLiDa CSB-4 Zahn Cup (Immersion)Details

YongLiDa CSB-4 Zahn Cup (Immersion)Packing list

SKU: NB003845

Viscosity range: 200~1200cSt

Flow hole diameter: 4.26mm

Capacity: 44ml

Cup body material: stainless steel

Filter material: stainless steel

Handle material: stainless steel

Applicable standard: ASTM D4212

Environment temperature: 25±0.2℃

Correction factor: 0.95~1.05

CSB-4

Zahn Cup (Immersion)

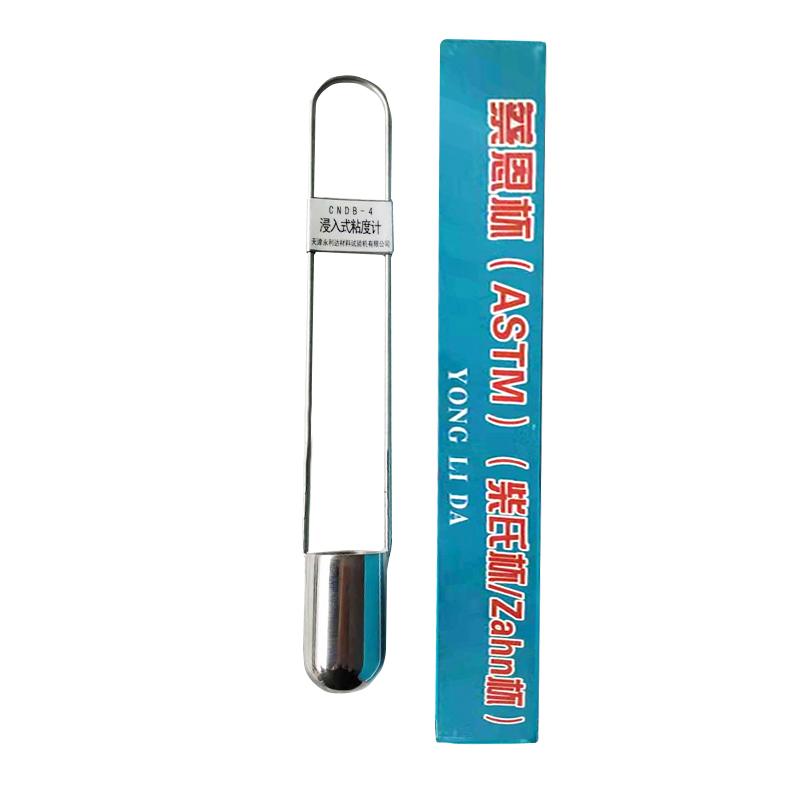

CSB Zahn Cup YONGLIDA No. 4 Zahn Cup Picture

Introduction to CSB ZAHN Cup

Yonglida CSB ZAHN Cup is a portable, immersion type Viscosity Cup, also known as Chai's cup, CSB-2 is a ZAHN Viscosity Cup with an outflow aperture of 2.74mm . The CSB ZAHN Cup complies with the provisions of ASTM D4212-93 "Standard Test Method for Immersion Viscosity Cups", and is used to test the viscosity of Newtonian or near-Newtonian liquids.

CSB series model

model	cup number	Aperture	Measuring range
CSB-1	1	2	5~60
CSB-2	2	2.74	20~250
CSB-3	3	3.76	100~800
CSB-4	4	4.26	200~1200
CSB-5	5	5.28	400~1800
Unit: mm, cSt
Other parameters
Cup volume	44ml
Correction factor	(0.95~1.05) 25℃±0.2℃

FAQ

QWhat is the wall thickness of this No. 4 Zahn Cup?

A 4 mm.

QDo you have the Zahn cup required by the ASTMD4212 standard?

A This CSB-4 Zahn cup will do.

QIs this a 4mm diameter Zain cup?

A Hello, yes, the outflow aperture is 4.26mm.
