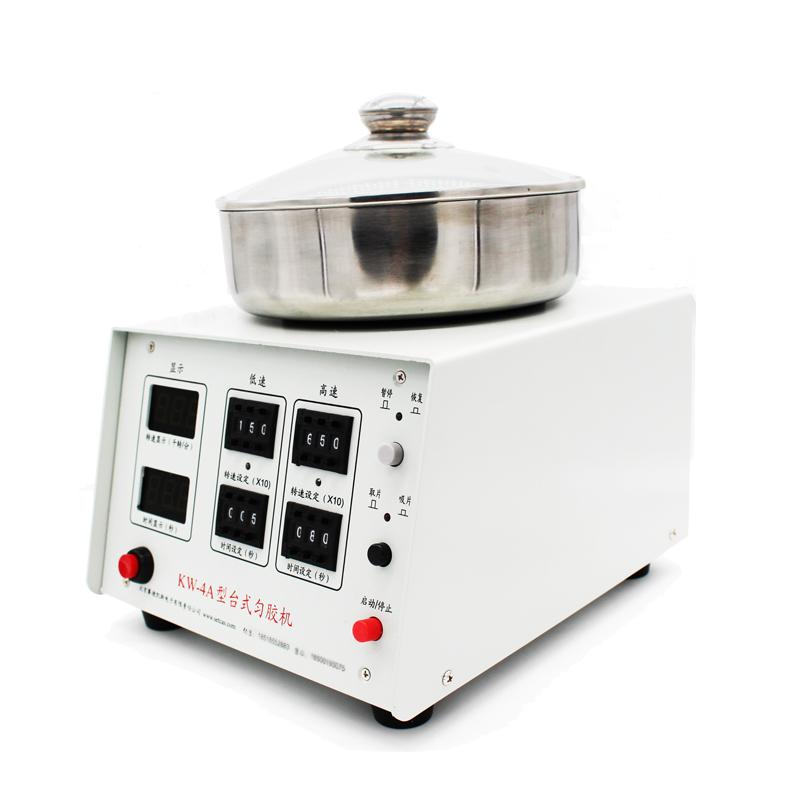

SETCAS KW-4A Spinning coater Manual

KW-4A

Glue leveler

500~8500rpm, 0~999s glue leveling time, dual LED digital display, button interlock to prevent flying, panel control pump switch, with countdown display function, including Vacuumpump, 3 sample trays are distributed

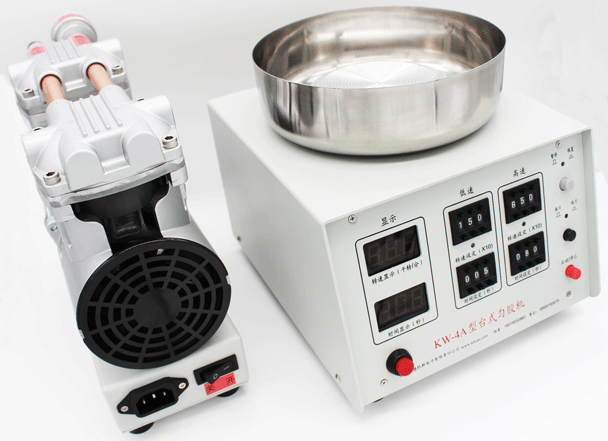

KW series glue coater is suitable for the surface coating of semiconductor silicon wafers, glass slides, wafers, substrates, ITO conductive glass and plate making. This product has the advantages of stable speed and quick start, and can ensure the consistency and uniformity of the glue thickness in the semiconductor material. It is usually used together with an oil-free Vacuum Pump.

Features

It has the function of protecting glue from the motor;

Digital buttons, convenient and accurate setting of speed and time;

Increase the key interlock function to prevent misoperation of flying pieces;

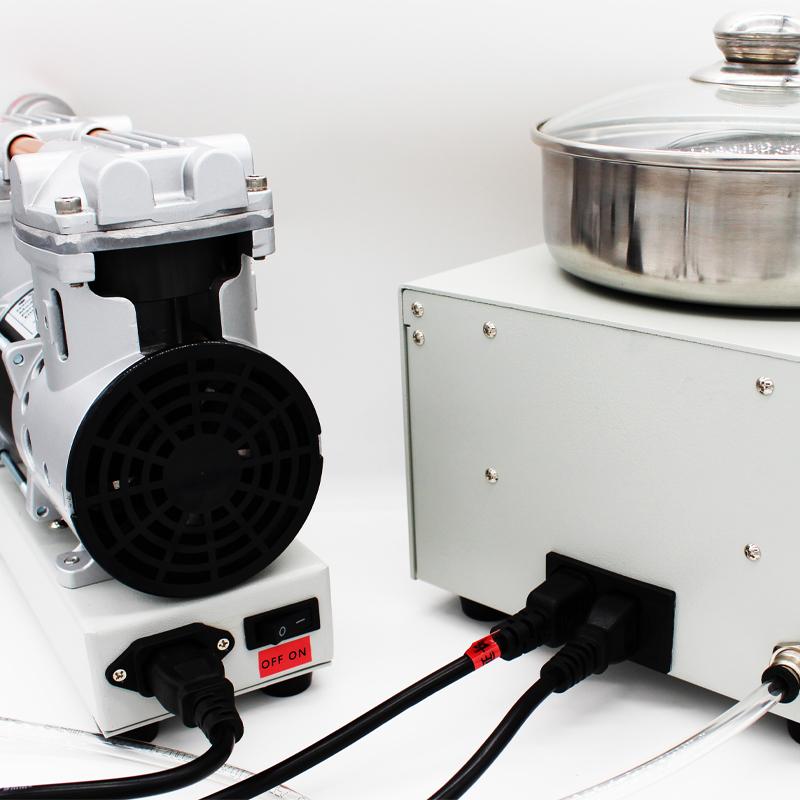

The oil-free pump control switch is added, the pump start and stop control is convenient, and the heat generation and noise of the pump are effectively reduced.

performance parameter

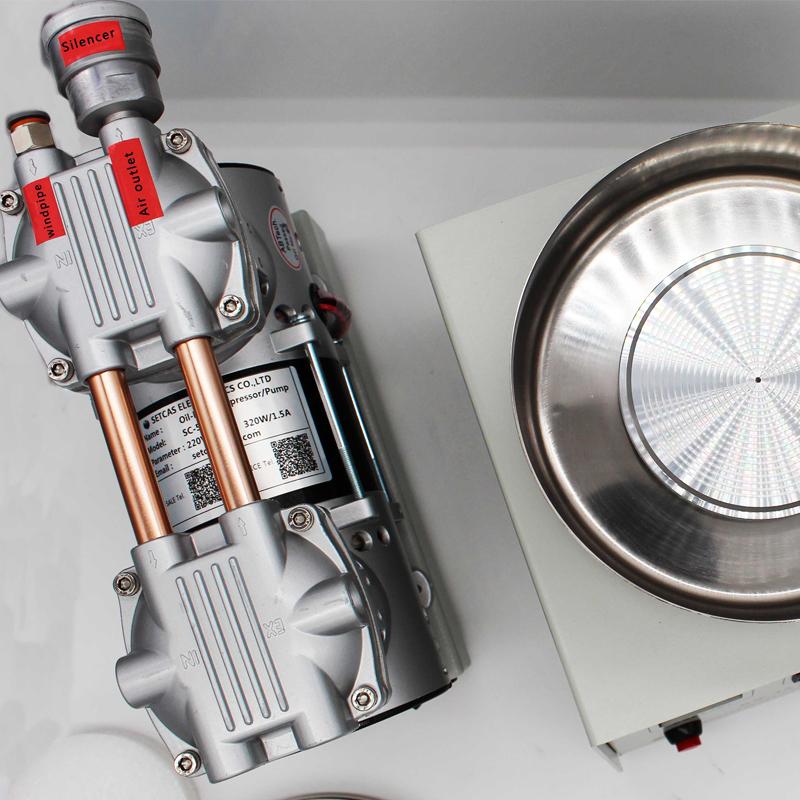

· The power of the homogenizer is 100W, the homogeneity of the glue is ±2%, the power of the mechanical pump is 350W, and the pumping speed is ≥60L/MIN;

· Motor closed-loop control, speed can be set in two gears, high speed range: 1000-8500RPM, low speed range: 500-8500 RPM;

Two gears of motor running time can be set, high-speed time range: 0-999S, low-speed time range: 0-999S;

· Motor speed stability: ±1%, motor timing accuracy: ±20PPM;

Speed display: range 0-9990 rpm, accuracy ±10R/Min, time display: range 0-999S, accuracy ±20ppm;

Wide Voltage application: single-phase AC100-240V input;

· Dimensions: 210mm (W) × 240mm (D) × 180mm (H);

· Product quality: 6.5 KG for homogenizer, 9KG for mechanical pump;

· Applicable substrate: Φ5-Φ100mm round wafer and square wafer.

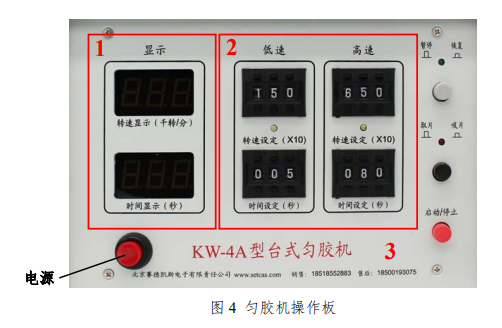

operation panel

1. Display

Speed display (thousand revolutions per minute): Display the current running speed of the motor, that is, the current speed of glue spreading;

· Time display: Display the remaining time of the motor running, that is, the remaining time of dispensing glue.

2. Speed

 Low gear

Speed setting (×10): the running speed setting of the motor in the low-speed section, that is, the speed setting of the glue uniforming in the low-speed section;

· Time setting (seconds): The running time setting of the low-speed section with the glue-spraying speed set, that is, the glue-spraying time setting of the low-speed section.

 High gear

Speed setting (×10): the running speed setting of the motor in the high-speed section, that is, the speed setting of the glue uniforming in the high-speed section;

· Time setting (seconds): The running time setting of the glue spreading speed set in the high speed section, that is, the glue spreading time setting in the high speed section.

3. Button

· Power supply: control the circuit on and off of the whole glue homogenizer;

· Pause/Resume: Control the motor to pause and resume. Pop up the button to pause, press the button to continue (motor speed and remaining glue time remain unchanged);

· Pick-up/suction: control the pick-up and release of the substrate. Press the button to suck the tablet, pop up the button to take the tablet;

· Start/Stop: Control motor start, emergency stop. Press the button to start, press the button again to stop.

KW series homogenizer model comparison

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
