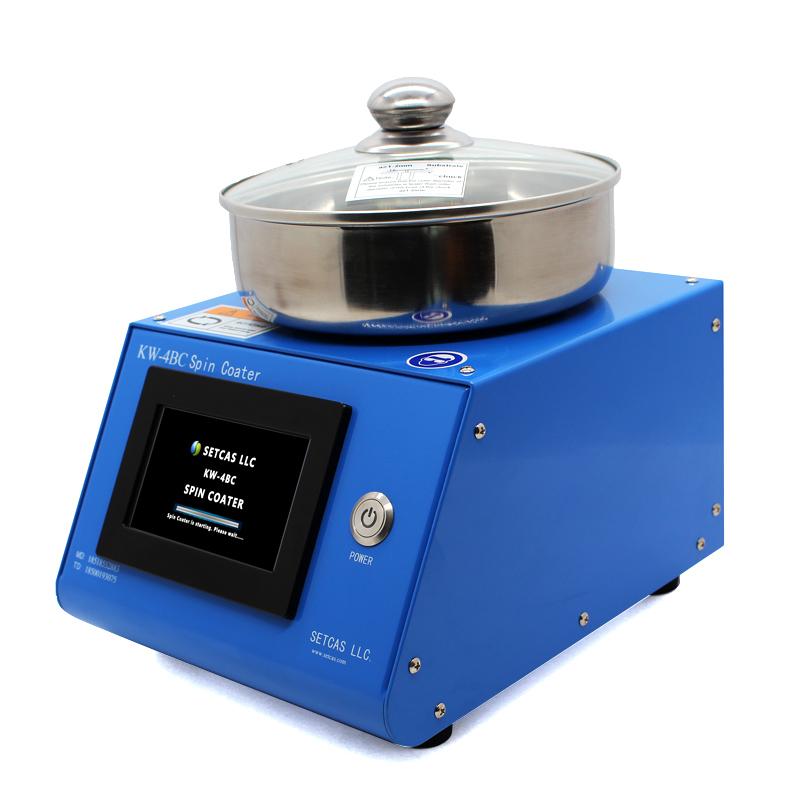

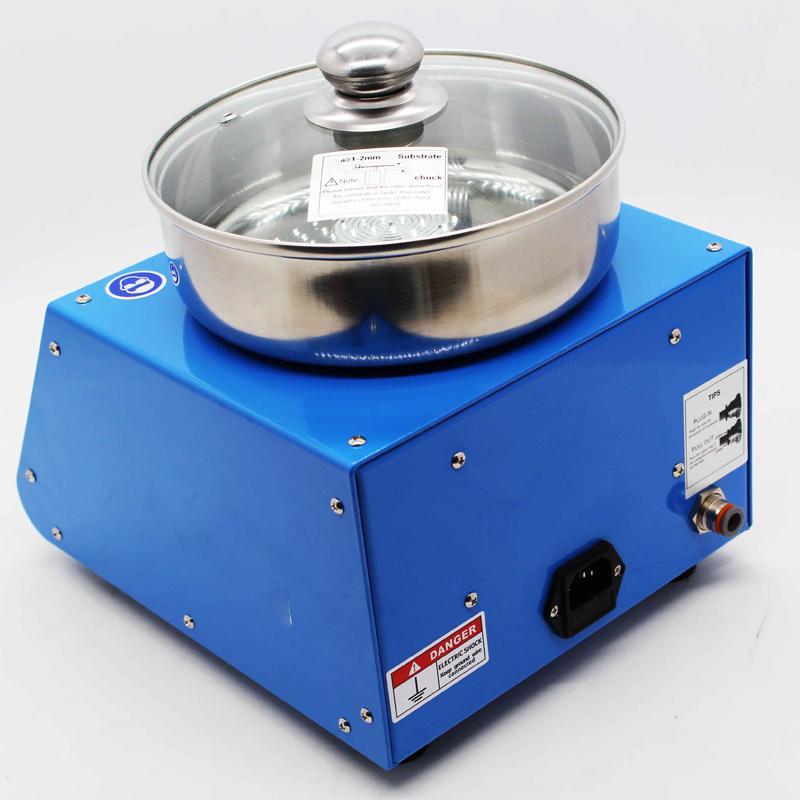

SETCAS KW-4BC intelligent program-controlled Spin Coater, mid-range machine, touch screen, adjustable acceleration

KW-4BC

Glue leveler

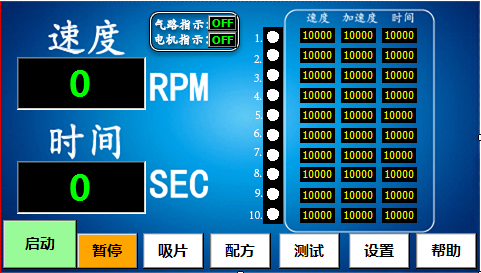

4B upgraded 4.3-inch true color touch screen, stores 10 segments of domestic (CN) motors without array data, 4.3-inch color touch screen, can set 10 segments of speed, adjustable acceleration, speed range 50-10000 rpm

Features

hardware features

· It adopts 4.3-inch color touch screen and BAMBOO stylus, and the graphical interface is easy to operate;

Software Features

· Motor speed can be adjusted;

· Single group and multi-group operation are optional, and each group can set up to 10 steps;

· With motor glue protection function;

· With substrate flyer protection and alarm function;

· It has the functions of gas circuit cut-off detection and automatic slice prompting;

· It has the function of formula parameter protection after power failure.

operation panel

Coating process

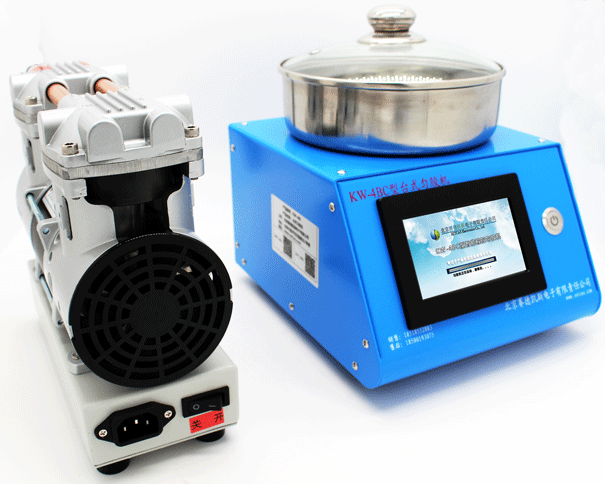

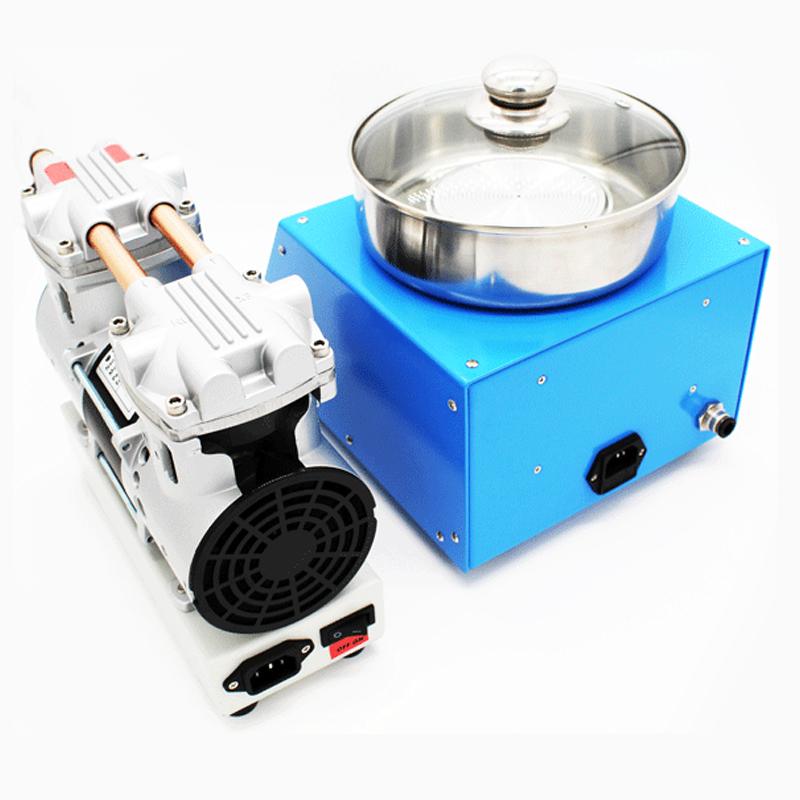

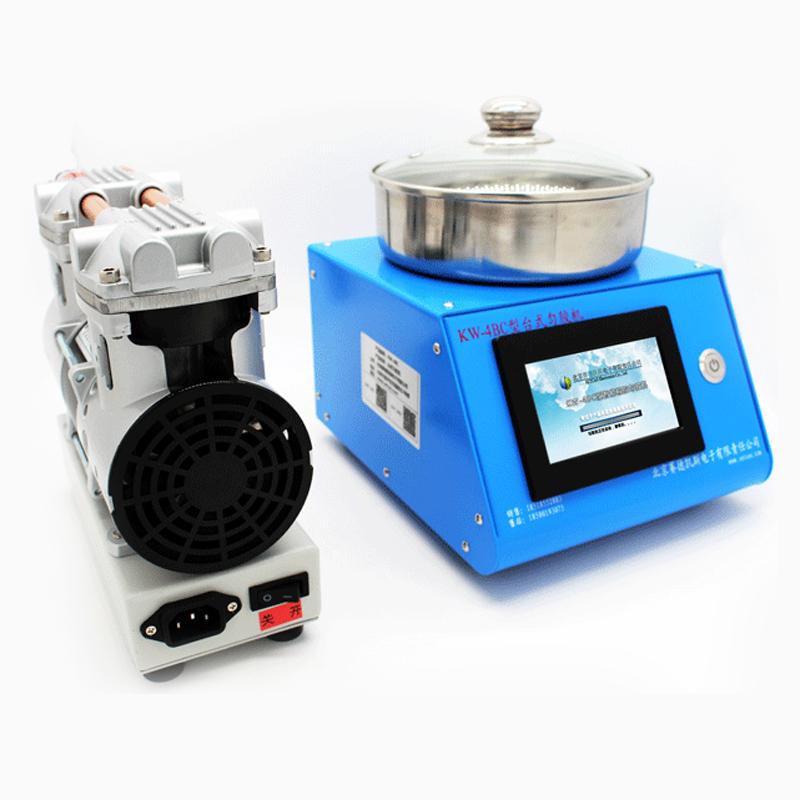

After the installation and general connection of the mechanical pump and glue homogenizer are completed, the glue homogenization operation can be carried out. The specific steps are as follows:

1. Turn on the power: turn on the power switch of the glue homogenizer and the oil-free pump in turn;

2. Recipe setting: Click the recipe button to perform related operations of the recipe. For details of the operation method, see Figure 6 and its description;

3. Other settings:

Set the pre-suction time, desorption time and air pressure detection status according to your own needs; the pre-suction time and desorption time are default

0s, the air pressure detection switch is on by default (recommended to be on), see Figure 8 and description for the operation method;

4. Play the film

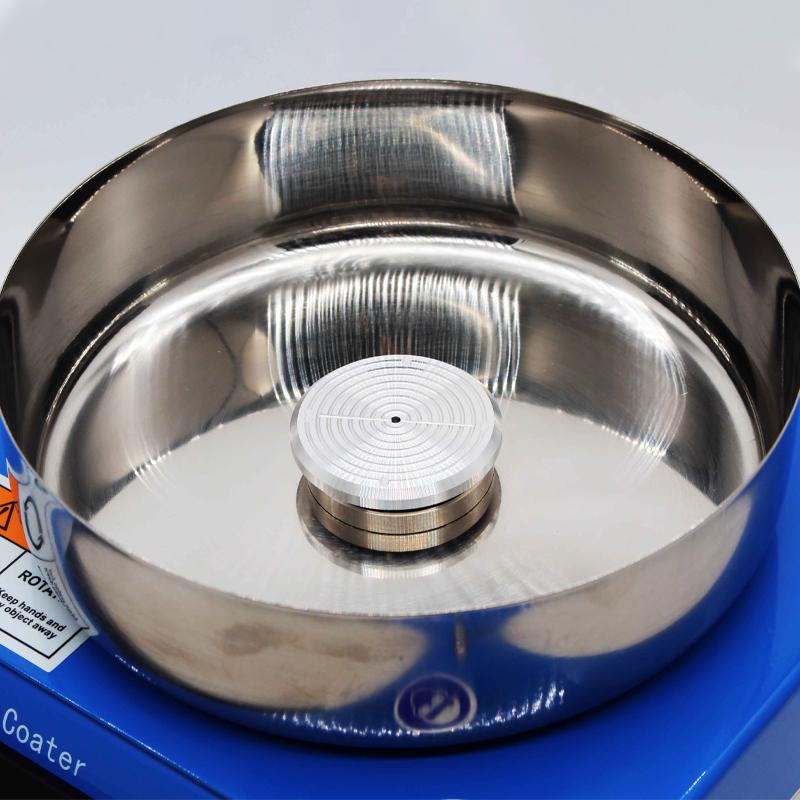

Place the substrate to be evenly glued on the sheet holder (see Figure 12);

5. Suction tablet: press the button of taking tablet/suction tablet to complete the suction tablet;

6. Epoxy:

· Static Epoxy

If glue dispensing is to be performed in a static state, this operation should be completed between steps 5 and 6.

· Low speed dispensing

If glue dispensing is required at low speed, the corresponding low speed section should be set in step 2, and the operation should be completed when the motor .

7. Start: Press the start/stop button, the motor starts and runs according to the parameter setting requirements, if step 5 is not operated, this step will automatically suck the film;

8. Take the film:

· Process take film

If you need to take and put the film in the process of uniform glue, you should press the pause/resume button. After the motor pauses, press the take/suction button to take and put the film.

· Terminate fetching

a. You can press the start/stop button to forcibly end a gluing process. After the motor stops running, perform pick-and-place and slice operations, and repeat steps 4 and 5 for pick-and-place operations.

b. After a glue homogenization process is automatically ended, after the prompt interface for taking the film pops up (see Figure 11), perform the operation of taking and putting the film, and repeat steps 4 and 5 for the taking and putting operation.

KW series homogenizer model comparison

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
