SETCAS KW-4L Spin Coater

SE
SETCAS KW-4L Spin Coater is equipped with glue feeding protection and alarm. The basic size of the test is 5~ 200mm, the speed range is 1~ 12000RPM, and the accuracy reaches 1rpm. The KW-4L adopts an 8-inch touch screen and is equipped with an oil-free Vacuumpump.
Model：
Certificate
Contact
Details SPEC Con

Setcas KW-4L Glue levelerSPEC

Setcas KW-4L Glue levelerDetails

Setcas KW-4L Glue levelerPacking list

SKU
NB038457
Speed range
1~12000rpm
Speed Accuracy
1rpm
Speed stability
±0.1%
Acceleration range
1~10000rpm/s
glue uniformity
±1%
Control signal
indicator
Human Machine Interface
8 inch touch screen
Communication interface
USB (std.)/RS485 (std.)
stylus
BAMBOO Resistance Pen (std.)
Vacuumpump
AP-550V No oil pump
Set data
Unlimited sets of data, 15 revolutions per set (std.)
Every time
0~10000s
Store data
Unlimited set of data
Data Protection
Default with power-down protection function
Swirl/spin direction
Can be reversed
AC Power port of glue leveler
AC100-250V
Vacuumpump AC Power port
AC220V (std.)
Gluer power
650W
Vacuumpump power
350W
Vacuumpump pumping rate
≥60L/min
Volume of homogenizer
340*500*250mm
Gluer Weight
18KG
Pump Weight
9KG
Environment temperature
0~40℃
Relative Humidity
<85%
KW-4L
Glue leveler

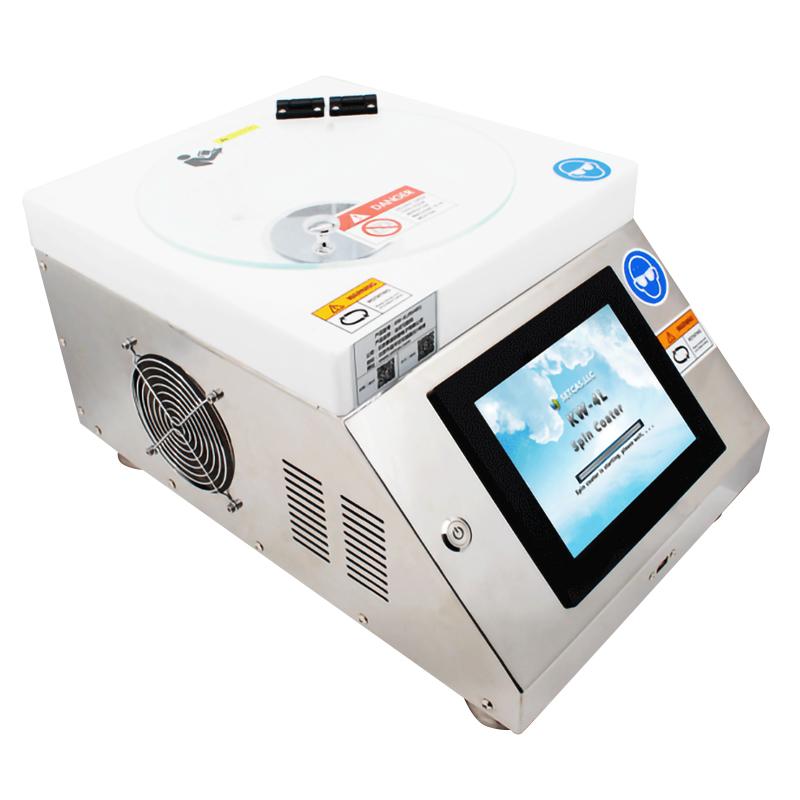

SETCAS KW-4L Spin Coater Picture

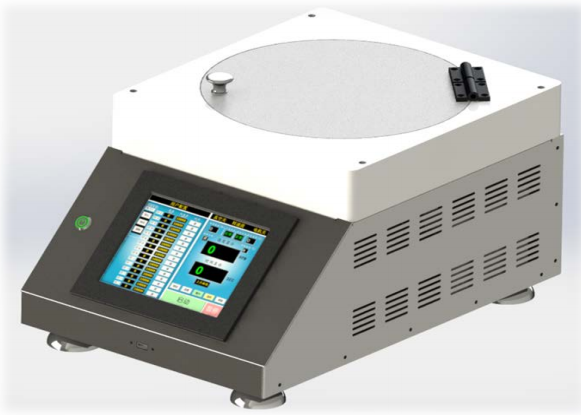

Side Case KW-4L Coating Machine Details Figure 1

feature of product

PTFE polymer chamber material, acid and alkali resistance, corrosion resistance, with a curved chamber bottom to facilitate glue export;

It has the function of exhaust gas pumping and exhausting in the chamber;

It can be heated and baked by gas, the temperature range: 0-200℃, the heating and cooling speed is 100℃/S; the direction of forward and reverse spin coating can be switched freely;

Real-time display of speed rise curve;

It has the functions of motor glue feeding alarm and protection;

It has alarm and interlock functions for insufficient substrate adsorption force.

Product Structure

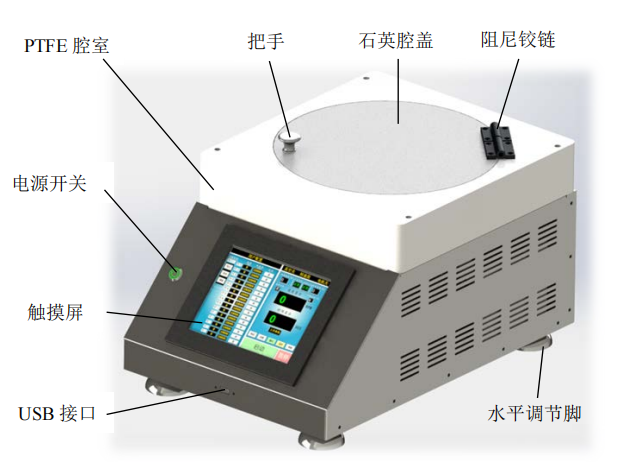

Side Case KW-4L Coating Machine Details Figure 2

Function introduction of KW-4L front left view angle

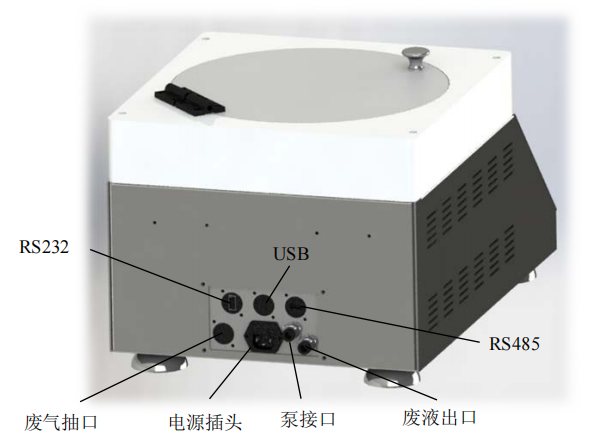

Sidecase KW-4L Glue Homogenizer Details Figure 3

Function introduction of KW-4L rear right view angle

KW series homogenizer model comparison

Side Case KW-4L Glue Homogenizer Details Figure 4

FAQ
QCan this kind of plastic substrate be installed to avoid cleaning the cavity, and how much does the plastic substrate generally cost?
A No plastic substrate is required, and the inner cavity is made of PTFE material, which is very smooth and easy to clean.
QWhat material is the chamber made of?
A PTFE polymer with acid resistance and corrosion resistance.
QIs the KW-4L equipped with a vacuum pump?
A Yes, with an oil-free vacuum pump.
