SETCAS KW-4S Heated homogenizer for glove box

SE
Maximum support 4 inches, touch screen with program control, PTFE cavity, integrated heating and temperature control function, can be placed in the glove box to work, the maximum speed is 10000rpm.
Model：
Certificate
Contact
Details SPEC Con CAT

Setcas KW-4S Glue levelerSPEC

Setcas KW-4S Glue levelerDetails

Setcas KW-4S Glue levelerPacking list

SKU
NB038459
Suitable substrate
5~100mm
Speed range
1~10000rpm
Speed Accuracy
1rpm
Speed stability
±0.1%
Acceleration range
1~10000rpm/s
glue uniformity
±1%
Heating range
RT+~200°C
Human Machine Interface
4.3 inch touch screen
Communication interface
Wireless mouse and keyboard: The machine can be placed in the glove box, and customers can remotely operate the machine outside the glove box
Swirl/spin direction
Support positive and negative
stylus
BAMBOO Resistance Pen (std.)
Vacuumpump
AP-550V no oil pump/FY oil pump
Set data
Unlimited sets of data, 10 revolutions per set (std.)
Every time
0~10000s
Store data
Unlimited set of data
AC Power port of glue leveler
AC100-250V
Vacuumpump Power interface
AC220V (std.) AC110V (optional)
Gluer power
200W
Vacuumpump power
350W
Vacuumpump pumping rate
≥60L/min
Volume of homogenizer
210*220*160mm
Gluer Weight
10KG
Pump Weight
9KG
Environment temperature
0~40℃
Relative Humidity
<85%
KW-4S
Glue leveler
Maximum support 4 inches, touch screen with program control, PTFE cavity, integrated heating and temperature control function, can be placed in the glove box to work, the maximum speed is 10000rpm.

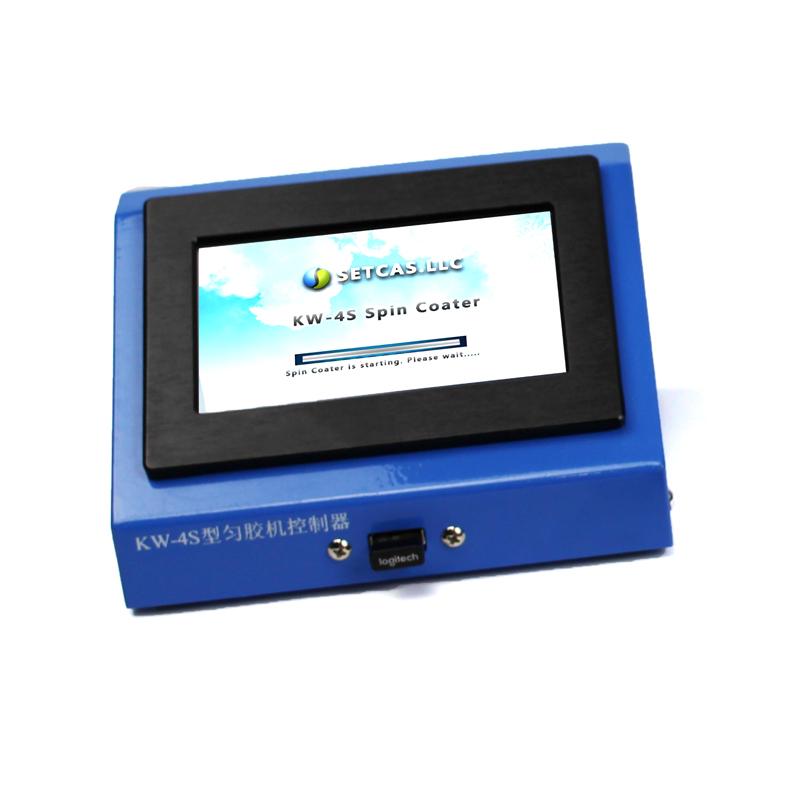

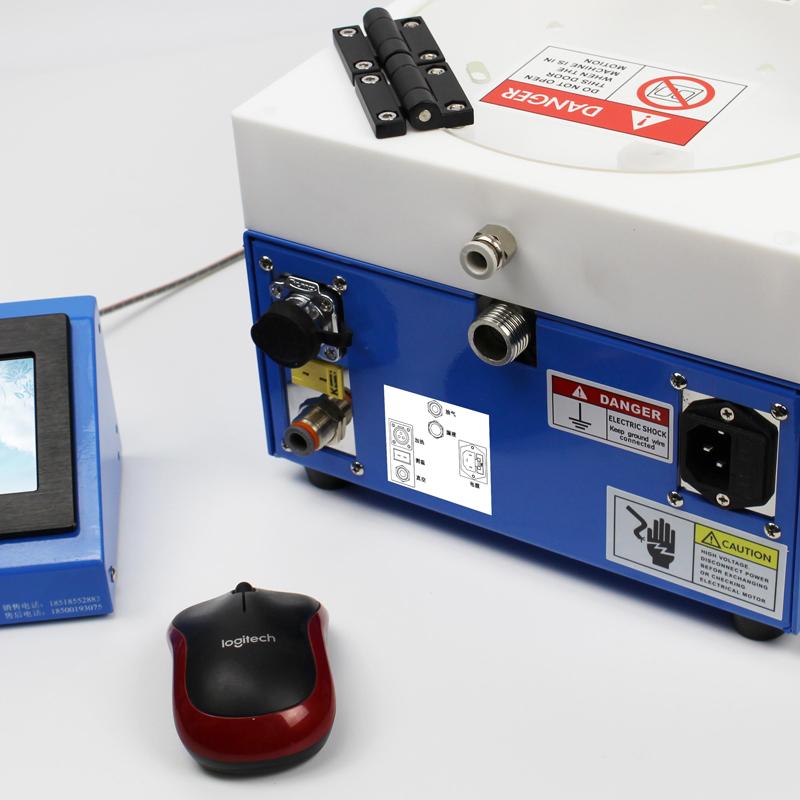

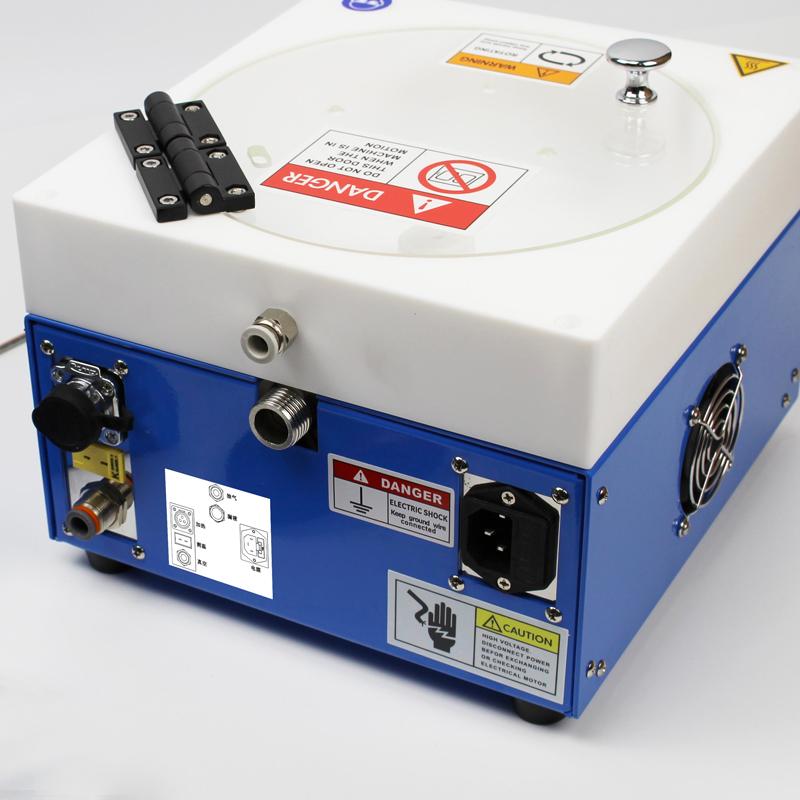

SETCAS KW-4S Heated homogenizer for glove box Picture

Side Case KW-4S Coating Machine Details Figure 1

Features

1. With anti-fly protection and alarm

2. With anti-glue protection and alarm

3. The motor can be reversed

4. Formula with power-down protection function

5. Acceleration adjustable

6. Heating temperature: room temperature -200°C


FAQ
QWhich homogenizer has heating function?
A KW-4S this one.
