SETCAS KW-4E Spin Coater, basic

SE
Maximum support 8 inches, touch screen with program control, PTFE cavity, integrated heating and temperature control function, maximum speed 12000rpm.
Model：
Certificate
Contact
Details SPEC Con CAT OI

Setcas KW-4E Glue levelerSPEC

Setcas KW-4E Glue levelerDetails

Setcas KW-4E Glue levelerPacking list

SKU
NB038460
Suitable substrate
5~200mm
Speed range
1~12000rpm
Speed Accuracy
1rpm
Speed stability
±0.1%
Acceleration range
1~10000rpm/s
Swirl/spin direction
Forward and reverse can be switched
glue uniformity
±1%
Heating range
RT+~200°C
Heating speed (chamber air temperature)
To 100 ℃ (1S), to 200 ℃ (2S)
Chill down
To room temperature (2S)
Human Machine Interface
8 inch touch screen
Communication interface
USB (std.)
stylus
BAMBOO Resistance Pen (std.)
Vacuumpump
SC-550V no oil pump
Set data
Unlimited sets of data, 15 revolutions per set (std.)
Program every time
0~10000s
Store data
Unlimited set of data
Data Protection
Default with power-down protection function
AC Power port of glue leveler
AC100-250V
Vacuumpump Power interface
AC220V (std.)
Gluer power
650W
Vacuumpump power
350W
Vacuumpump pumping rate
≥60L/min
Volume of homogenizer
340*500*250mm
Gluer Weight
18KG
Pump Weight
9KG
Environment temperature
0~40℃
Relative Humidity
<85%
KW-4E
Glue leveler
Maximum support 8 inches, touch screen with program control, PTFE cavity, integrated heating and temperature control function, maximum speed 12000rpm.

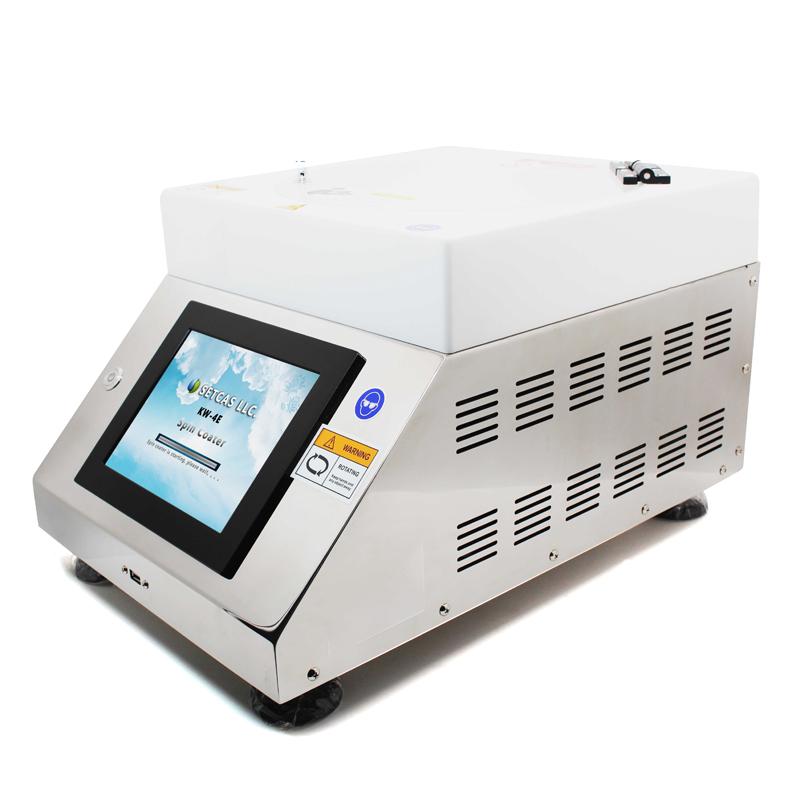

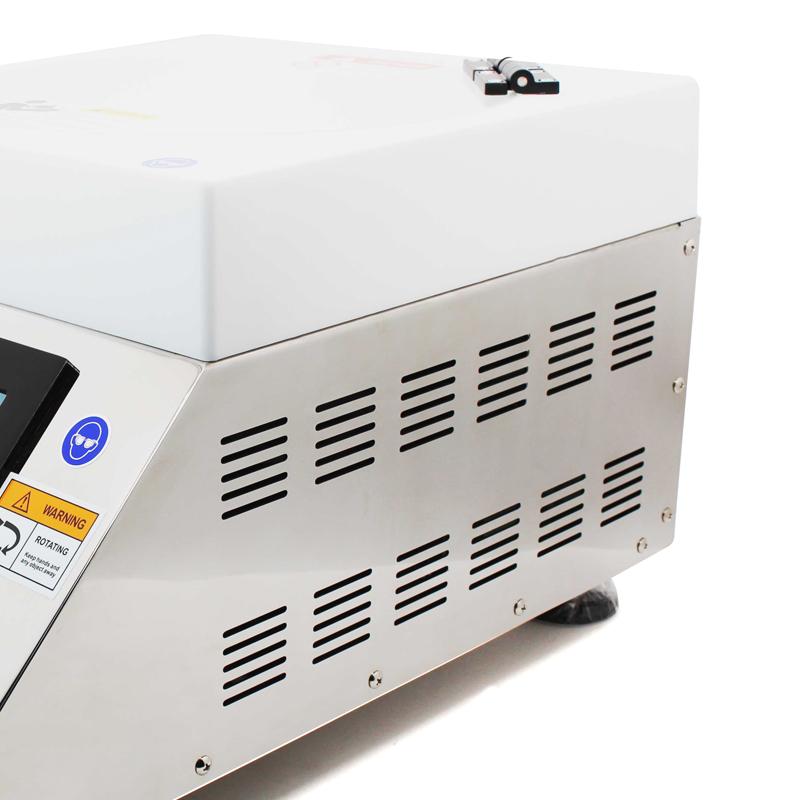

SETCAS KW-4E Spin Coater, basic Picture

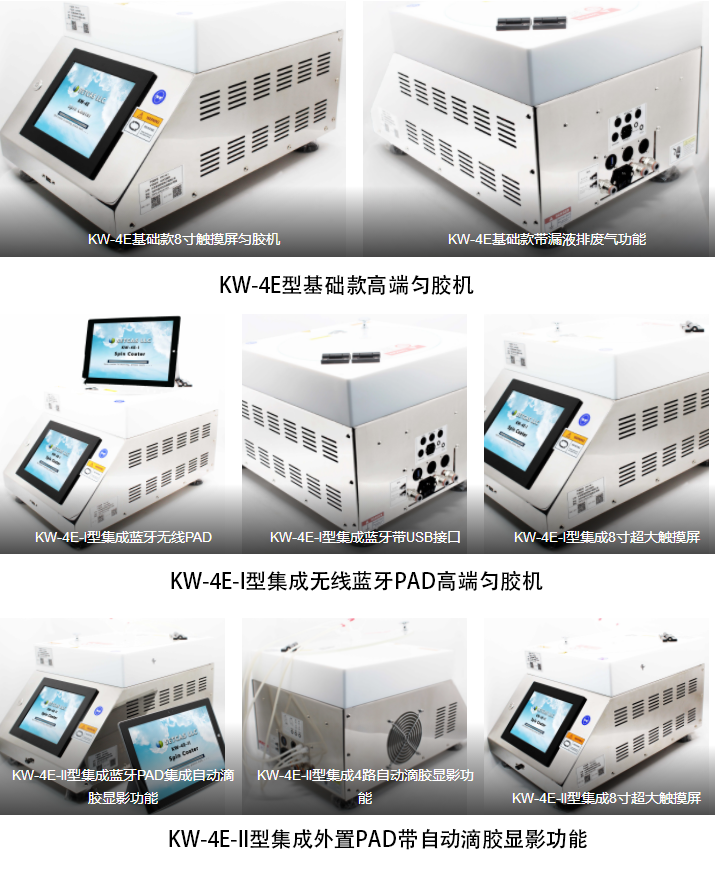

Side Case KW-4E Coating Machine Details Figure 1

Advantages

  • PTFE polymer chamber material, acid and alkali resistance, corrosion resistance, with a curved chamber bottom to facilitate glue export;

  • It has the function of exhaust gas pumping and exhausting in the chamber;

  • Gas heating and drying, temperature range: 0-200°C, heating and cooling speed 100°C/S; forward and reverse spin coating directions can be switched freely;

  • Real-time display of speed rise curve;

  • It has the functions of motor glue feeding alarm and protection;

  • It has alarm and interlock functions for insufficient substrate adsorption force.

Product Structure

Side Case KW-4E Coating Machine Details Figure 2

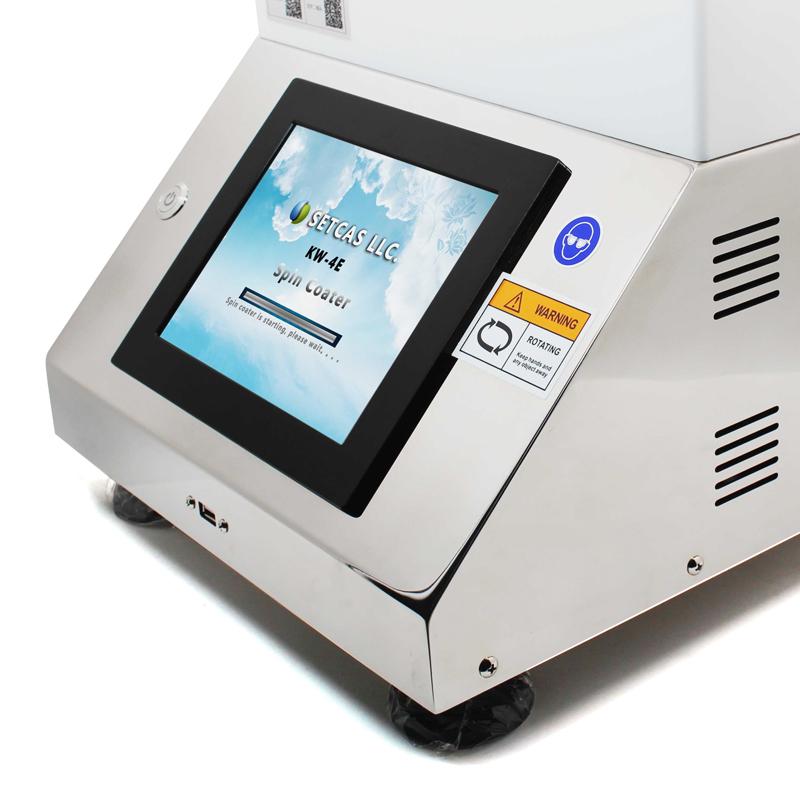

KW-4E left front view function introduction

Side Case KW-4E Coating Machine Details Figure 3

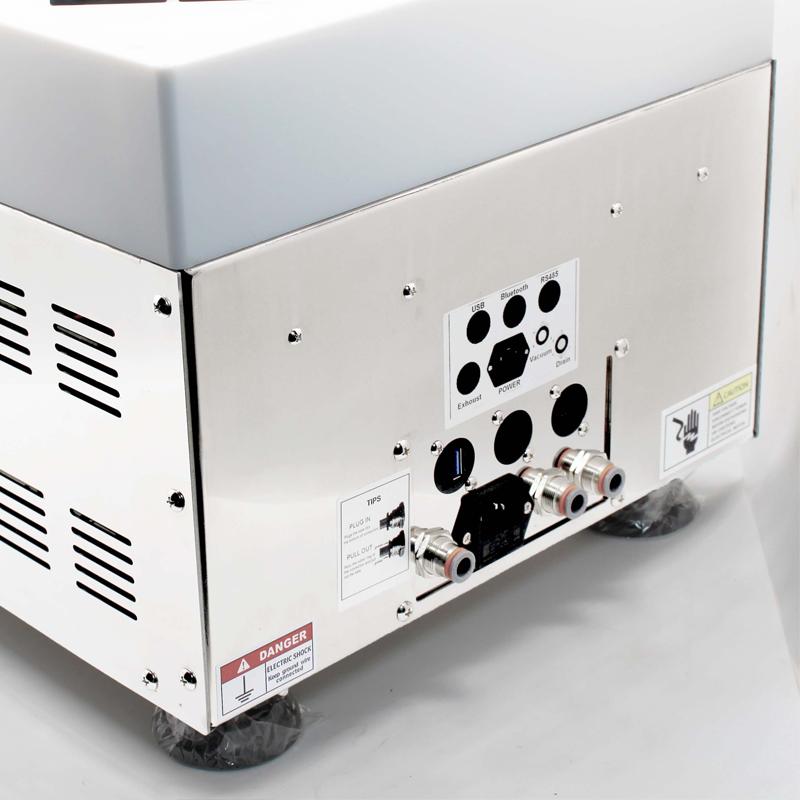

Function introduction of KW-4E rear right view angle

KW series homogenizer model comparison

Sidecase KW-4E Glue Homogenizer Details Figure 4

FAQ
QIs there any requirement for the outer diameter of the substrate of the homogenizer?
A The outer diameter of the substrate should be larger than the outer diameter of the chip holder boss by 2 to 4 mm.
QHow often should the air extraction chamber of the glue leveler be cleaned?
A There are three situations: normal use for three months; Rotation speed of the motor is unstable or stuck; glue is sucked into the exhaust chamber, to be cleaned immediately.
QWhat kind of sheet holder is used for the thickness of the experimental test piece 1mm?
A 0.3~ 2Mm can be selected with suction groove sheet holder, Miscellaneous thickness to be customized sheet holder.
QWhat should I do if the glue is blocked in the small hole of the uniform glue machine?
A 1. Drop alcohol or acetone in the small hole of the tablet holder until it overflows slightly; 2. Soak for about 5 minutes until the alcohol or acetone completely dissolves the photoresist; 3. Open the mechanical pump and open the air supply system until the photoresist and alcohol or acetone are miscible. The solution after acetone is pumped out.
