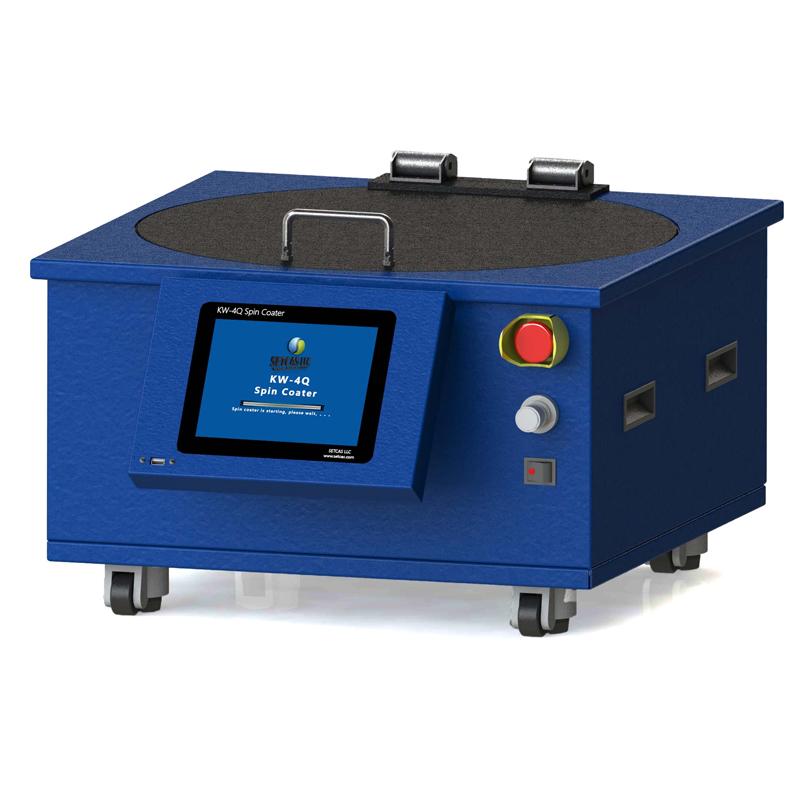

SETCAS KW-4Q experimental homogenizer, supports 12-inch substrates

SE
Maximum support 12 inches, touch screen with program control, with foot switch, with Modbus-RTU communication interface, formula with power-down protection function, mouse and keyboard interface, insufficient adsorption alarm and interlocking safety mechanism, maximum speed 6000rpm, distribution center alignment tool.
Model：
Certificate
Contact
Details SPEC Con CAT

Setcas KW-4Q Glue levelerSPEC

Setcas KW-4Q Glue levelerDetails

Setcas KW-4Q Glue levelerPacking list

SKU
NB038463
Suitable substrate
200~300mm
Speed range
1~6000rpm
Speed Accuracy
1rpm
Speed stability
±0.1%
Acceleration range
1~1000rpm/s
glue uniformity
±1%
Human Machine Interface
8 inch touch screen
Communication interface
USB (std.)/RS485 (std.)/Bluetooth (optional)
stylus
BAMBOO Resistance Pen (std.)
Vacuumpump
SC-550V no oil pump
formula
Unlimited sets of data, 15 revolutions per set
Every time
0~10000s
Store data
Unlimited set of data
Data Protection
Default with power-down protection function
Swirl/spin direction
Can be reversed
AC Power port of glue leveler
AC100-250V
Vacuumpump Power interface
AC220V (std.) AC110V (optional)
Gluer power
2KW
Vacuumpump power
350W
Vacuumpump pumping rate
≥60L/min
Volume of homogenizer
550*550*350mm
Gluer Weight
50KG
Pump Weight
9KG
Environment temperature
0~40℃
Relative Humidity
<85%
KW-4Q
Glue leveler
Maximum support 12 inches, touch screen with program control, with foot switch, with Modbus-RTU communication interface, formula with power-down protection function, mouse and keyboard interface, insufficient adsorption alarm and interlocking safety mechanism, maximum speed 6000rpm, distribution center alignment tool.
SETCAS KW-4Q experimental homogenizer, supports 12-inch substrates Picture

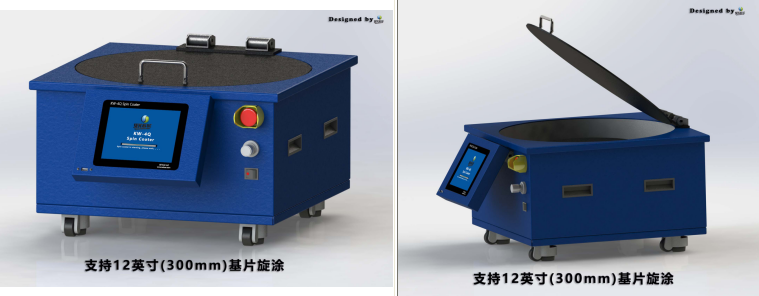

Side Case KW-4Q Coating Machine Details Figure 1

Features

1. With glue protection and alarm

2. Insufficient adsorption alarm and interlock

3. The motor can be forward and reverse

4. With Modbus-RTU communication interface

5. Mouse and keyboard can be connected

6. Formula with power-down protection function

7. With foot switch

FAQ
QCan the Spin coater KW-4L come with a 12-inch plate?
A Only the KW-4Q can be equipped with a 12-inch tray.
