SETCAS SC-H-III glue dryer, room temperature -500 ℃

Temperature range of SETCAS dryer SC-H-II is -500 ℃, the temperature control is continuously adjustable, SC-H-III has timing function, and the size of the Heating Plate is 200X200mm.
Model：
Certificate
Contact
Details SPEC CAT OI

Setcas SC-H-III Heating plateSPEC

Setcas SC-H-III Heating plateDetails

Setcas SC-H-III Heating platePacking list

SKU
NB038470
Temperature range
RT+~500°C
Pan size
200*200mm
temperature uniformity
+/- 3% (temperature uniformity across the table at maximum temperature)
Power
Single-phase 110-240V Power
Dimensions
210*220*160mm
Weight
6.5KG
Timer
0-999 minutes (Timer does not work when Timer is set to 0)
Thermostatic fluctuation
±0.5℃
SC-H-III
Heating plate

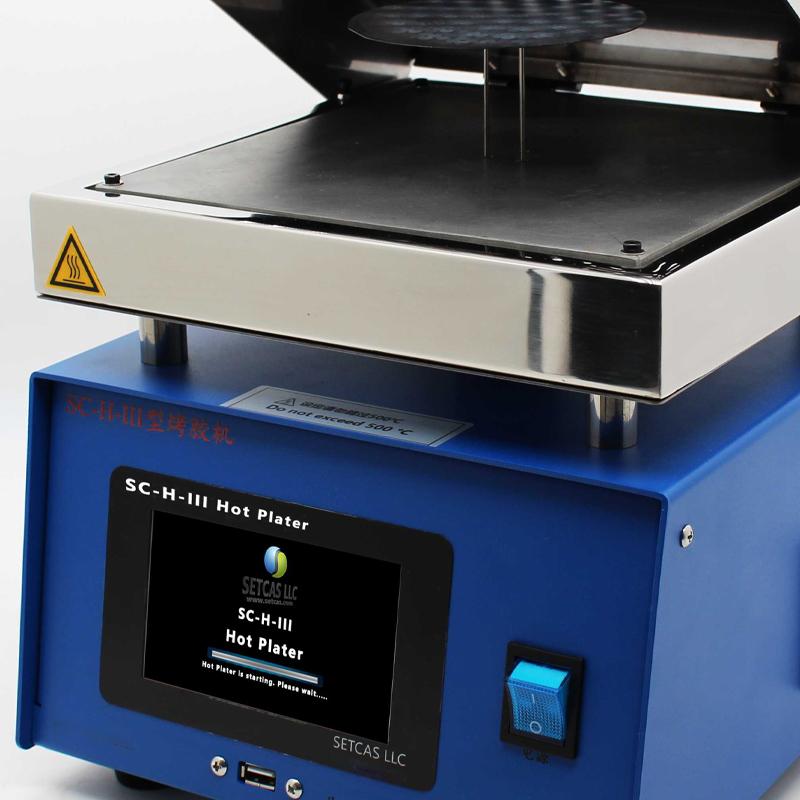

SETCAS SC-H-III glue dryer, room temperature -500 ℃ Picture

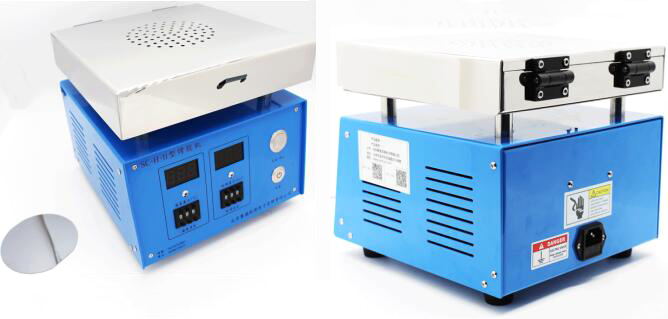

Sidecase SC-H-III Heating Plate Details Figure 1

Introduction

SC series gluing machine (Hot Plate) is suitable for semiconductor silicon wafers, glass slides, wafers, substrates, ITO conductive glass and other processes. After the surface of the plate is coated, the film is dried and cured. The Hot Plate has high temperature stability and good repeatability. Used for production, scientific research and teaching in industrial and mining enterprises, scientific research, education and other units.

Product Features

1. The stability performance is very good, and the temperature stability can reach ±0.5°C.

2. Wide temperature adjustment range: room temperature -500°C .

2. Closed-loop control is adopted, and the heating speed is fast.

3. It has timing function. At the same time with a countdown display function. (II, II types have)

4. The temperature and time are controlled by digital buttons, and the temperature and time settings are more accurate.

5. The body is all made of stainless steel, acid and alkali resistant and corrosion resistant.

6. According to the size of the customer's substrate, provide customized Heating Plate service.
