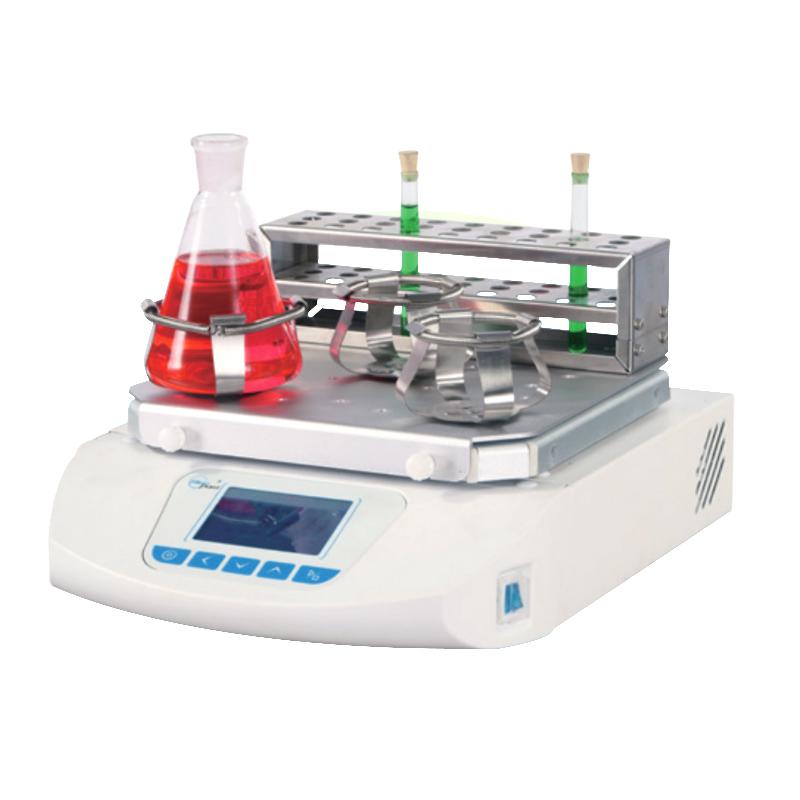

YIHENG WSZ-100A Experimental Swing Shaker Tray 400 × 340mm
SE
WSZ-100A
YiHeng WSZ-100A Cyclotron ShakerSPEC
YiHeng WSZ-100A Cyclotron ShakerDetails
YiHeng WSZ-100A Cyclotron ShakerPacking list
- SKU
- NB038604
- Oscillation Frequency
- 40~300rpm
- Oscillation Stroke
- 20mm
- Controller
- LCD Controller
- Temperature range
- -
- Temperature Resolution
- -
- Input power
- 60W
- Pallet size
- 400*340mm
- Dimensions
- 420*495*230mm
- Timer
- 0~5999min
- Standard configuration
- Multifunctional spring clip
- Power
- AC220V 50HZ
Instrument use
It is widely used in bacterial culture, fermentation, hybridization, biochemical reaction, enzyme and tissue research with high requirements on temperature and oscillation frequency.
Features
● Microcomputer is used to control temperature, frequency and time, and built-in power-off protection function, which can automatically resume operation after normal power supply.
● Large-screen LCD display can display temperature, frequency and time at the same time, and the menu-style operation interface is easy to understand. Locked operation mode to prevent misuse.
● Low heat dissipation brushless DC motor has large starting torque, wide speed regulation, constant torque and maintenance-free.
● The user can adjust the starting torque of the motor by himself to avoid the failure of the instrument to run due to excessive load. When the vibration is too severe, the instrument will automatically stop running, and the start and deceleration will be smooth.
● A variety of proprietary cradles and fixtures are available for selection, and the replacement of cradles and fixtures is very simple, which greatly improves work efficiency.
● Multi-segment programming function can simplify the complex test process and realize automatic control and operation. (optional)
Tray standard
The multi-functional spring clip is made of light and beautiful aluminum, and is easy to disassemble, and can hold flasks, test tubes, microplates, etc. (optional beaker clamp or tray)
Series
| name | Rotary Oscillator (Small) | cyclotron oscillator | reciprocating oscillator | Heating cyclotron |
| model | WSZ-10A | WSZ-100B | WSZ-100BR | HZQ-50H |
| WSZ-20A | WSZ-100A | WSZ-100AR | HZQ-120H | |
| WSZ-50A | WSZ-200A | WSZ-200AR | ||
| power supply | AC220V 50HZ | |||
| Oscillation frequency | 40～250rpm | 40～300rpm | 40～250rpm | 40～250rpm |
| amplitude | 10mm/20mm/10mm | 20mm | 20mm (reciprocating) | 20mm |
| controller | LCD controller | |||
| Temperature control range | — | — | RT+5～100℃ | |
| temperature resolution | — | 0.1°C | ||
| input power | 25W | 60W | 350W/400W | |
| Pallet size(mm) | 280×270 | 350×350 | 350×260 | |
| 280×270 | 400×340 | 380×340 | ||
| 350×260 | 450×450 | |||
| Timer Range | 0～5999min | |||
| Standard configuration | multifunctional spring clip | |||
Note: 1. WSZ-10A/20A/100B/200A are optional: general fixture, culture bottle/dish (cell) culture spring holder, flat plate (with rubber pad), flask fixing clip, test tube rack, sticky pad.
Optional parts: (increase the delivery time of optional parts by 7 days)
1. Multi-segment programmable controller
2. RS485 interface and communication software
Note: Choose one of RS485/232 and printer
| Vessel Specifications | WSZ-10A | WSZ-50A | WSZ-100A | WSZ-200A | HZQ-120H | |
| WSZ-20A | WSZ-50H | WSZ-100B | ||||
| Erlenmeyer flask (only) | 50(ml) | 16 | - | 29 | 42 | 36 |
| 100(ml) | 9 | 12 | 18 | 28 | twenty three | |
| 250(ml) | 8 | 6 | 11 | 12 | 13 | |
| 500(ml) | 4 | - | 7 | 11 | 8 | |
| 1000(ml) | - | - | 4 | 8 | 4 | |
| 2000(ml) | - | - | 3 | 4 | 1 | |
