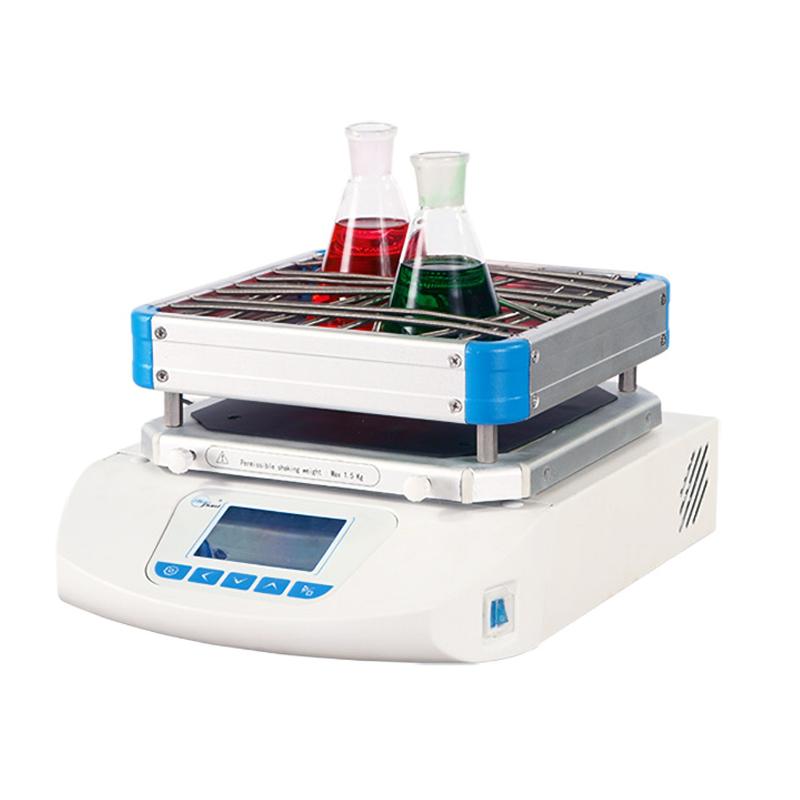

YIHENG HZQ-50H heating Swing Shaker

HZQ-50H

Cyclotron Shaker

The tray size is 350 * 260mm, which integrates oscillation and heating platforms. It is suitable for chromadizing or decolorization and combinatorial chemistry of gels. It is suitable for experimental samples that require both rapid heating and complete openness for swirling, oscillation, mixing and fostering.

 Heating cyclotron

Integrating a shaking and heating platform, it is suitable for the coloring or decoloring of gels and combinatorial chemistry. It is suitable for experimental samples that need to be heated quickly and completely open for gyration, shaking, mixing and culturing. It has fast heating speed, wide temperature range , and the highest temperature can reach above 100°C, breaking through the defects that the existing domestic (CN) oscillators cannot operate at high temperature.

Instrument use

It is widely used in bacterial culture, fermentation, hybridization, biochemical reaction, enzyme and tissue research with high requirements on temperature and oscillation frequency.

Features

●  Microcomputer is used to control temperature, frequency and time, and built-in power-off protection function, which can automatically resume operation after normal power supply.

● Large-screen LCD display can display temperature, frequency and time at the same time, and the menu-style operation interface is easy to understand. Locked operation mode to prevent misuse.

● Low heat dissipation brushless DC motor has large starting torque, wide speed regulation, constant torque and maintenance-free.

● The user can adjust the starting torque of the motor by himself to avoid the failure of the instrument to run due to excessive load. When the vibration is too severe, the instrument will automatically stop running, and the start and deceleration will be smooth.

● A variety of proprietary cradles and fixtures are available for selection, and the replacement of cradles and fixtures is very simple, which greatly improves work efficiency.

● Multi-segment programming function can simplify the complex test process and realize automatic control and operation. (optional)

Tray standard

The multi-functional spring clip is made of light and beautiful aluminum, and is easy to disassemble, and can hold flasks, test tubes, microplates, etc. (optional beaker clamp or tray)

Series

Note: 1. WSZ-10A/20A/100B/200A are optional: general fixture, culture bottle/dish (cell) culture spring holder, flat plate (with rubber pad), flask fixing clip, test tube rack, sticky pad.

Optional parts: (increase the delivery time of optional parts by 7 days)

1. Multi-segment programmable controller

2. RS485 interface and communication software

Note: Choose one of RS485/232 and printer

Packing list：host x1, instruction manual x1, packing list x1, certificate x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
