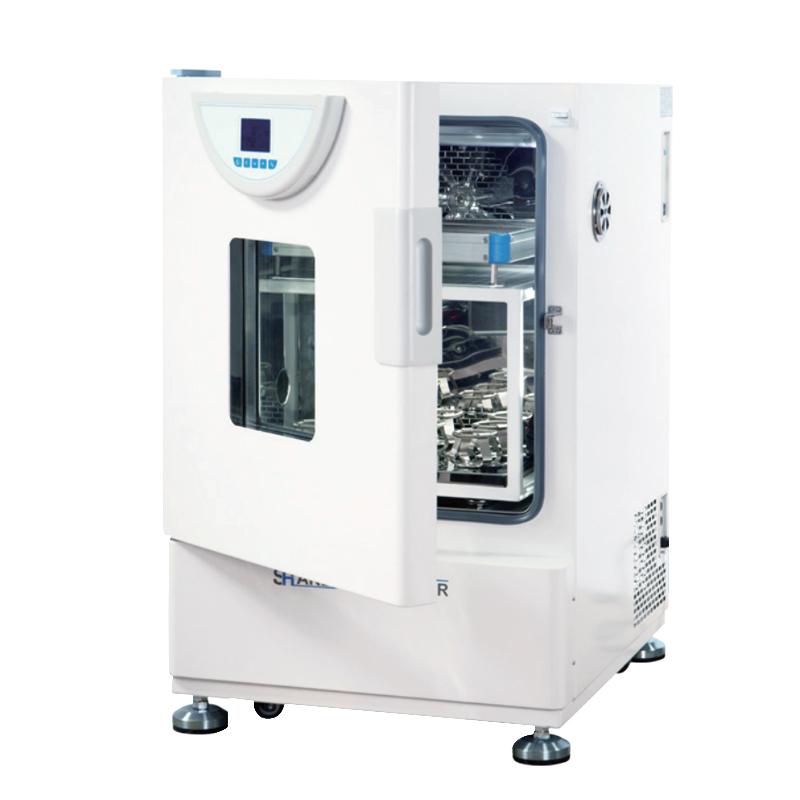

YIHENG HZQ-X300C thermostatic Shaker LCD screen double-decked 1300W

HZQ-X300C (double-decked)

Thermostatic Shaker (LCD)

Set Incubator, Shaker in one, double-decked structure, Power 1300w, temperature control 4~ 65 ℃, with cooling function, long-term operation, with ultraviolet sterilization system, self-diagnosis.

Product Description

The constant temperature oscillator, with more than ten years of design and manufacturing experience, has introduced and digested foreign technology, is oriented to the needs of users, and continuously innovates in technology. It is widely used in cell culture, fermentation, hybridization, Research on biochemistry and cell organization, etc. Used for moving and static cultivation of microbial cells and various strains, especially suitable for laboratory pilot production.

Features

1. Humanized design

● Integrating Incubator and shaker, it occupies a small area and has a large bottle capacity.

● After the shaking experiment is over, it can be automatically converted to an Incubator, avoiding the trouble of changing the machine after the shaking experiment.

● Large-screen LCD display, menu-style operation interface, easy to understand.

● Quiet operation, creating a better environment for you.

● The new fluoride-free design keeps you ahead of healthy life.

● Large-screen tempered heat-insulating observation window, which can clearly observe the state of the sample while the instrument is running, and has good heat insulation effect.

● A variety of special cradles and fixtures are available for selection, and the replacement of cradles and fixtures is very simple, which greatly improves work efficiency.

● The cabinet, vibrating table top and shelf are all made of 304 stainless steel, which is easy to clean.

● The left side of the cabinet is equipped with a test hole with a diameter of 25mm, which can be wired arbitrarily according to the needs of the place where it is placed.

2. Quality Assurance

● The parameters set by the user can be automatically stored in case of a sudden power failure, and the original setting program will be run after the power is turned on.

● Using microcomputer PID to control temperature and oscillation frequency, with timing function.

● Key components such as compressors and circulation fans are all brand-name products, environmentally friendly and fluorine-free refrigerants.

3. Guarantee of continuous operation

● Low heat dissipation DC motor, large starting torque, wide speed regulation, maintenance-free, breaking through the defects that the existing domestic (CN) shakers cannot run continuously for a long time.

4. Safety function

● Equipped with a door switch, when the door is opened, the breeze circulation, heating and shaking table will stop automatically, without the disadvantage of temperature overshoot.

● Unique speed control circuit ensures stable start of the shaker and prevents damage to the instrument caused by liquid splashing.

● Independent temperature limit alarm system, automatically cut off the heating when the temperature exceeds the limit, to ensure safe operation without accidents.

● The speed of the circulation fan is automatically controlled, which can avoid the volatilization of the sample due to the excessive speed of the circulation fan during the test.

● It can be equipped with RS-485 interface and USB data transfer interface (U disk), and monitor temperature, speed, time and alarm by connecting to a computer. (optional)

5. Self-diagnosis function

● When the shaking Incubator breaks down, the liquid crystal display will show the failure information, and the running fault of the shaking Incubator is clear at a glance.

6. Multi-segment programmable control (optional)

● Multi-stage temperature, speed, and time synchronous programming, normal and programmed operating modes are optional, and the preset value and operating value are displayed at the same time, which can simplify complex cultivation requirements and truly realize automatic control and operation.

7. Convenient data processing (optional)

● It can be connected with a printer or 485 communication interface, and record temperature and time curves with a computer and printer, providing a strong guarantee for data storage and playback during the test process.

8. Ultraviolet sterilization system

● The ultraviolet germicidal lamp is located on the back wall of the box, which can regularly disinfect the inside of the box, and can effectively kill floating bacteria in the circulating air in the box, thereby effectively preventing pollution during cell culture.

Packing list：host x1, instruction manual x1, packing list x1, certificate x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
