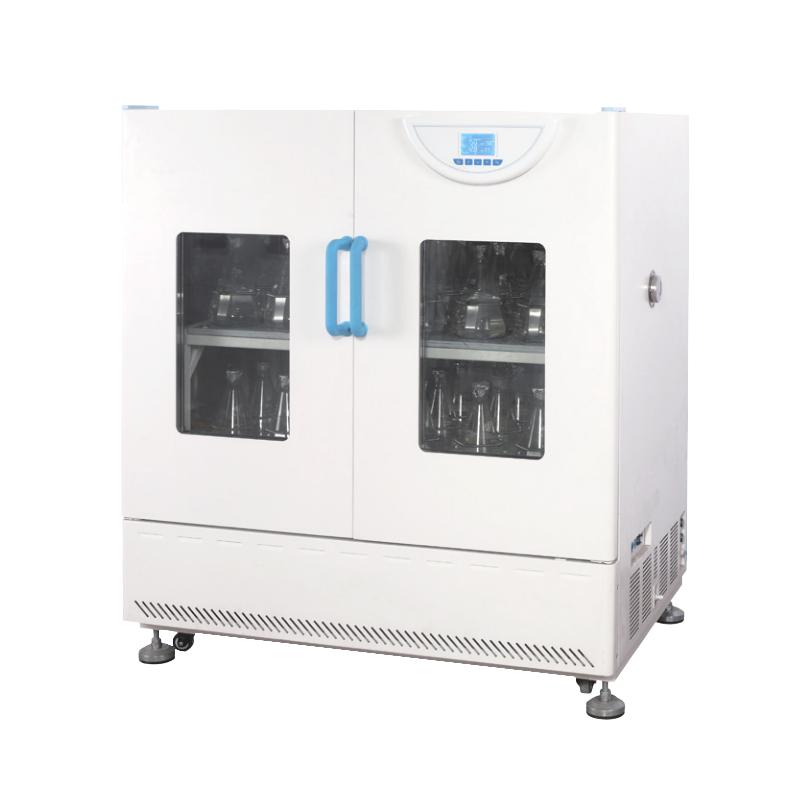

YIHENG HZQ-X700C Large refrigeration thermostatic Shaker double-decked 4~ 65 ℃

HZQ-X700C double-decked

Large thermostatic Shaker (LCD)

Refrigeration thermostatic Shaker, large screen LCD screen, temperature control 4~ 65 ℃, double-decked structure, 304 stainless steel liner, can run continuously for a long time, with self-diagnosis and three eccentric shaft equilibrate drive function.

Product Description

Large-scale constant temperature double-layer oscillator, which has more than ten years of design and manufacturing experience of the company, has introduced and digested foreign technology, is oriented by the needs of users, and continuously innovates in technology. It is widely used in cell culture and fermentation that have high requirements for temperature and oscillation frequency. , hybridization, biochemistry and cell tissue research, etc. It can cultivate microbial cells and various strains in motion and static, especially suitable for laboratory pilot production

Features

1. Humanized design

● Integrating Incubator and shaker, it occupies a small area and has a large bottle capacity.

● Large-screen LCD display, menu-style operation interface, easy to understand.

● The new fluoride-free design keeps you ahead of healthy life.

● Large-screen tempered heat-insulating observation window, which can clearly observe the state of the sample while the instrument is running, and has good heat insulation effect.

● A variety of special cradles and fixtures are available for selection, and the replacement of cradles and fixtures is very simple, which greatly improves work efficiency.

● The cabinet, vibrating table top and shelf are all made of 304 stainless steel, which is easy to clean.

● The left side of the cabinet is equipped with a test hole with a diameter of 25mm, which can be wired arbitrarily according to the needs of the place where it is placed.

2. Quality Assurance

● The parameters set by the user can be automatically stored in case of a sudden power failure, and the original setting program will be run after the power is turned on.

● Using microcomputer PID to control temperature and oscillation frequency, with timing function.

● Key components such as compressors and circulation fans are all brand-name products, environmentally friendly and fluorine-free refrigerants.

3. Guarantee of continuous operation

● Brushless DC motor with low heat dissipation, large starting torque, wide speed regulation, maintenance-free, breaking through the defect that the existing domestic (CN) oscillator cannot run continuously for a long time.

4. Safety function

● When the door is opened, the breeze circulation, heating and shaking table will stop automatically, without the disadvantage of temperature overshoot.

● The unique control speed circuit can ensure the smooth start of the shaker and prevent the instrument from being damaged due to liquid splashing.

● Independent temperature limit alarm system, automatically cut off the heating when the temperature exceeds the limit, to ensure safe operation without accidents.

● The speed of the circulation fan is automatically controlled to avoid volatilization of the sample due to the excessive speed of the circulation fan during the test.

● It can be equipped with RS-485 interface and USB data transfer interface (U disk), and can monitor temperature, speed, time and alarm by connecting to a computer. (optional)

5. Multi-segment programmable control (optional)

● Multi-stage temperature, speed, and time synchronous programming, normal and programmed operating modes are optional, and the preset value and operating value are displayed at the same time, which can simplify complex cultivation requirements and truly realize automatic control and operation.

6. Self-diagnosis function

● When the shaking Incubator breaks down, the liquid crystal display will show the failure information, and the running fault of the shaking Incubator is clear at a glance.

7. Three eccentric shaft balance drive

● Three eccentric shaft balance driving process ensures that the samples on the oscillating tray are all oscillated at the same rotational speed. The load-bearing and durable structural design ensures that our oscillators can display strong power even under full load and high speed.

8. Convenient data processing (optional)

● It can be connected with a printer or 485 communication interface, and record temperature and time curves with a computer and printer, providing a strong guarantee for data storage and playback during the test process.

Packing list：host x1, instruction manual x1, packing list x1, certificate x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
