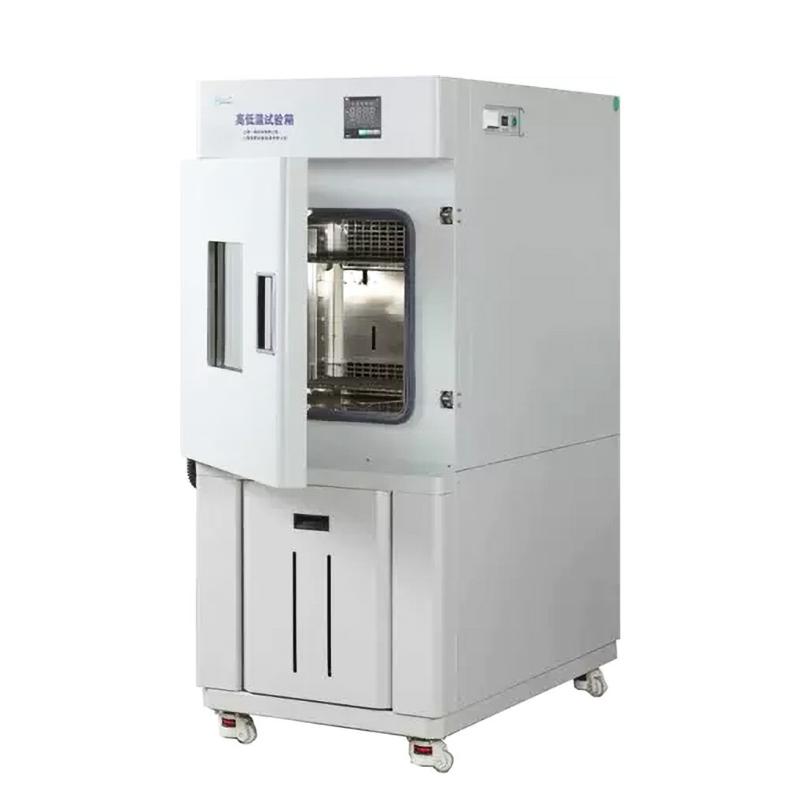

YIHENG BPH-250B low/high Temperature Test Chamber -40 ℃~ 130 ℃/250L

BPH-250B

low/high Temperature Test Chamber

Vertical low/high Temperature Test Chamber, temperature control -40 ℃~ 130 ℃, liner volume 250L, all fluorine-free design, imported compressor, 304 mirror stainless steel liner, independent temperature limit alarm system.

Product Description

The new generation of high-low temperature (alternating) Test Chambers integrates the company's many years of successful experience in chamber design. Based on the concept of humanized design, starting from the actual needs of customers, we try our best to meet customer requirements in every detail and provide customers with high-quality products. Quality product.

Features

humanized design

● The new fluoride-free design keeps you ahead of healthy life.

● Imported temperature and humidity controllers have long service life, high-precision CFL 20 characters × 6 lines LCD display, keyboard input, and easy operation.

● There is a test hole with a diameter of 25mm or 50mm on the left side of the box, which is convenient for experimental operation and temperature measurement. Quality Assurance

●Imported brand compressor and circulation fan make the temperature distribution even. The environmentally friendly refrigerant has high efficiency and low energy consumption, promoting energy saving.

● Unique air duct circulation system ensures uniform humidity in the working room temperature.

●Imported 304 mirror stainless steel liner is used, the four corners are semi-circular, and the shelf bracket can be freely loaded and unloaded, which is convenient for cleaning inside the box.

● Multi-segment programmable control can simplify the complex test process and truly realize automatic control and operation. security function

● Independent temperature limit alarm system, when the temperature exceeds the limit, the operation will be automatically interrupted, and the audible and visual alarm will remind the operator. Ensure the safe operation of the experiment without accidents.

● High temperature, low temperature and over temperature alarm.

● Compressor overheat, overcurrent, overload protection, fan overheat protection, etc. Convenient data processing (optional)

● It can be connected to a printer or 485 communication interface, and has a USB data transfer interface (SD disk), which can be displayed on a computer and print temperature, humidity and time curves , providing a strong guarantee for data storage and playback during the test process.

Programmable touch screen controller (standard configuration of BPHJ series)

● It adopts color LCD touch control screen and menu-style operation interface, which is intuitive to observe and easy to operate.

● Chinese and English operation interface can be chosen arbitrarily, and the screen can display the real-time temperature and humidity operation curve.

● 120 groups of 99 segments and 999 cycles can be set, and each segment can be set to 999 hours, 59 minutes, and 59 seconds.

● It has a screen lock function to avoid changing test data or shutting down due to human touch.

● With PID automatic calculation function, it can immediately correct the changing conditions of temperature and humidity, making the temperature and humidity control more accurate and stable.

● With RS-232 or RS-485 communication interface, it can design programs on the computer, monitor the test process and perform functions such as switching on and off.

● Install professional control software on the computer, which can monitor and control 30 devices at the same time.

● Real-time analysis and storage of data on the computer, forming an Excel document or Word document for easy printing.

Packing list：host x1, instruction manual x1, packing list x1, certificate x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
