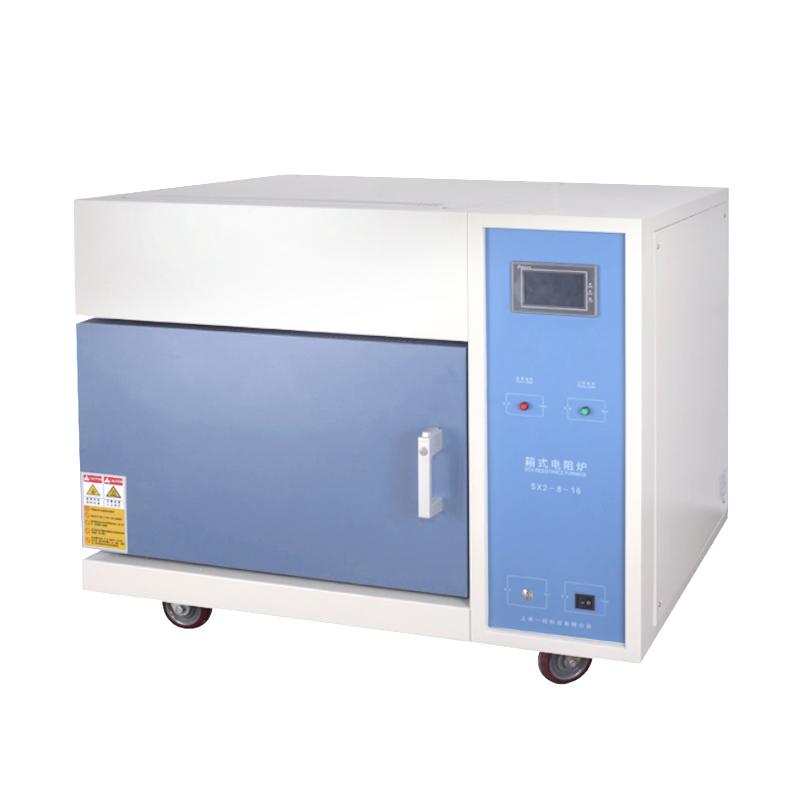

YIHENG SX2-8-16NP programmable Box-Type Resistance Furnace high temperature type 5L

SX2-8-16NP

Programmable Box Furnace

1600 ℃ high temperature Resistance Furnace, multi-stage programmable control, corrosion resistance lightweight furnace, furnace volume 5L, silicon carbide rod, silicon molybdenum rod heating components, microcomputer PID controller.

Product Description

Integrating the company's many years of design and manufacturing experience, it is supplied to laboratories of industrial and mining enterprises, colleges and universities, and scientific research units for chemical element analysis and high-temperature heat treatment such as quenching, annealing, and tempering of small steel parts; it can also be used for metal, stoneware, and ceramics. For sintering, dissolution, analysis and other high temperature heating.

Features

● The unique design of the furnace door makes the operation of opening the door safe and easy, ensuring that the high-temperature hot air in the furnace does not leak out.

● Microcomputer PID controller, easy to operate, accurate, reliable and safe temperature control.

● Corrosion-resistant and lightweight furnace ensures durability. (refractory brick hearth or ceramic fiber hearth optional)

● Excellent door sealing minimizes heat loss and increases temperature uniformity in the furnace.

● Programmable controller, 10 groups of programs, each group can be set to heat up or stay, and provide programmed cycle of temperature, time and heating power. (Programmable box-type electric furnace has this function)

● Multi-segment programmable control can simplify the complex test process and realize automatic control and operation. The furnace door liner and box panel are made of stainless steel, which has the characteristics of corrosion resistance, high temperature and no deformation. (Programmable box-type electric furnace has this function)

security function

● Only need to open the furnace door during operation, the safety switch of the furnace door will automatically cut off the heating power to ensure the safety of the operator.

● There are multiple safety protection measures such as overcurrent, overVoltage and overheating to ensure the safe use of the electric furnace.

● Ceramic fiber board is used as heat insulation material, which has the characteristics of good heat insulation effect and low surface temperature of enclosure.

Furnace selection (users can choose according to their own needs)

● Refractory brick hearth (N series) is made of traditional refractory material, which has the characteristics of wide application range, long service life and high cost performance.

Packing list：host x1, instruction manual x1, packing list x1, certificate x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
