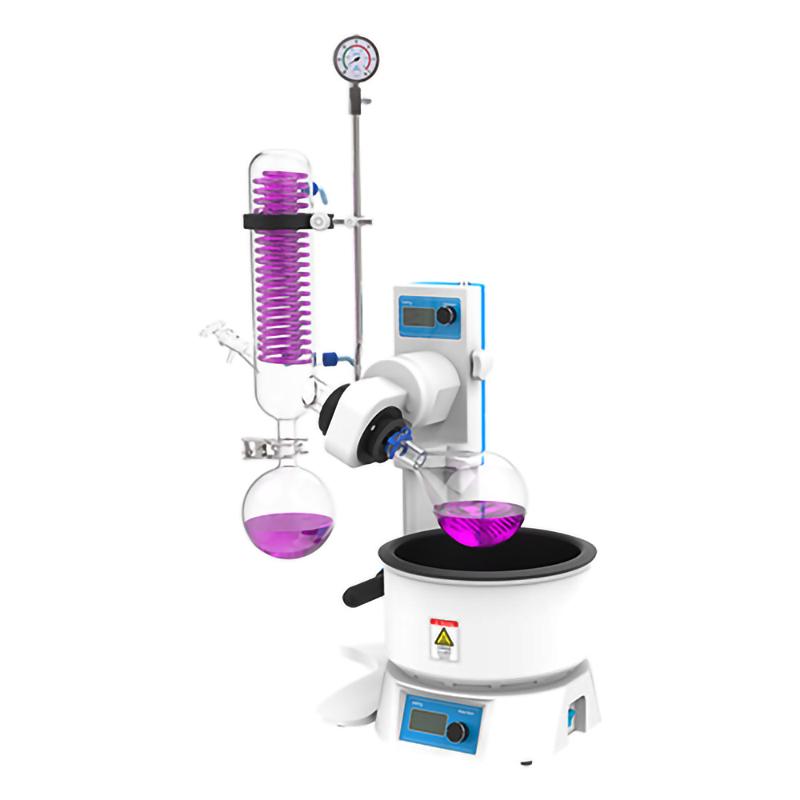

YIHENG RV-211M Rotary evaporator
SE
RV-211M
YiHeng RV-211M Rotary evaporatorSPEC
YiHeng RV-211M Rotary evaporatorDetails
YiHeng RV-211M Rotary evaporatorPacking list
- SKU
- NB038700
- Speed adjustment range
- 20~180rpm
- Temperature range of bath
- RT+5~99°C
- Water evaporation Capacity
- 22ml/min
- Speed setting display
- Knob setting + LCD display
- Lifting method
- manual
- Electric lift function
- without
- Main motor
- Brushless DC
- Condenser
- Serpentine condenser condensing area 0.15m 2, 1L swirl/spin bottle, 1L collection bottle, TS29/38 bottle clip, ball grinding port S35/20
- Vacuum sealing ring
- PTFE + Teflon coatings
- Water bath material
- Stainless steel corrosion resistant coating
- Heating power
- 1000W
- Environment temperature
- 5~35℃
- Bath pan size (inner) φ × H (mm)
- F230 × 130
- Power input
- 220V 50/60HZ
- Power input
- RMB12900
Product Description
The laboratory instrument rotary evaporator is mainly used for continuous distillation of large amounts of volatile solvents under reduced pressure. Especially for the concentration of the extract and the distillation of the receiving liquid during chromatographic separation.
Features
humanized design
● Manual/automatic lifting, simple structure, stable and reliable, easy to operate with one hand.
● LCD display, multi-group data display on one screen, menu-style operation interface, knob-style setting, easy to understand, easy to observe and operate; PID controller, easy and quick to set speed and temperature.
● Unique inclined double-layer serpentine coil design, the cooling area reaches 0.15m2, and the maximum evaporation capacity can reach Max.22ml/min; ensuring effective recovery from a small amount to a large amount of samples.
● Double-layer effective condenser, designed to prevent backflow of the evaporative condenser; and the position of the condenser can be adjusted.
● Professional sealing system design, high elastic PTFE sealing ring, high temperature resistance, corrosion resistance, and durability, the service life is more than three times longer than that of domestic (CN) manufacturers.
● Water bath/Oil Bath double heating membrane type, equipped with anti-dry burning and power-off function, the pot body is made of high-temperature resistant and flame-retardant materials, which can prevent accidents.
security function
● The safety level design of the Water Bath has the function of preventing dry burning and power failure. The body of the Water Bath is made of high temperature resistant and flame retardant materials, which can prevent accidents.
● The pot is equipped with an independent temperature limit alarm system, which will automatically stop working when the temperature exceeds the limit temperature, so as to ensure the safe operation of the test without accidents.
● Double-layer effective condenser, designed to prevent backflow of evaporative condenser.
● Equipped with overVoltage and overload protection devices.
