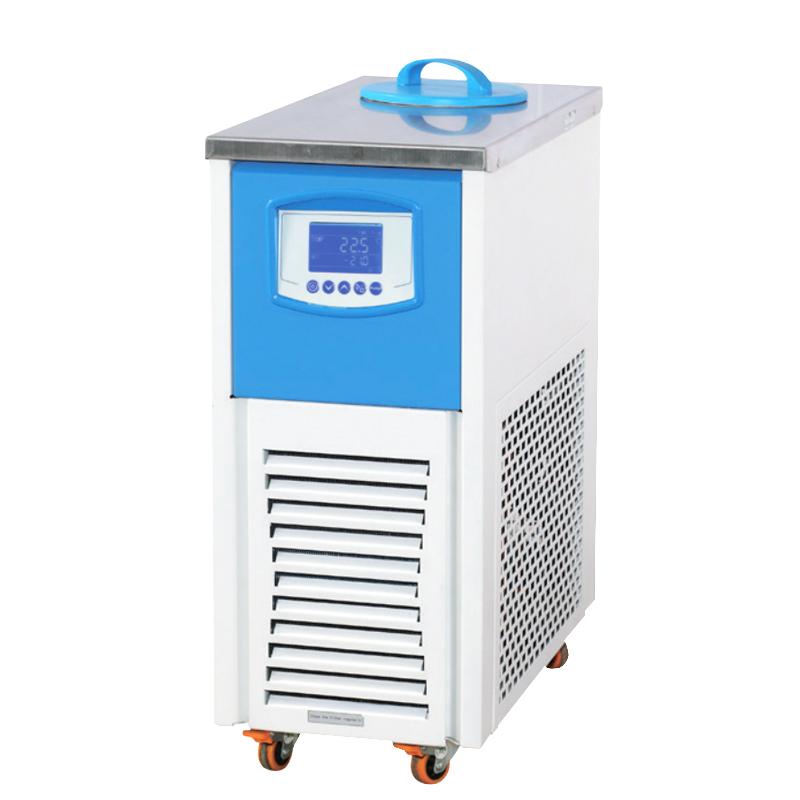

YIHENG BWR-10A Circulating Chiller, volume 10L/pump Flow rate 17L/min
SE
BWR-10A
YiHeng BWR-10A Circulation chill downSPEC
YiHeng BWR-10A Circulation chill downDetails
YiHeng BWR-10A Circulation chill downPacking list
- SKU
- NB038716
- Storage tank Volume
- 10L
- No-load minimum temperature
- -20℃
- Temperature range
- -20~20 ℃/(without heating)
- temperature stability
- ±2℃
- Cooling Capacity (10 ℃)
- 1800w
- refrigerant
- R404A
- Temperature transducer
- pt100
- Controller display
- liquid crystal
- External connection port
- USB/R485 (optional)
- safety protection
- Refrigerator delayed start, complete-built unit leakage, overcurrent, overVoltage protection
- Complete-built unit power
- 1200W
- Power
- AC220V±10%/50HZ
- Circulating pump power
- 60W
- Maximum flow rate of circulating pump
- 17L/min
- head
- 15m
- Liquid inlet and outlet diameter
- f12mm
- Complete-built unit noise
- ≤ 60
- Total Weight
- 60Kg
- Tank opening/depth φ × H
- F250 × 250mm
- Dimensions
- 400 * 540 * 790mm (including wheels)
- Suitable for rotary steamer (Volume * number of units)
- 10L×1
Product Description
A new generation of small circulating coolers, new fluorine-free design, green and environmentally friendly, so that you are always at the forefront of healthy life, introducing and digesting foreign technologies, with precise temperature control, small volume, brand compressors and Circulating Chillers with low noise and fast flow , fast cooling, high efficiency, low energy consumption; not only promotes energy saving, but also has a long service life. Compared with traditional equipment, the cooling time is reduced by 35%.
Features
● Liquid crystal display controller, multiple sets of data displayed on one screen, menu-style operation interface, accurate and reliable temperature control, and can confirm the operation of the instrument at any time.
● Compressor overheating, overload protection, display flashing buzzer alarm and other functions when the temperature of the bath solution is too high or too low and the refrigeration system is overpressured.
● The open bath can be used as a pre-freezing tank and a low-temperature tank, and can be used in constant temperature experiments of acidic and organic solutions.
● Open the lid of the bath, which is convenient for the experimenter to observe the state of the condensate in the bath in real time.
● The heat exchanger tube is made of 304 stainless steel, which is wear-resistant, not easy to break due to vibration, easy to clean, and convenient for experimenters to maintain.
● The front baffle adopts magnetic adsorption design, which can quickly open the cover to clean the dust on the condenser without removing tools.
● The compact structure design can meet the requirements of laboratories with limited space.
● One circulating cooler can cool multiple rotary evaporators at the same time to meet the cooling effect. Realize one machine with multiple functions.
● The optional R485 communication interface is used for computer display or exporting experimental data, which provides a strong guarantee for data storage and playback during the experimental process.
