LANDTEK HT6510D Shore Durometer Portable Shore Durometer

HT6510D

Shore Shore Durometer

R0.1 cone probe; D-type altimeter Hardness Rubber & plastics; with average calculation, Max value latch, underVoltage alarm indication function; with USB and RS232 interface; Bluetooth data output can be purchased separately.

Overview of HT-6510 Shore Hardness Tester

The Shore Hardness Tester is used to measure the indentation hardness of materials. According to the different materials to be tested, there are three types of Shore Hardness Testers: HT6510A, HT6510C, and HT-6510D. BookHT6510D Shore Hardness Tester is a hand-held portable Shore Hardness Tester with a small LCD display showing hardness readings. Different types of Shore Hardness Testers have different indenters and different types of materials to be measured.

Among them, the measurement materials of HT6510A are: soft rubber, soft vulcanized rubber, natural rubber, nitrile rubber, thermoplastic, plastic, thermoplastic elastomer, wax, felt products, leather products, etc.;

The measurement materials of HT6510C are: medium hardness rubber, medium hardness plastic and thermoplastic, thermoplastic elastomer, etc.;

The measurement materials of HT6510D are: hard plastic, hard rubber, hard thermoplastic, thermoplastic elastomer.

Features of HT6510D Shore Hardness Tester

LANDTEK Shore Hardness Tester HT-6510D complies with the following standards: "Test Method for Indentation Hardness of Rubber Pocket Durometer" GB/T 531-1999; "Test Method for Plastic Shore Hardness" GB/T 2411-80; DIN 53505; ISO 868; ISO 7619; ASTMD 2240; JISK7215.

* Average calculation function.

* Maximum value latch function.

* UnderVoltage alarm indication function.

* LANDTEK Shore Hardness Tester HT-6510D uses "USB data line output" and "RS-232 data line output" to communicate with PC.

* LANDTEK Shore Hardness Tester HT-6510D provides Bluetooth data output option.

* Using computer technology, digital filtering technology and many other professional technologies to accurately measure the hardness value of materials.

* Digital display, no parallax.

plan

Shutdown method of HT-6510 Shore Hardness Tester

1. Manual shutdown; 2. Automatic shutdown. At any time, just press the multi-function button until the display shows OFF, and then release the button to manually turn off the power of the whole machine; in addition, if you do not operate or press any button within 60s, it will automatically turn off, saving power Environmental friendly.

Shore Hardness Tester application

LANDTEK HT-6510D Shore Hardness Tester is suitable for on-site hardness measurement of rubber and plastic products.

HT6510D model comparison table

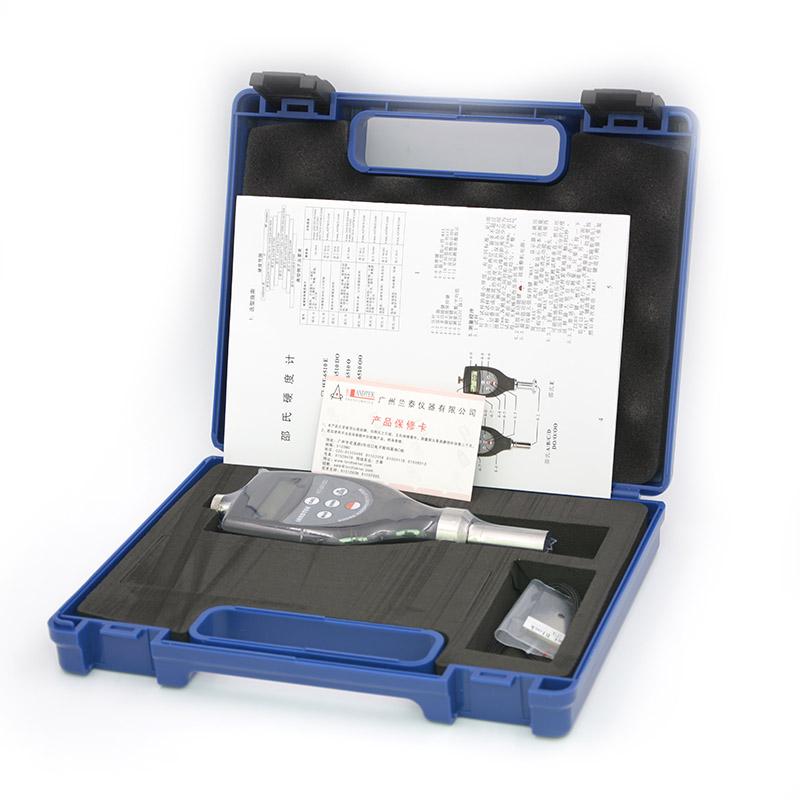

Packing list：host x1, portable box x1, manual x1, Shore stylus length test card x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
