LANDTEK HT6510C Shore Shore Durometer for measurement of indentation Hardness
SE
HT6510C
LANDTEK HT6510C Shore Shore DurometerSPEC
LANDTEK HT6510C Shore Shore DurometerDetails

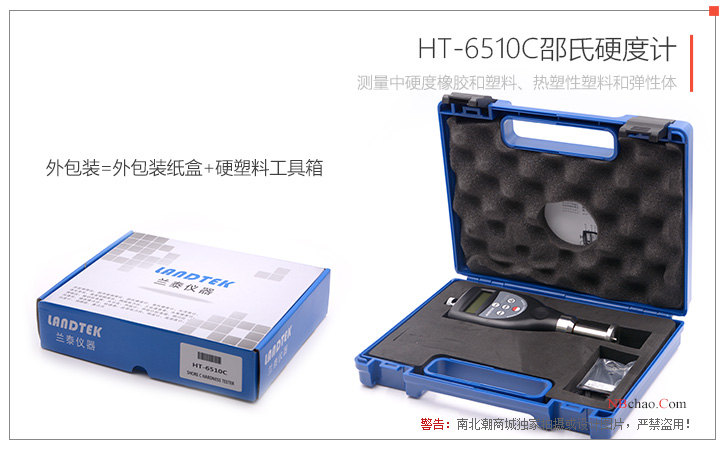

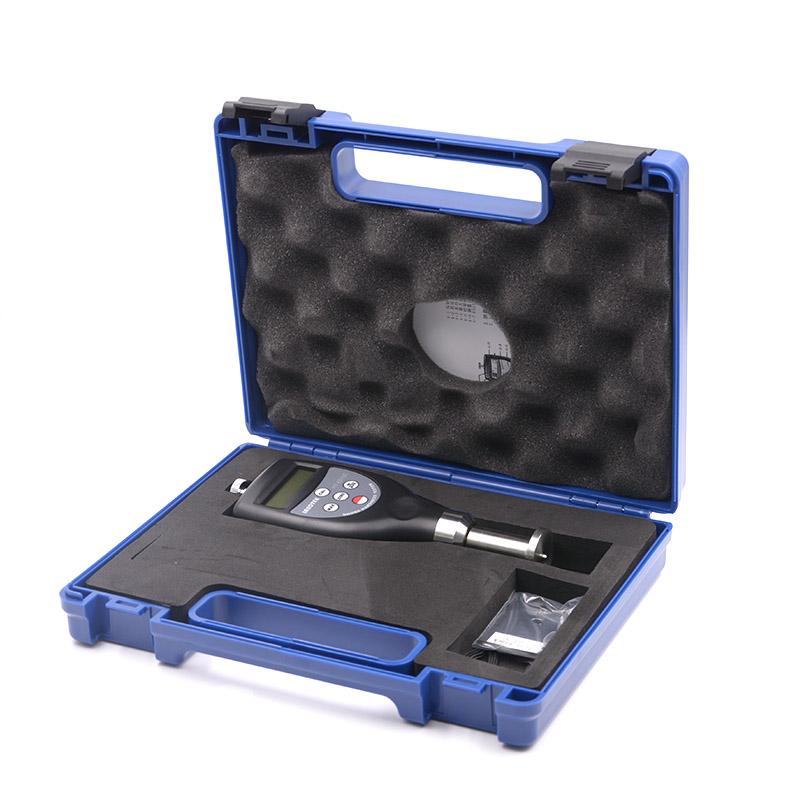

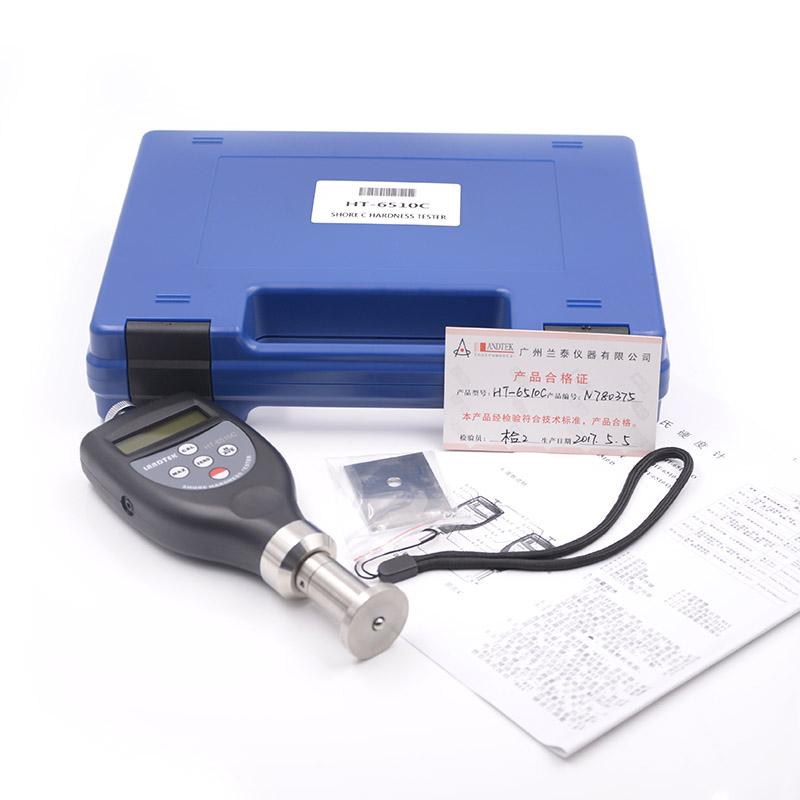

LANDTEK HT6510C Shore Shore DurometerPacking list
- SKU
- NB003873
- Measurement unit
- HC
- Crimping head size

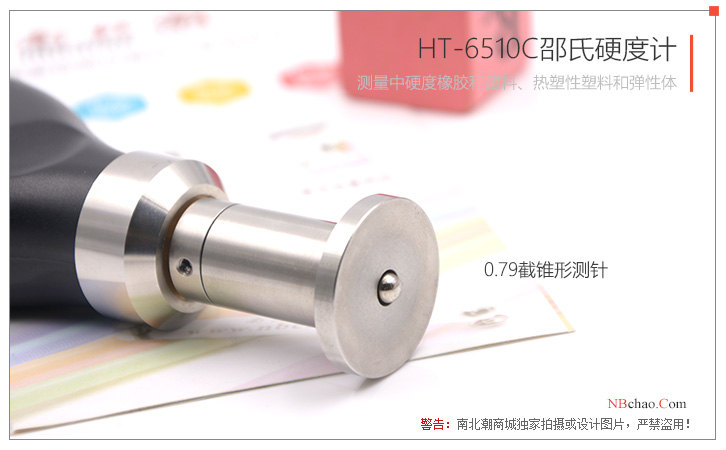

- 0.79 Truncated Cone
- Application
- Medium Hardness Rubber, Medium Hardness Plastics and Thermal plasticity Plastics, Thermal plasticity resilience
- Measurement range
- >90B，<20D
- display parameters
- Hardness/Average/MAX Maximum
- measurement error
- ≤±1H
- resolution
- 0.1H
- Low Voltage prompt
- √
- Operating Environment
- Temperature: 0~50 ℃; Humidity: < 80% RH
- Power Supply

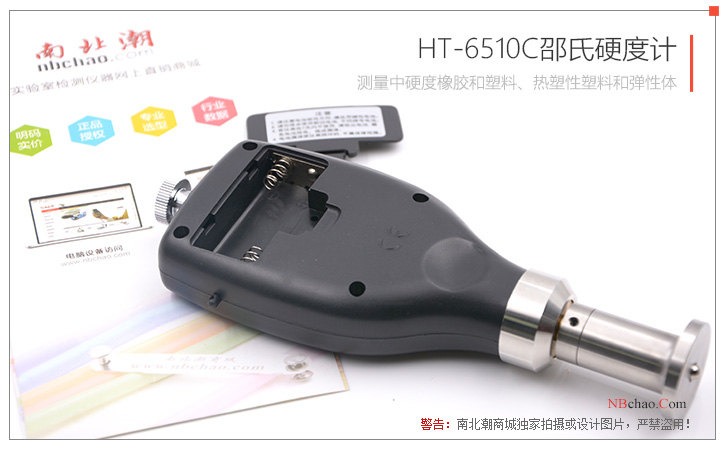

- 4 AA batteries
- Dimension
- 162*65*28mm
- Weight
- 173g
- Optional accessories
- Shore Shore Durometer test stand, rubber hardness testing block (type A/D), RS-232 Connectivity cable and software, Bluetooth adapter and software
Overview of HT-6510 Shore C Hardness Tester

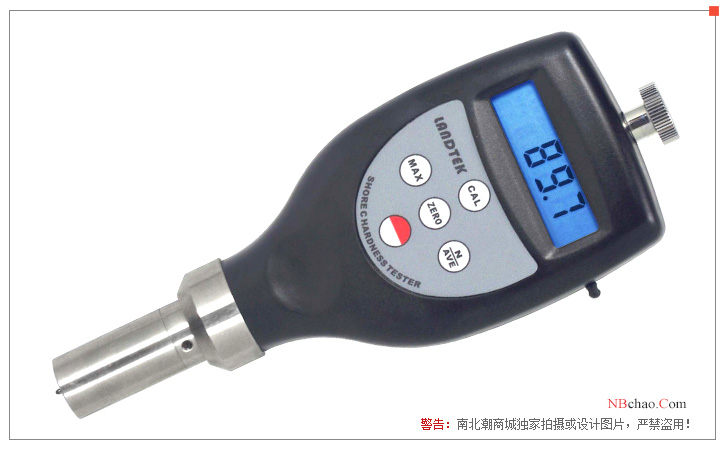

The Shore Hardness Tester is used to measure the indentation hardness of materials. According to the different materials to be tested, there are three types of Shore Hardness Testers: HT6510A, HT6510C, and HT-6510D.

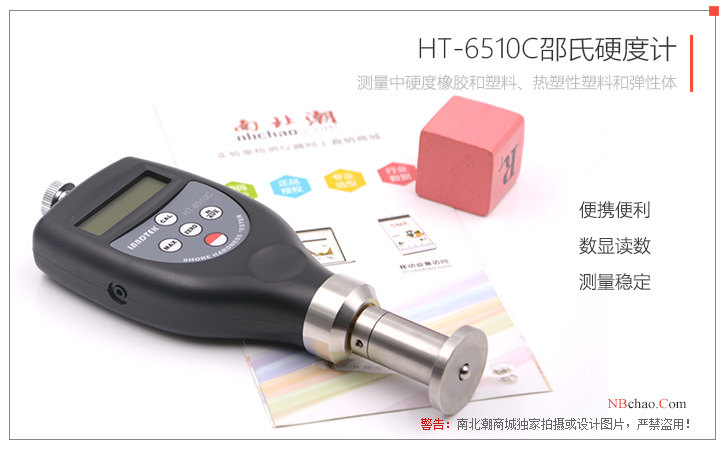

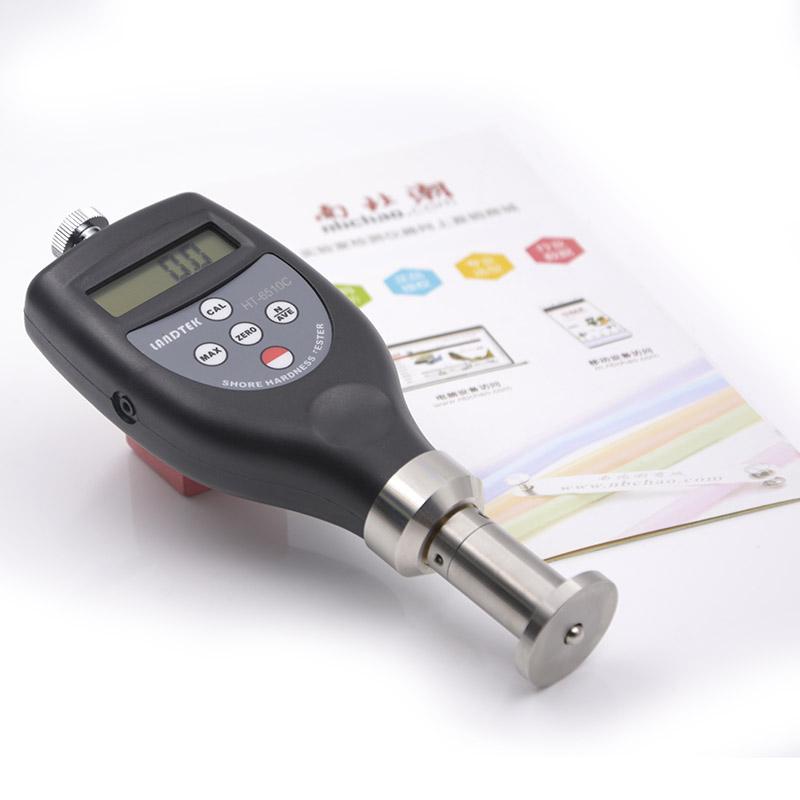

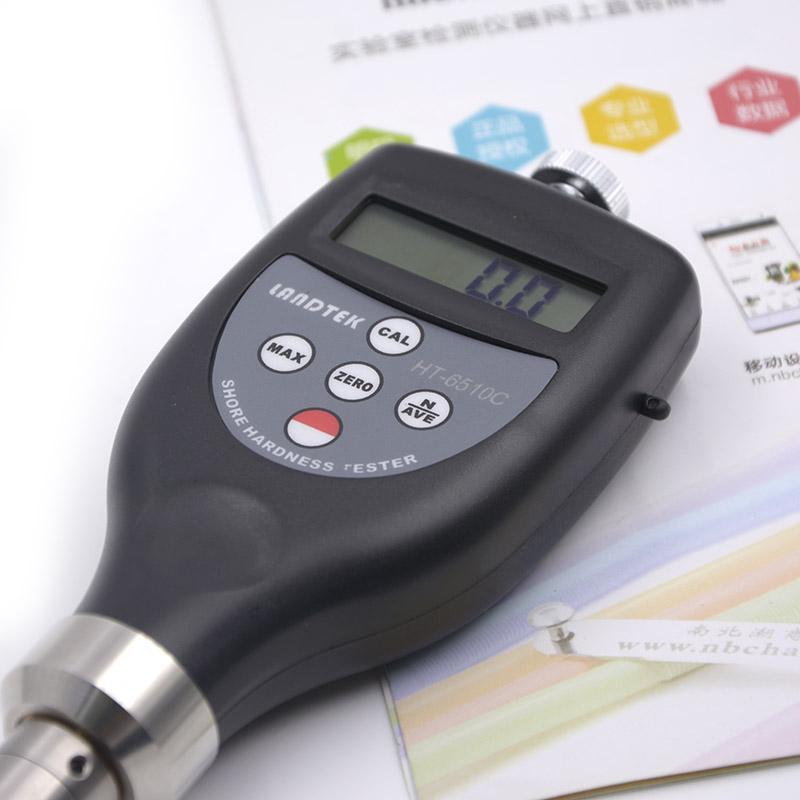

BookHT-6510C Shore Hardness Tester is a hand-held portable Shore Hardness Tester with a small LCD display showing hardness readings. Different types of Shore Hardness Testers have different indenters and different types of materials to be measured.
Among them, the measurement materials of HT6510A are: soft rubber, soft vulcanized rubber, natural rubber, nitrile rubber, thermoplastic, plastic, thermoplastic elastomer, wax, felt products, leather products, etc.;
The measuring materials of HT-6510C are: medium hardness rubber, medium hardness plastic and thermoplastic, thermoplastic elastomer, etc.;
The measurement materials of HT-6510D are: hard plastic, hard rubber, hard thermoplastic, thermoplastic elastomer.
Features of HT-6510C Shore Durometer
LANDTEK Shore Hardness Tester HT-6510D complies with the following standards: "Test Method for Indentation Hardness of Rubber Pocket Durometer" GB/T 531-1999; "Test Method for Plastic Shore Hardness" GB/T 2411-80; DIN 53505; ISO 868; ISO 7619; ASTMD 2240; JISK7215.
* Average calculation function.
* Maximum value latch function.
* UnderVoltage alarm indication function.
* LANDTEK Shore Hardness Tester HT-6510C uses "USB data line output" and "RS-232 data line output" to communicate with PC.
* LANDTEK Shore Hardness Tester HT-6510C provides Bluetooth data output option.
* Using computer technology, digital filtering technology and many other professional technologies to accurately measure the hardness value of materials.

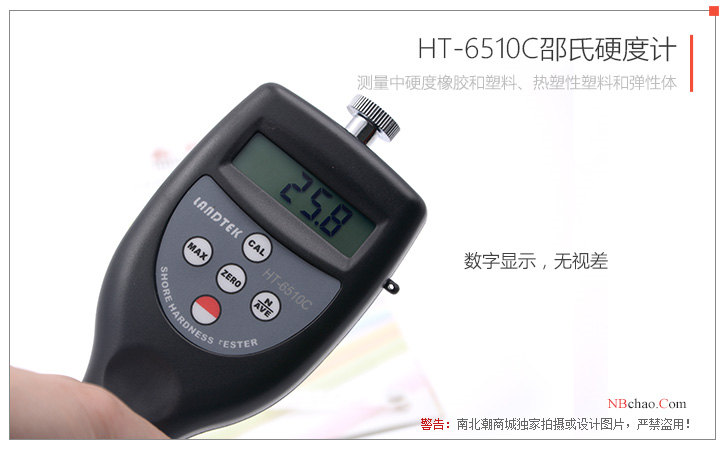

* Digital display, no parallax.
plan
Shutdown method of HT-6510 Shore Hardness Tester
1. Manual shutdown; 2. Automatic shutdown. At any time, just press the multi-function button until the display shows OFF, and then release the button to manually turn off the power of the whole machine; in addition, if you do not operate or press any button within 60s, it will automatically turn off, saving power Environmental friendly.
Shore Hardness Tester application
LANDTEK HT6510C Shore Hardness Tester is suitable for on-site hardness measurement of rubber and plastic products.
HT-6510 model comparison table
| model | Stylus | Applications of material hardness testing | Hardness value |
| A | 0.79 truncated cone | Soft rubber, soft vulcanized rubber, natural rubber, Nitrile rubber, thermoplastics, plastics, thermoplastic elastomers, waxes, felt products, leather products | 20~90A |
| B | R0.1 cone | Moderately hard rubber, thermoplastics, thermoplastic elastomers, paper products, fiber materials | More than 90A, less than 20D |
| C | 0.79 truncated cone | Medium hardness rubber, medium hardness plastics and thermoplastics, thermoplastic elastomers | Greater than 90B, less than 20D |
| D. | R0.1 cone | Hard plastics, hard rubbers, hard thermoplastics, thermoplastic elastomers | More than 90A |
| do | R1.2 hemispherical | Moderately hard rubber, thermoplastics, thermoplastic elastomers, high density textile spindles | Greater than 90C, less than 20D |
| o | R1.2 hemispherical | Soft rubber, thermoplastics, thermoplastic elastomers, very soft plastics and thermoplastics, medium density textile spindles | less than 20DO |
| OO | R1.2 hemispherical | Very soft rubber, plastics and thermoplastics, sponges, foams, low density textile spindles, human and animal tissues | less than 20O |
| E. | R2.5 hemispherical | Hard sponge, EVA | Greater than 90DO, less than 20D |
