China

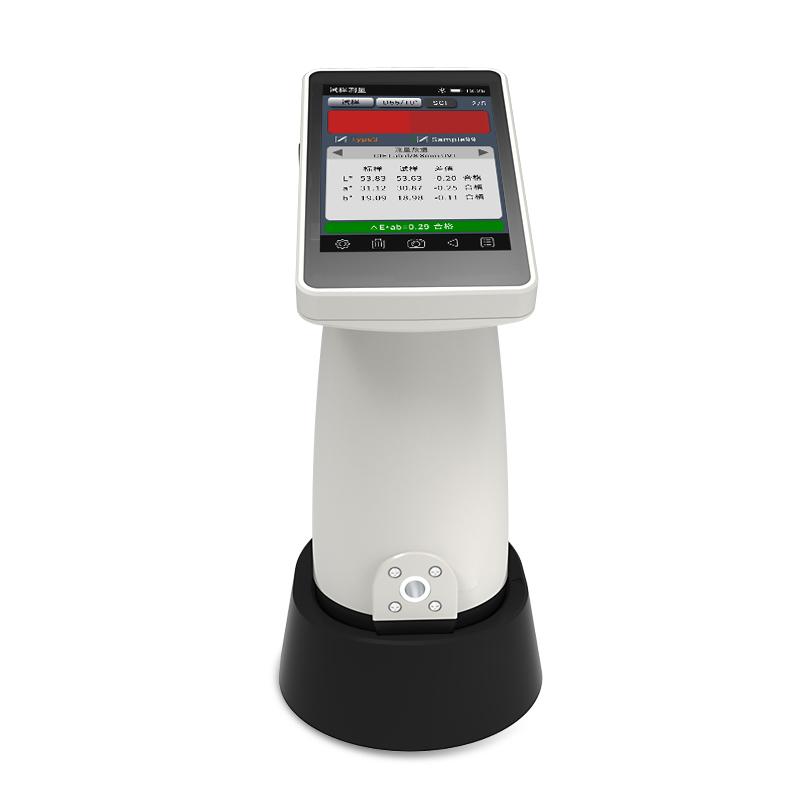

Iwave SR221 Professional Colorimeter Camera Positioning φ 4mm

SE
Measurement diameter φ 4mm, SCI (including specular reflection) /SCE (excluding specular reflection) can be measured at the same time, full Light spectrum LED + dual UV lights, camera positioning, repeability accuracy Delta E * ab ≤ 0.03
$1606.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI

IWAVE SR221 ColoriMeterSPEC

IWAVE SR221 ColoriMeterDetails

IWAVE SR221 ColoriMeterPacking list

SKU
NB038732
Measurement caliber
Φ4mm
Measurement structure
d/8、SCI/SCE
Measurement light source
Light spectrum LED + dual UV lamp
positioning method
camera positioning
Sexual repeability Accuracy
△E*ab≤0.03
Color Space
CIE-Lab,CIE-LCh,Luv,Hunter-Lab,XYZ,Yxy,sRGB,DIN LAB99,CMYK (A/T/E/M/I) 实地密度等
Color difference formula
ΔE*ab、ΔE*ch、ΔE*uv、ΔE*HunterLab、ΔE*CMC(l:c)、ΔE*94、ΔE*00、ΔE*sRGB、ΔE*BFD、ΔE*FCMII、ΔE*DIN99
Available Light Sources
A、C、D50、D55、D65、D75、F1、F2、F3、F4、F5、F6、F7、F8、F9、F10、F11、F12、CWF、U30、U35、DLF、NBF、TL83、TL84
Viewing Angle
CIE 2°/10°
wavelength interval
10nm
Wavelength range
400nm-700nm
Calibration method
automatic
Measurement
Measurement
Display Accuracy
0.01
Inter-instrument Agreement
△E*ab≤0.4
Measurement speed
1.0s
Operation mode
Capacitive touch screen
Display
3.5-Inch full-color LCD screen
Battery life
Fully charged continuous measurement 10000 times
Interface
Type C/Bluetooth
Operating language
Simplified Chinese, Traditional Chinese, English
APP platform
Android/IOS/Windows
store data
The fuselage stores 90 master standards, 9,000 samples, and supports App Mass storage
Volume
184X93x62mm (without base)
Weight
320G (without base)
SR221
ColoriMeter
Measurement diameter φ 4mm, SCI (including specular reflection) /SCE (excluding specular reflection) can be measured at the same time, full Light spectrum LED + dual UV lights, camera positioning, repeability accuracy Delta E * ab ≤ 0.03
Iwave SR221 Professional Colorimeter Camera Positioning φ 4mm Picture

Detail Figure 1 of the Waifu SR221 Spectrophotometer

Detail of the Waifu SR221 Spectrophotometer Figure 2


Detail Figure 4 of the Waifu SR221 Spectrophotometer

Detail Figure 5 of the Waifu SR221 Spectrophotometer

Detail of the Wolfford SR221 Spectrophotometer Figure 6

Detail Figure 7 of the Waifu SR221 Spectrophotometer

Waifu SR221 Spectrophotometer Details Figure 8

Detail Figure 9 of the Waifu SR221 Spectrophotometer

Detail Figure 10 of the Waifu SR221 Spectrophotometer


FAQ
QI want to buy a Colorimeter, mainly used to detect the Color conformity of plastic products, do you have a recommendation?
A IWAVE SR221 Colorimeter is recommended. It adopts a small diameter of φ 4mm and a d/8 structure, which is suitable for the measurement of Color on small areas or irregular surfaces such as plastic parts. The instrument has high repeability accuracy (Delta E * ab ≤ 0.03), which can accurately detect subtle color differences and ensure that your plastic products are stable between batches. The camera positioning function also makes the measurement point more accurate and easy to operate.
QIs there a Colorimeter suggestion for testing the masterbatch?
A Measure the particle state of the color masterbatch or the regular form after the finished product?
