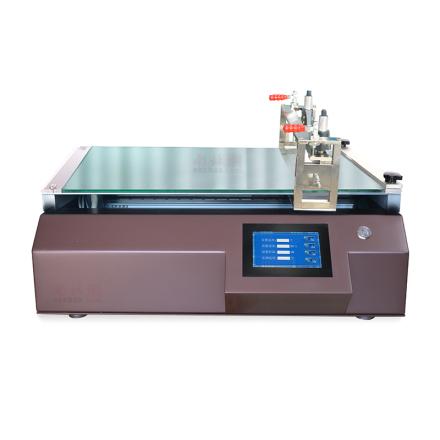

Specifications
| Coating method | Drawdown blade |
| Feeding | With automatic feeding system |
| Drawdown blade type | Integrated drawdown blade |
| Drawdown blade Accuracy | ±0.003mm |
| Length of drawdown blade | 400mm |
| Drawdown blade material | 304 stainless steel |
| Spreader thickness range | 0.001-10Mm adjustable |
| Coating speed | 5-200Mm/s (< 5mm/s can be customized) |
| Coating size | 300 * 400Mm (Miscellaneous size can be customized) |
| Spreader distance control | The number can be set arbitrarily within the range of 1-400mm |
| Host Power Supply | 220V 50HZ |
| Dimension | 626*410*520mm |
| Net Weight | 45KG |
| speed control | Infinitely variable speed |
| Bottom plate material | aluminum alloy |
| Substrate clamping method | Mechanical fixture |
| Control mode | Touch screen control |
| Feeding principle | Air source pressure flows out |
| Feed Sport Mode | Reciprocating linear motion |
| Feeding back and forth traverse speed | 2-150mm/s |
| spit Volume | Adjustable (by adjusting the air pressure and the running speed of the discharge port) |
| Shaft transmission mode | Timer belt |
| Feeding system air source | 0.6Mpa, can be connected to the trachea of φ 8 (self-equipped) |
| Power Voltage of charging system | 220V,50Hz |
| Tank pressure | Maximum withstand 8Mpa |
| Material of feeding barrel | 304 stainless steel with a wall thickness of 4mm |
| Feeding bucket configuration | Safety valve, pressure regulating valve, pressure gauge, discharge valve |
| Optional Accessories | Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle |
| customizable function | Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader |
Packing list
Film Applicator X1, Drawdown blade X1, Automatic feeding system x1, Product manual X1
After-sales instructions
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
