Muffle furnace SX2-10-12T JINGRUI 1000 ℃ design temperature Box-Type Resistance Furnace 10kw Power

SX2-10-12T

Box Furnace

Introduction

Muffle furnace SX2-5/10-12T is a Resistance Furnace with iron-chromium-aluminum alloy heating wire as heating element in the elite SX2 series, with two power of 5kw and 10kw. SX2-10-12T is 10Kw, the furnace structure of the muffle furnace is a one-piece design structure, the furnace is durable, lightweight, high temperature resistant ceramic fiber material. Ceramic fiberboard also has a good thermal insulation effect. The muffle furnace also protects and prolongs the service life of the electric furnace by installing a cooling fan. In addition, the safety design of the muffle furnace is also in place, the heating rate is ≤ 40°C/min, and the furnace door is automatically broken to protect the system and protect the safety of the operator.

Features and advantages

1）The muffle furnace SX2-10-12T has a design volume of 16L and a design temperature of 1200°C.

2) The structure of the elite furnace door is applied to the technology, and the fully sealed furnace door can ensure that the high temperature in the furnace does not leak, which not only saves energy, but also prolongs the service life of the electric furnace.

3）The aluminum alloy heating wire of muffle furnace SX2-10-12T is a good brand of tempered brand furnace wire, which is cost-effective, stable and widely used.

4) Good ceramic fiber furnace, the heat preservation effect is quite good.

5) Installed with a cooling fan to prolong the service life of the electric furnace.

6）Muffle furnaceThe thermocouple is made of stainless steel armor structure, which has high temperature control accuracy and long service life.

Actual picture of the product

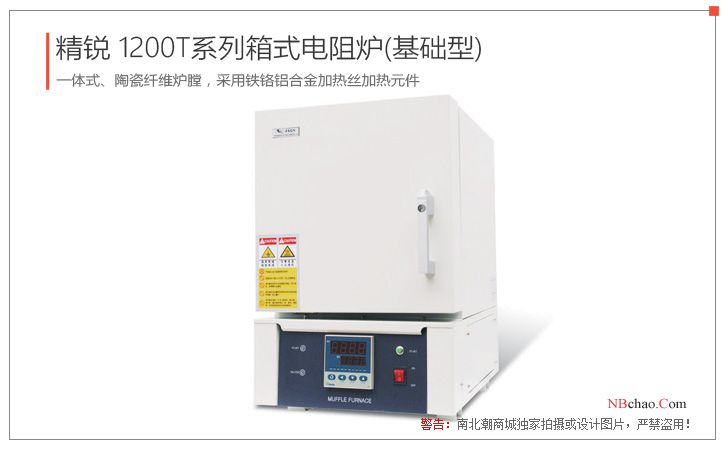

The overall diagram of the elite muffle furnace SX2-5/10-12T

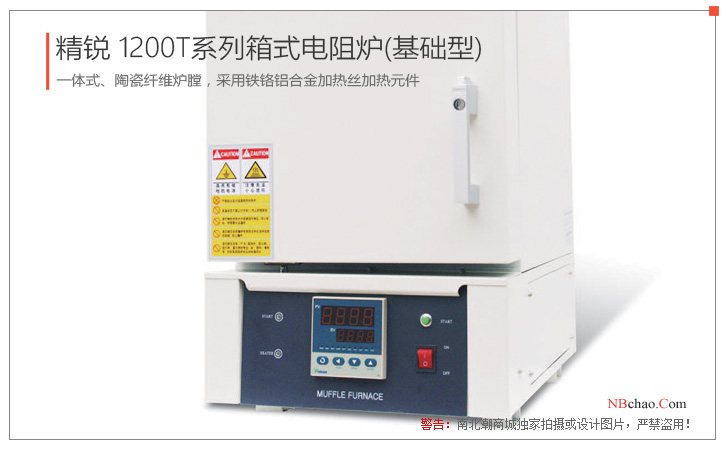

Elite muffle furnace SX2-5/10-12T control panel diagram

Packing list：Resistance furnace x1, manual x1, certificate x1, Encasement box x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
