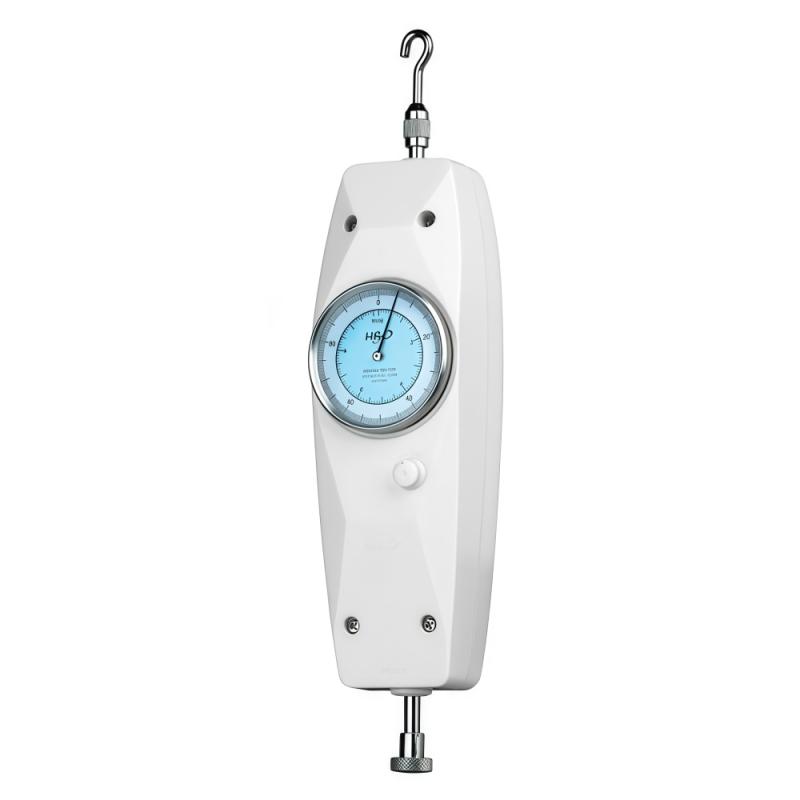

Pointer Force Gauge NK-30 Hypertherm Small Force Gauge

NK-30

Force Gauge (Pointer)

Pointer type, Maximum Measured value 30N 3kg, Minimum Measured value 3N 0.3kg, Load Graduation 0.2N, 0.02kg, error of indication +/- 1%, push-pull rod stroke 10mm.

Introduction

Haibao Instruments NK-30 pointer push-pull gauge is a small portable push-pull gauge with high precision, simple operation, and can display Newton and kilogram units at the same time, and is convenient to carry. The NK-30 pointer push-pull gauge is a white case with a switch button that can be used for switching between peak load measurement and continuous load value measurement, which can conveniently switch between different load values.

The maximum value that can be measured by NK-30 pointer push-pull gauge is 30kg.

Product function structure diagram

The structure of Haibao Instruments NK-30 pointer push-pull gauge includes: dial, pointer, dial adjustment ring, switch knob, push-pull rod. The details are as follows:

Appearance and Specification Dimensions

Features

1. Appearance design, white hard plastic shell, hand-held design, small size, simple structure, and easy operation.

2. Pointer-type indication, convenient, accurate and high-precision reading.

3. NK-10/20/30/50 pointer push-pull force gauge has dual display of two units (N, kgf), no need for unit conversion.

4. The peak hold and load real-time value indication can be switched freely, which is easy to use.

5. Reliable and exquisite packaging, easy to transport, store and maintain.

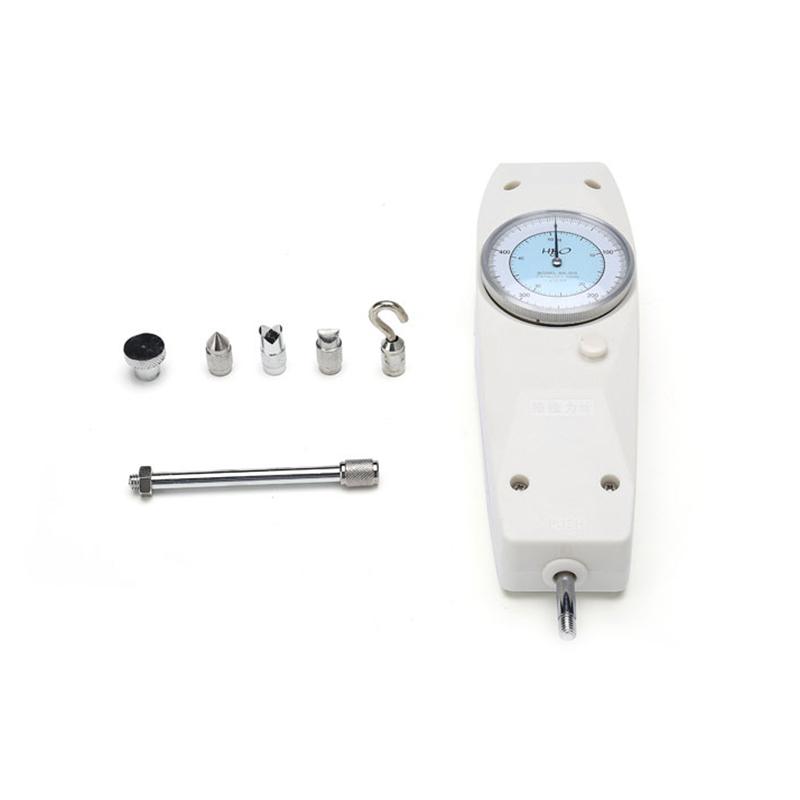

Pictures

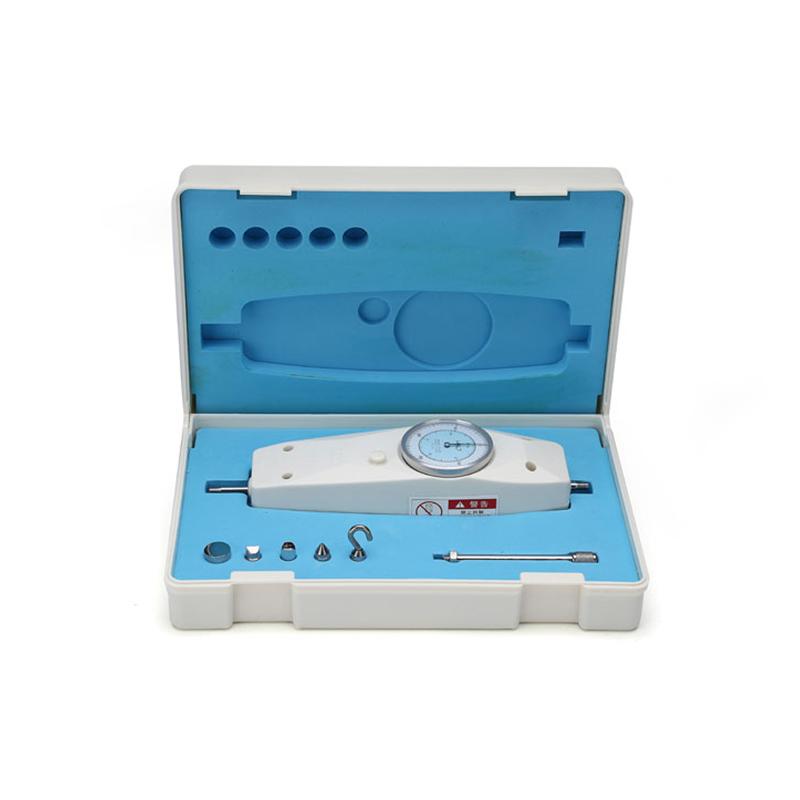

Packing list：Force Gauge x1, Certificate x1, Manual x1, Instrument case x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
