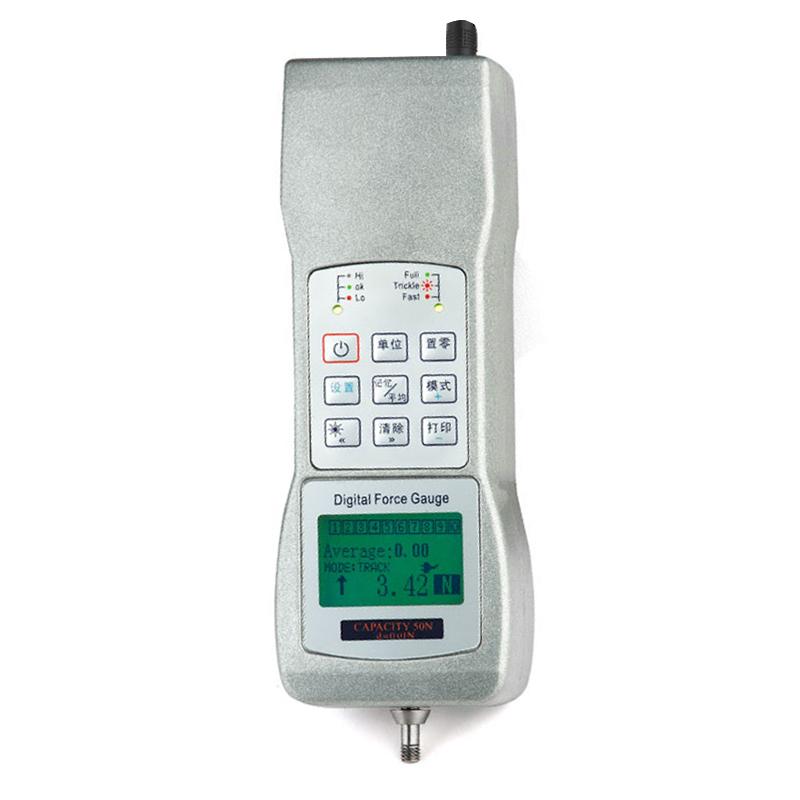

Small Force Gauge HF-200 Hypertherm with real-time view of test data

HF-200

Force Gauge (Digital Display)

Digital display, Maximum Measured value 200N, 20kg, 44lb, Minimum Measured value 0.1N, 0.01kg, 0.01lb, built-in Sensors units Kgf, N, Lbf, automatically calculate the average value of stored data, MIN Minimum, MAX Maximum.

product description

HF-200 small push-pull force gauge is a push-pull force gauge with a built-in sensor. The corresponding maximum load value is 200N . The power supply required for the work of the push-pull dynamometer, LCD digital display, can view the test data in real time, and can optimize the experimental operation in time.

The small push-pull gauge HF-200 has a communication interface, can be connected to a printer to print data, and supports the first peak hold mode, which can be freely switched among N, kgf, and lbf without manual conversion.

Features

1. The unique function of holding the first peak during the test.

2. HF-200 small push-pull force meter unique key action force and resilience test.

3. The neutral acceleration value can be set.

4. The accuracy and resolution are very high, and the sampling speed can be as high as 960HZ.

5. Freely set the upper and lower deviation values, automatic sound alarm and level signal output.

6. Display the test direction (pull +, push -).

7. Serial port communication, computer display force value curve, force value table and other display methods, and data processing, such as statistical analysis.

8. Automatic shutdown without operation (freely set the time from 0 to 99 minutes).

9. Peak hold and peak release functions (can be set from 0 to 99 seconds).

10. HF-200 small push-pull force gauge adopts dot-matrix liquid crystal display and green backlight screen.

11. With large-capacity storage function, it can store 200 sets of test data, and automatically calculate the average value, minimum value and maximum value of the stored data.

12. The operation interface can be displayed in Chinese or English, and the displayed test content can be flipped 180 degrees, which is convenient for multi-angle measurement.

13. Serial port output, which can print the stored test data and the maximum, average and minimum values.

Pictures

Test instruction

1. Set the measurement mode, force value unit, etc. first.

2. After setting the basic parameters, start the test, firmly hold the push-pull gauge with both hands, and keep the direction of the push or pull force consistent with the axis of the test rod during the test.

3. After the test is completed, unload the load slowly, turn off the power of the HF-200 small push-pull gauge, remove the test head, clean the push-pull gauge and all parts and put them back into the toolbox for the next use.

patent certificate

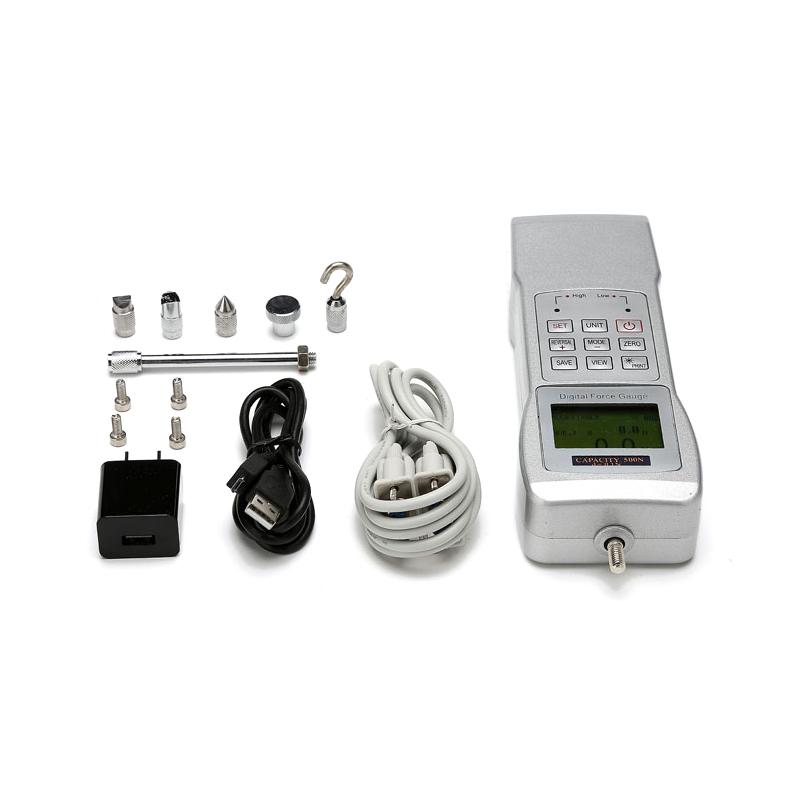

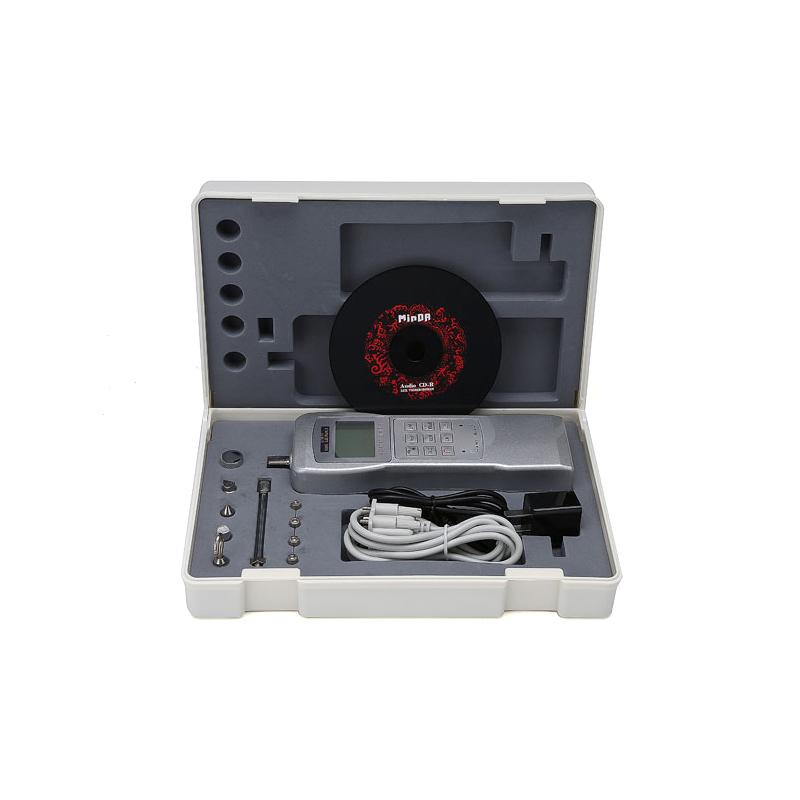

Packing list：Force Gauge x1, Certificate of Conformity x1, Warranty Card x1, Manual x1, Instrument Case x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
