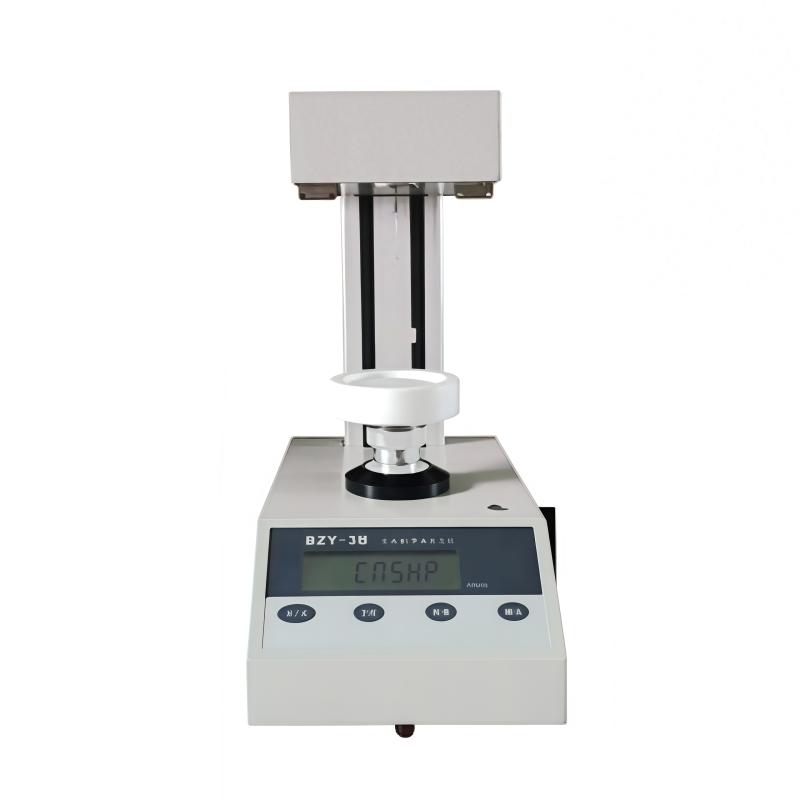

Pingxuan BZY-3B semi-automatic Surface Tensiometer 0~400mN/m

Manual lifting, a set of Linear dispersion software is provided free of charge, measuring range 0~400mN/m, and Linear dispersion diagram, data and time of tension value are displayed at the same time.

$1361.00/set

PromotionLoading...

Coupon

Model：

BZY-3B

Certificate

PingXuan

Contact

Details SPEC Con

PingXuan BZY-3B Semi-automatic Surface TensiometerSPEC

PingXuan BZY-3B Semi-automatic Surface TensiometerDetails

PingXuan BZY-3B Semi-automatic Surface TensiometerPacking list

SKU: NB038927

Measurement method: Platinum plate, ring method (choose one of the two)

Surface tension Measurement range: 0~400mN/m

Minimum resolution: 0.1mN/m

standard error: ± 0.1mN/m (secondary distillation water at 20 ℃)

Sexual repeability: ±0.1mN/m

Display: LCD

Platform lifting method: Manual: divided into fast and fine-tuned second gear

signal output interface: RS232C

Power: AC220V±10V

Dimensions: 300*290*400mm

Net Weight: 7kg

Linear dispersion software: A set of Linear dispersion software is provided for free. By installing the program to the computer, the Linear dispersion diagram, data and time of the tension value can be displayed at the same time. Data can also be saved for customer inquiry.

BZY-3B

Semi-automatic Surface Tensiometer

Introduction

Surface Tensiometer BZY-3B, easy to operate, low price.

* Manual lifting, one step in place.

* The repeatability can be measured quickly.

* A set of curve software is provided free of charge. By installing it on the computer, it can simultaneously display the curve graph, data and time of the tension value. Data can also be saved to facilitate customer inquiries.

FAQ

QOur laboratory wants to measure the surface tension of some liquids such as water and alcohol. It requires simple operation and affordable price. Do you have any recommendations?

A BZY-3B semi-automatic surface tensiometer is easy to operate, inexpensive, manual lifting in one step, can quickly measure Repeatability, suitable for daily liquids such as water and alcohol surface tension detection, cost-effective.

QWe do Coating research and development, we need to measure surface tension to evaluate wettability, but the budget is limited, which instrument should we choose?

A BZY-3B supports platinum plate or ring measurement, the range is 0~ 400mN/m, the error is small, Repeatability is good, Linear dispersion software can display and save data in real time, suitable for common applications such as wettability evaluation in Coating research and development, economical and practical.

QWe need an instrument that can measure surface tension and record data Linear dispersion, the function is not too complicated, how to choose?

A BZY-3B is suitable. It comes with free Linear dispersion software, which can be installed on the computer to display the tension value Linear dispersion map, data and time, and can also save queries. Manual lifting and lowering of speed and speed is easy to operate, just to meet the basic measurement and data recording needs.
