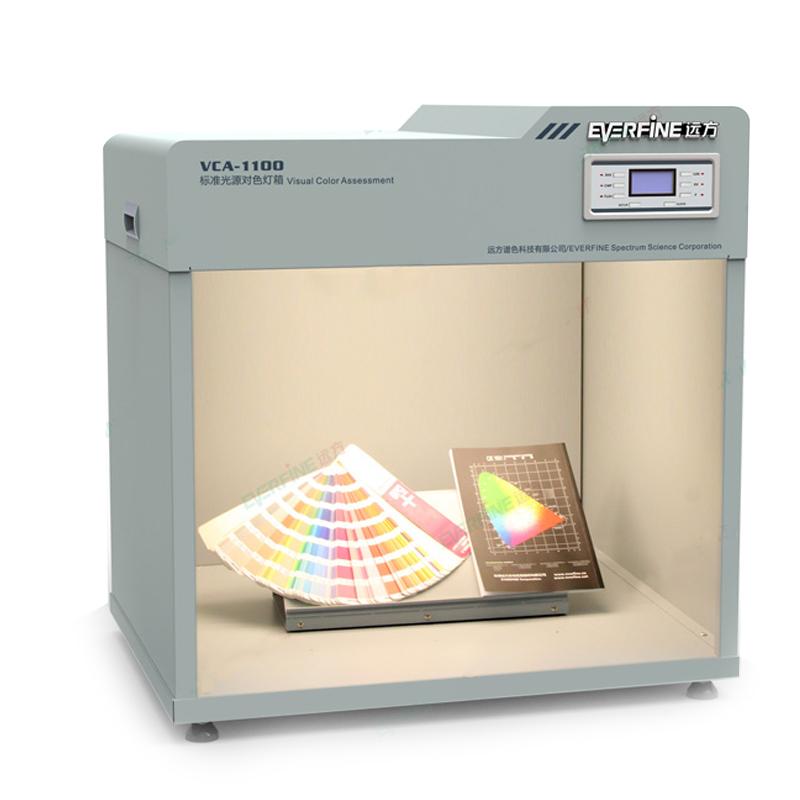

EVERFINE VCA-1100 Standard light source Color Assessment Cabinet Color Assessment Cabinet 6 Light source

VCA-1100

Standard light source Color Assessment Cabinet

6 Light source, EVERFINE patented technology, to achieve good diffuse reflection and uniform lighting standard environment, no preheating, no flashing, UV light can be added to any white Light source; equipped with a 45 degree observation table.

The standard light source color matching light box adopts the internationally renowned brand light source, and is matched with the Yuanfang accurately match and accurately simulate the light color performance required by multiple standards. According to ASTM, Chinese and foreign standards such as CIE, ISO, GB and JJG provide solid technical guarantee for the consistency and reliability of color comparison.

Features

• Configured with 6 standard light sources;

• Using Yuanfang's patented technology to achieve good diffuse reflection and uniform lighting standard environment;

• No need for preheating, no flickering, no need for active heat dissipation, high luminous efficiency, and fast and reliable color evaluation;

• UV light combined with white light source is used to detect and evaluate fluorescent whitening agents, fluorescent dyes and pigments, etc.;

• Equipped with a 45-degree observation platform to achieve 45/0 observation conditions.

The main parameters

1) Type of light source:

    D65 light source, correlated color temperature 6500K, international standard artificial daylight;

    CWF light source, correlated color temperature 4150K, cool white fluorescent lamp; American commercial or office light source;

    TL84 light source, correlated color temperature 4000K, European, Japanese, and Chinese commercial lighting sources;

    U30 light source, correlated color temperature 3000K, warm white fluorescent lamp; American commercial light source;

    F light source, correlated color temperature 2700K, incandescent lamp, simulated home hotel lighting, sunset light, sunset yellow;

    UV light source, peak wavelength: 365nm, UV light source;

2) UV ultraviolet light can be added to any white light source;

3) Equipped with a 45-degree observation platform, refer to ISO105 observation conditions;

4) Power supply: 220V/50Hz, <2.5KW;

5) Volume/weight: about 730mm*560mm*640 mm/30Kg.

typical application

Printing, fabrics, plastic rubber, leather, etc.

Packing list：Host X1, product quality assurance book X1, product certificate X1, mass feedback single X1, CD X1, user manual X1, quick operation guide X1, power cord X1, fuse X1, white gloves X1, 45 ° observation table X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
