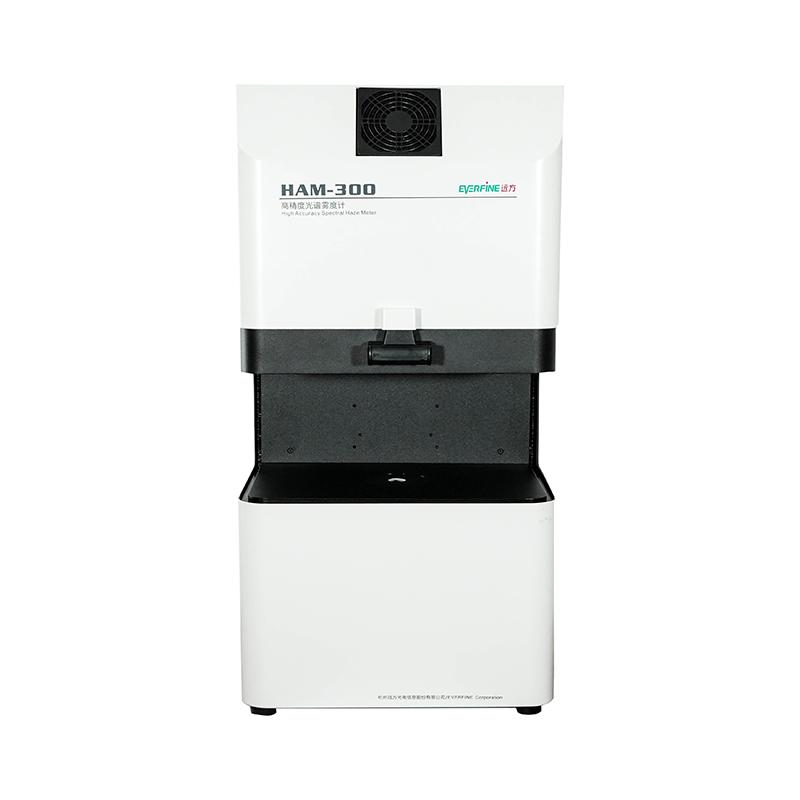

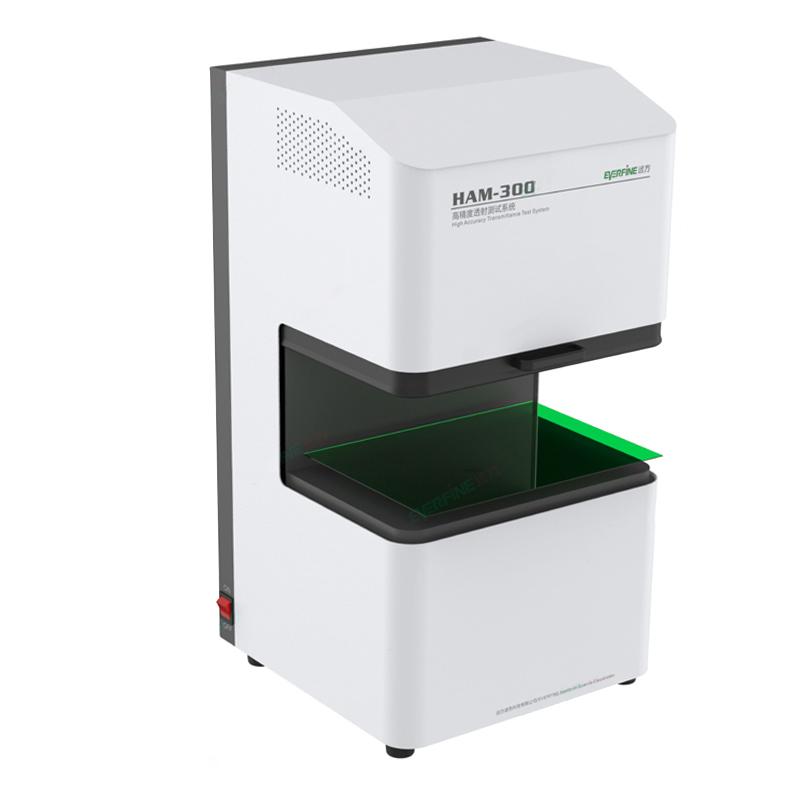

EVERFINE HAM-300 High-precision Light spectrum Haze Meter 380-1000nm

HAM-300

High-precision Light spectrum Haze Meter

Using 380nm-1000nm Light spectrum, high measurement accuracy, a variety of measurement geometries, built-in Light source standards, built-in integrating sphere, a variety of fixtures or accessories optional, horizontal or vertical placement, for material total transmittance, Light spectrum light transmitter at different wavelengths, haze and material under specific Light source light color performance test

HAM-300 high-precision spectral haze meter is mainly used to test the total transmittance of materials, spectral transmittance at different wavelengths, haze and light color performance of materials under specific light sources, and solve samples such as AG, AR glass and optical films. The performance evaluation is designed according to the requirements of ASTM D1003, GB/T 2410, ISO14782, JIS K7136, JC/T2130-2013, JIS K7105-81 and other standards. It is suitable for material analysis and inspection in consumer electronics, plastics, glass, film and other industries.

main feature

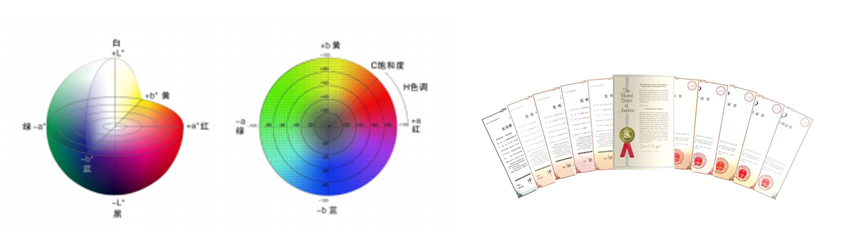

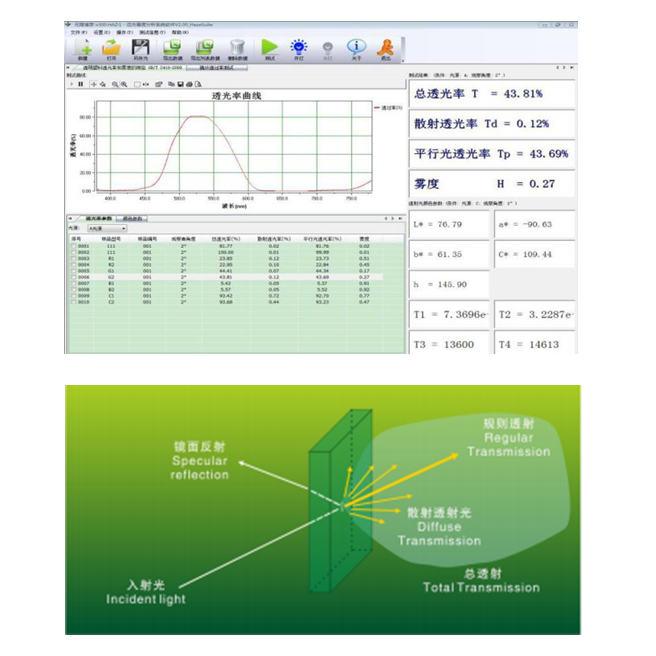

• Comprehensive analysis of transmission performance: Use a 380nm-1000nm spectrometer to more comprehensively evaluate the optical properties of the material: measurement of total light transmittance, haze, scattered light transmittance, parallel light transmittance, color coordinate Lab, color temperature, yellowing index, etc. , wide measurement band range;

• High measurement accuracy: Nearly 30 years of experience in the development and production of spectrometers and dozens of patented technologies enable the system to have excellent spectral transmittance measurement and spectrophotometric colorimetry performance with high measurement accuracy.

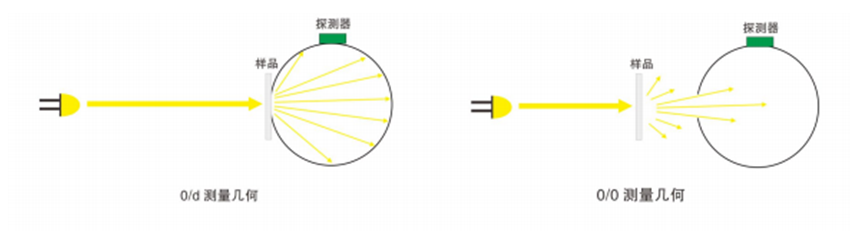

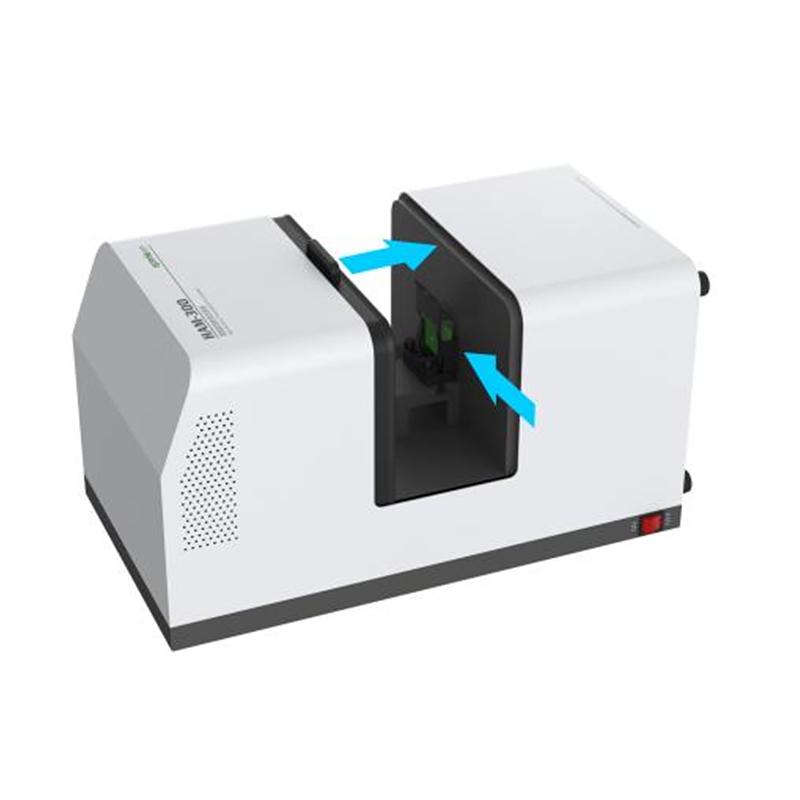

• Various measurement geometries: integrated design to meet the testing needs of samples of different sizes;

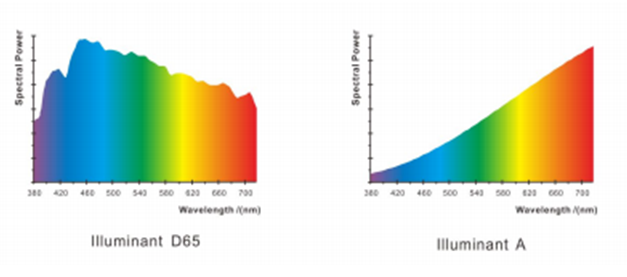

• Built-in multiple light source standards: designed to meet the requirements of many international and domestic (CN) standards such as ASTM, ISO, GB/T, JC/T, and JIS K;

• The built-in integrating sphere uses Yuanfang’s unique Sibelen coating, which has more stable performance and longer life;

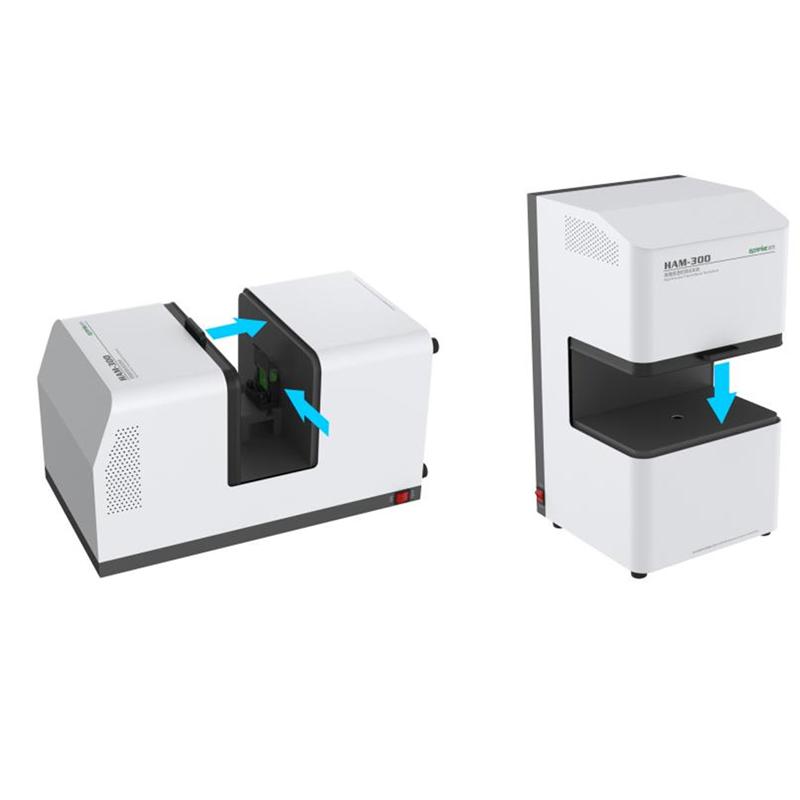

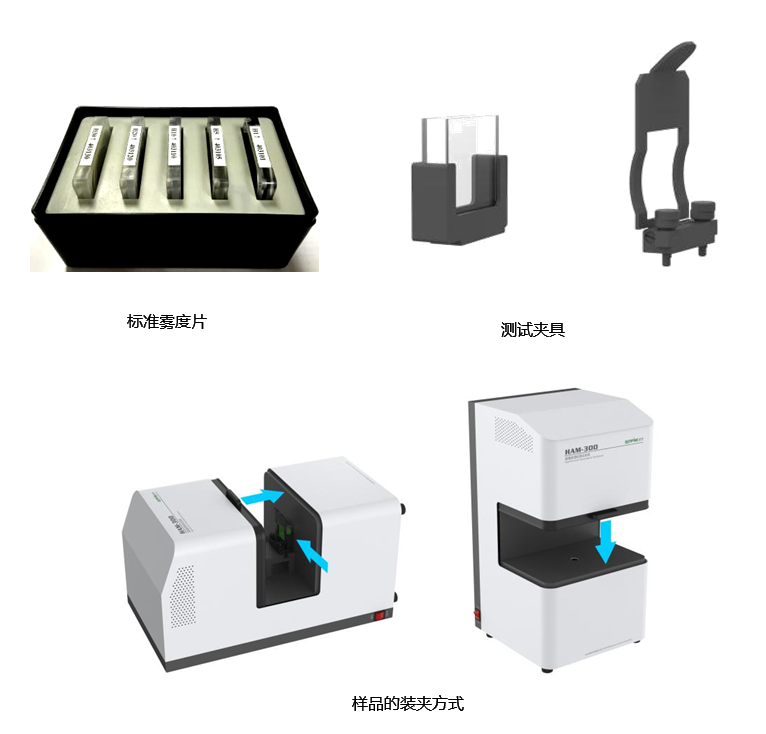

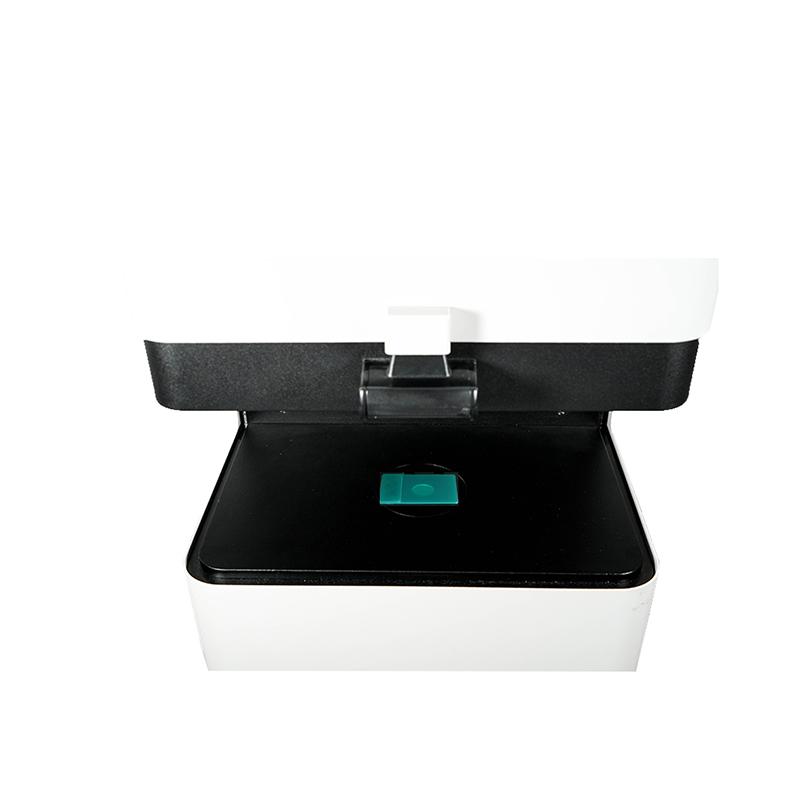

• A variety of fixtures or accessories are available, placed horizontally or vertically, to meet the measurement requirements of liquid and solid samples;

typical application

light diffusion plate

Optical film

3C cover

glasses lenses

Glass

Packing list：Host X1, product certificate of conformity X1, product quality assurance book X1, mass feedback sheet X1, user manual X1, power cable X1, CD X1, USB communication cable X1, solid sample fixture X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
