EVERFINE GSC-20 Series Gloss Color Analyzer color reader Glossmeter
GSC-20
EVERFINE GSC-20 Gloss Color AnalyzerSPEC
EVERFINE GSC-20 Gloss Color AnalyzerDetails
EVERFINE GSC-20 Gloss Color AnalyzerPacking list
- SKU
- NB038954
- Measurement optical path
- 45/0 - Ring lighting, vertical reception
- Light source
- Full color LED array
- Bandwidth
- 10nm
- Wavelength resolution
- 2nm
- Measurement range
- 0~200%
- Resolution
- 0.01%
- Inter-instrument Agreement
- ΔE*ab<0.2
- Repeatability
- <0.02ΔE*ab
- Lighting/Test Aperture
- Φ11/8mm
- Gloss Measurement Range
- 0—1000GU
- Gloss error of indication
- ±1.0 GU（0-100GU）、 ±1%（100-1000GU)
- Gloss Repeatability
- 0-100GU:±0.2GU； >100GU:0.2%
- Power
- Power supply: Li-ion rechargeable battery, 3.7V/5000mAh
- Operating Environment
- 5 ℃~ 40 ℃, 20~85% RH, non-condensing
- interface
- USB、WIFI
- Working time
- 2000 measurements

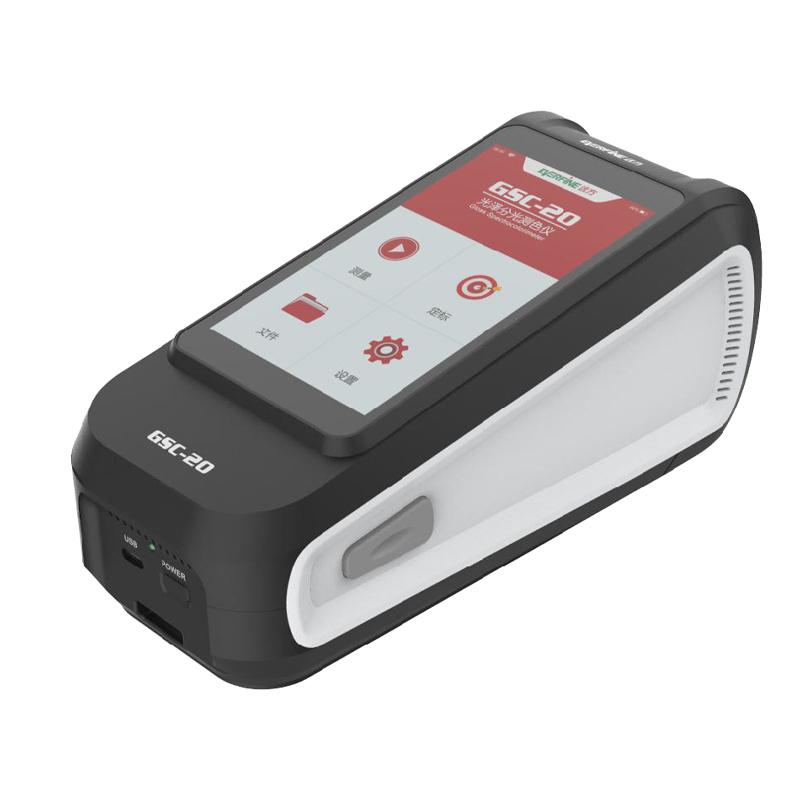

GSC-20 Gloss Colorimeter Analyzer adopts 45/0 geometry to measure color and 60° to measure gloss. It is equipped with a color touch screen. It can independently collect and store data, or upload it to a personal computer for data analysis. It can be used in laboratories, production and On-site measurements are very convenient. The instrument has fast measurement and stable performance, and is especially suitable for quality control and inspection of appearance color and gloss of rubber, plastics, leather, textiles, coatings, etc.
main feature
Color, color difference, reflectivity, gloss and other tests can be completed at one time, convenient and fast
Excellent annular lighting and optical system design ensures good test repeatability of the system

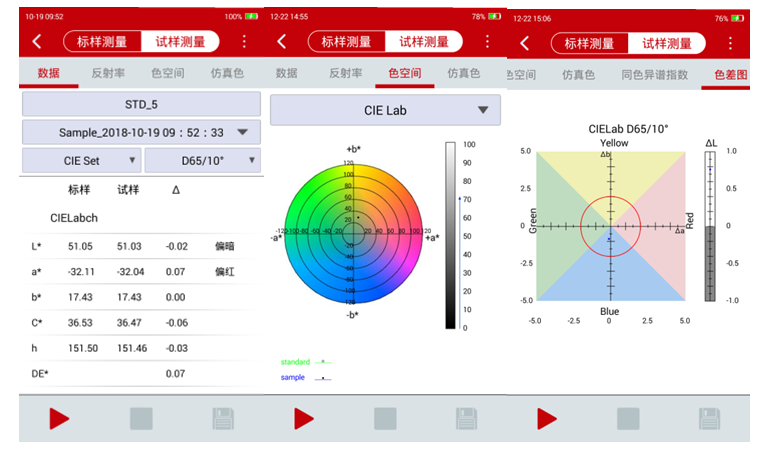

5.0-inch large color touch screen, test data is clear at a glance
Ultra-large memory space, easily handles tens of thousands of tests, very suitable for on-site measurement and data comparison
USB and WIFI communication can easily complete the measurement data transmission with the PC.
