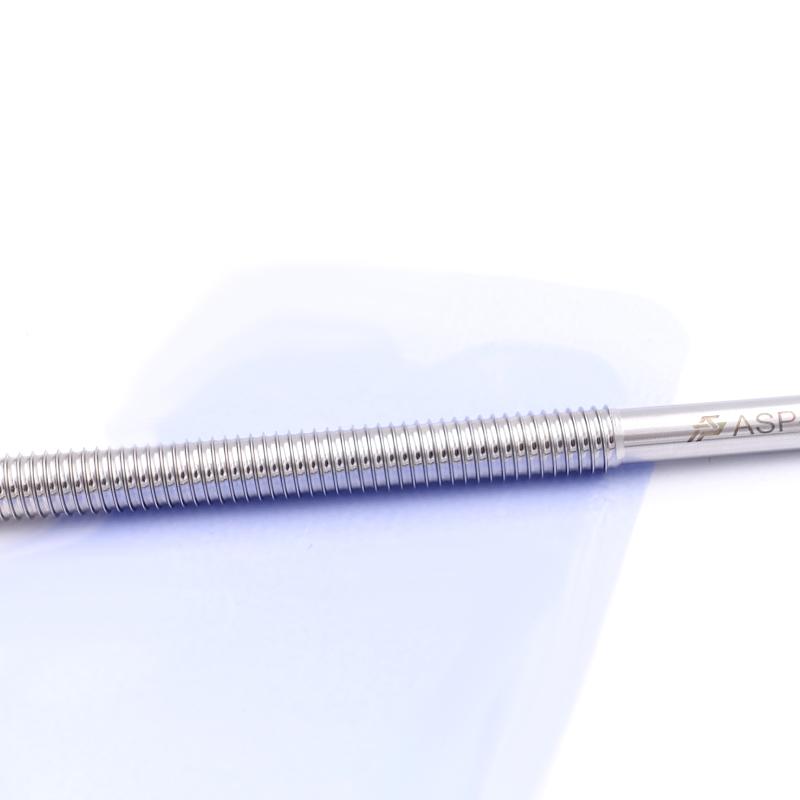

CHINA 200 micron Applicator rod ASP formed Stainless Steel Lacquer Film Applicator 400mm long
SE200μm film thickness, 300mm application width, formed process, groove is not blocked, easy to clean, stainless steel material.
$133.00/piece
PromotionLoading...
Coupon
Model：
ASP200-L400
Aosipai
Manufacturer authorization
Similar products
Aosipai ASP200-L400 Mayer RodsSPEC
Aosipai ASP200-L400 Mayer RodsDetails
Aosipai ASP200-L400 Mayer RodsPacking list
- SKU
- NB038973
- Production process
- Formed
- WFT
- 200m
- diameter
- 10mm
- Total length
- 400mm
- Application width
- 300mm
- Grip width
- 50mm
- material
- Stainless steel material
ASP200-L400
Mayer Rods
200μm film thickness, 300mm application width, formed process, groove is not blocked, easy to clean, stainless steel material.

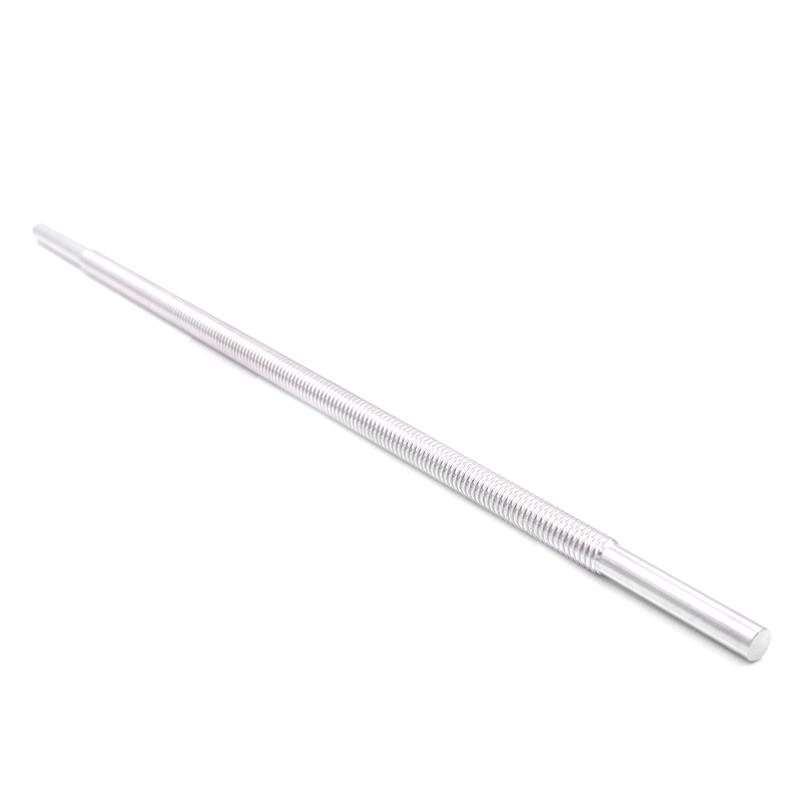

ASP wire rod coater is a domestic (CN) high-end coater, using extrusion technology, wear-resistant stainless steel material, easy to clean and good corrosion resistance. The Total length of the rod is 400mm, the effective coating width is 300mm, and the grips at both ends are 5cm each. There is no need for a matching handle, and it can be directly held and scraped.
This series of wire rod applicators provide film thickness rods ranging from 180 to 600 microns, which are suitable for the experimental needs of coatings, inks, glues, resins, new materials, etc. that need to prepare thicker films.
Wire Bar Coater Dimensional Drawing
Models List of ASP Wire Bar Coater
| model | wet film thickness | Effective coating width | Coating process |
| ASP180-L400 | 180μm | 300mm | Squeeze |
| ASP200-L400 | 200μm | ||
| ASP230-L400 | 230μm | ||
| ASP250-L400 | 250μm | ||
| ASP275-L400 | 275μm | ||
| ASP300-L400 | 300μm | ||
| ASP330-L400 | 330μm | ||
| ASP350-L400 | 350μm | ||
| ASP400-L400 | 400μm | ||
| ASP450-L400 | 450μm | ||
| ASP500-L400 | 500μm | ||
| ASP550-L400 | 550μm | ||
| ASP600-L400 | 600μm |
