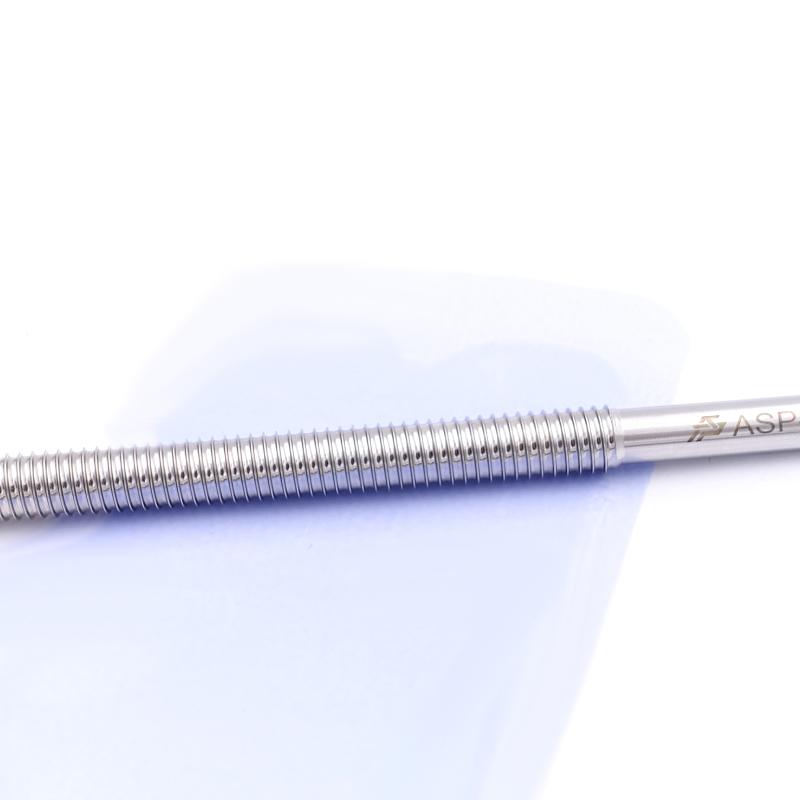

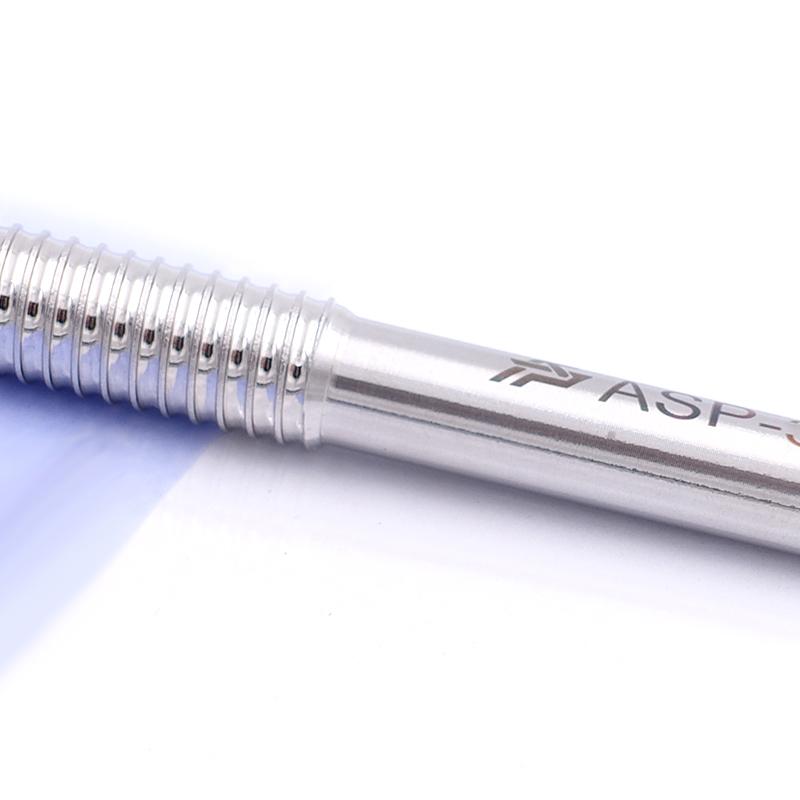

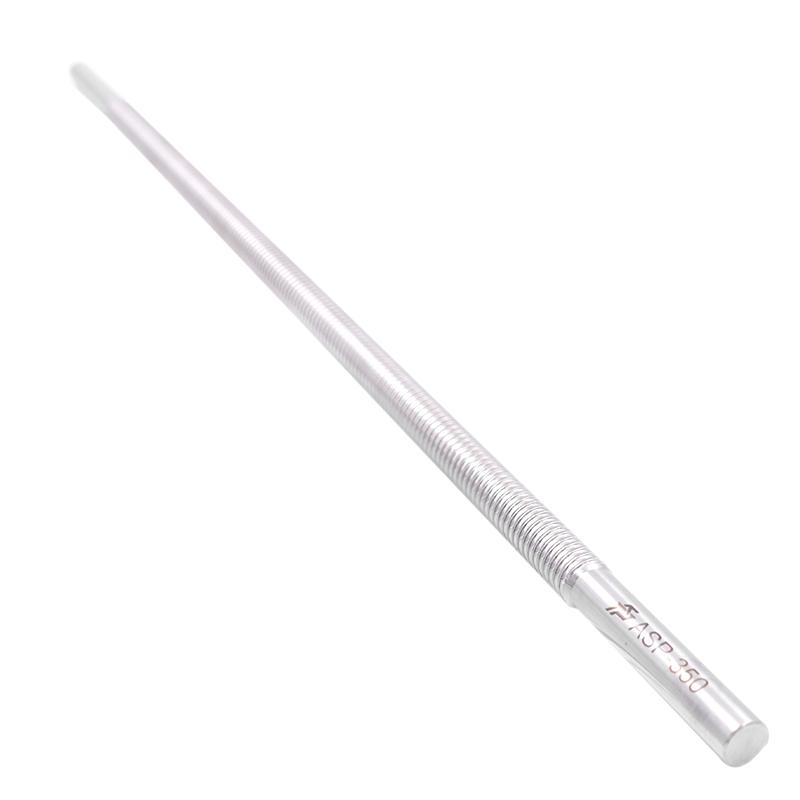

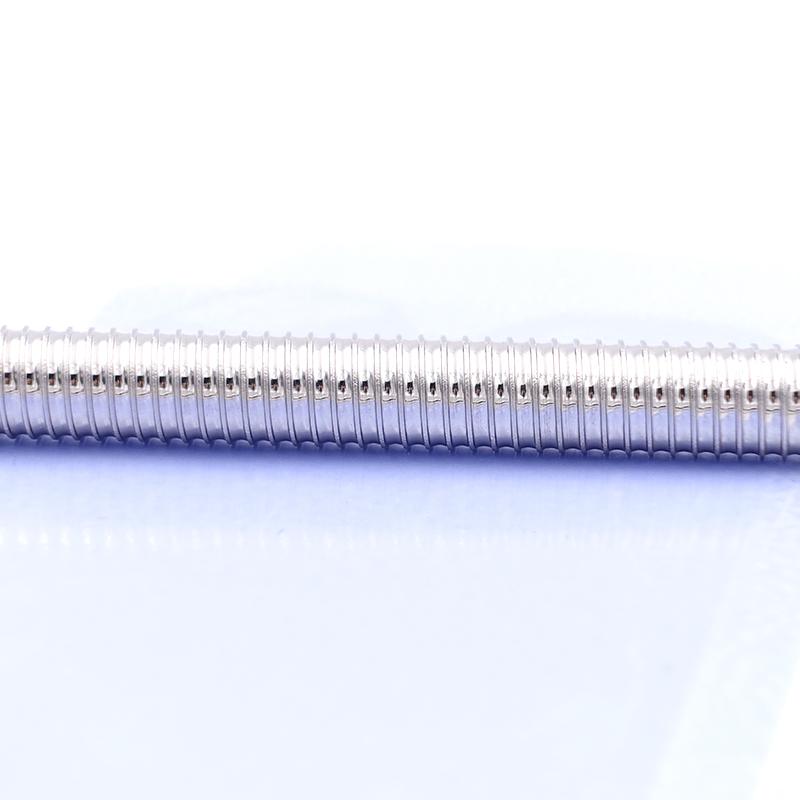

CHINA 350μm Wet Film Applicator Mayer Rods Metering rod Applicator rod

ASP350-L400

Mayer Rods

350μm film thickness, 300mm application width, formed process, groove is not blocked, easy to clean, stainless steel material.

ASP wire rod coater is a domestic (CN) high-end coater, using extrusion technology, wear-resistant stainless steel material, easy to clean and good corrosion resistance. The Total length of the rod is 400mm, the effective coating width is 300mm, and the grips at both ends are 5cm each. There is no need for a matching handle, and it can be directly held and scraped.

This series of wire rod applicators provide film thickness rods ranging from 180 to 600 microns, which are suitable for the experimental needs of coatings, inks, glues, resins, new materials, etc. that need to prepare thicker films.

Wire Bar Coater Dimensional Drawing

Models List of ASP Wire Bar Coater

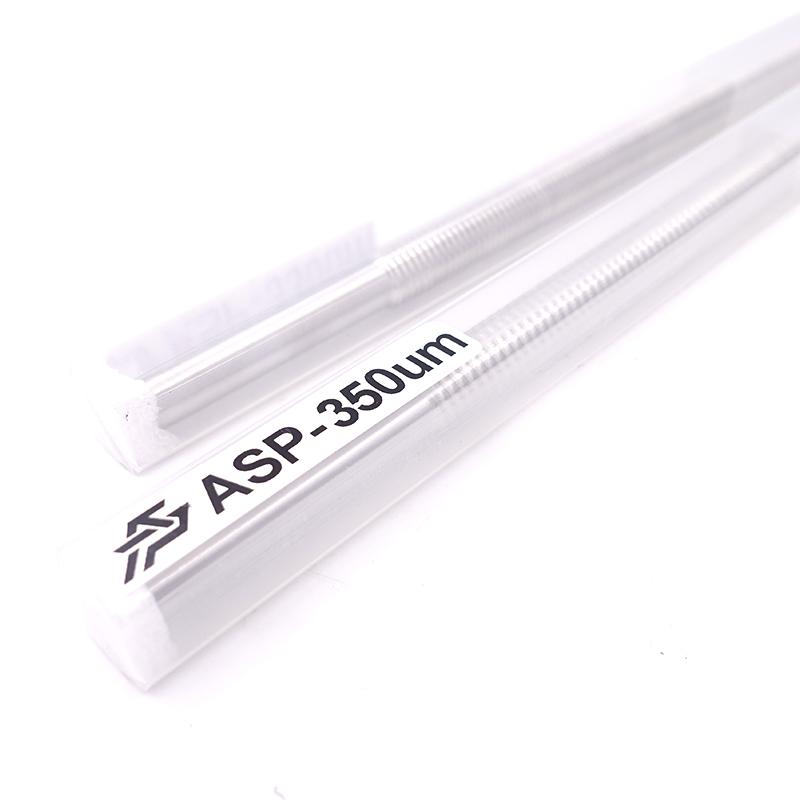

Packing list：Bar X1, Transparent Encasement Hose X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
