RDS 48 #3/8 "Mayer Rods WFT 109.7μm Length 400mm

SE
Wire-wound Coating Applicator, Total length 40mm, Moulding Film thickness 109.7 microns, compared to domestic (CN) rod with higher film accuracy, up to 1 micron, using 304 stainless steel material.
$161.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 48# 3/8" Applicator rod 3/8 "SPEC

RDS 48# 3/8" Applicator rod 3/8 "Details

RDS 48# 3/8" Applicator rod 3/8 "Packing list

SKU
NB000039
Production process
wire-wound
WFT
109.7μm
diameter
9.52mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
Wire diameter
1.22mm
48# 3/8"
Applicator rod 3/8 "
Wire-wound Coating Applicator, Total length 40mm, Moulding Film thickness 109.7 microns, compared to domestic (CN) rod with higher film accuracy, up to 1 micron, using 304 stainless steel material.

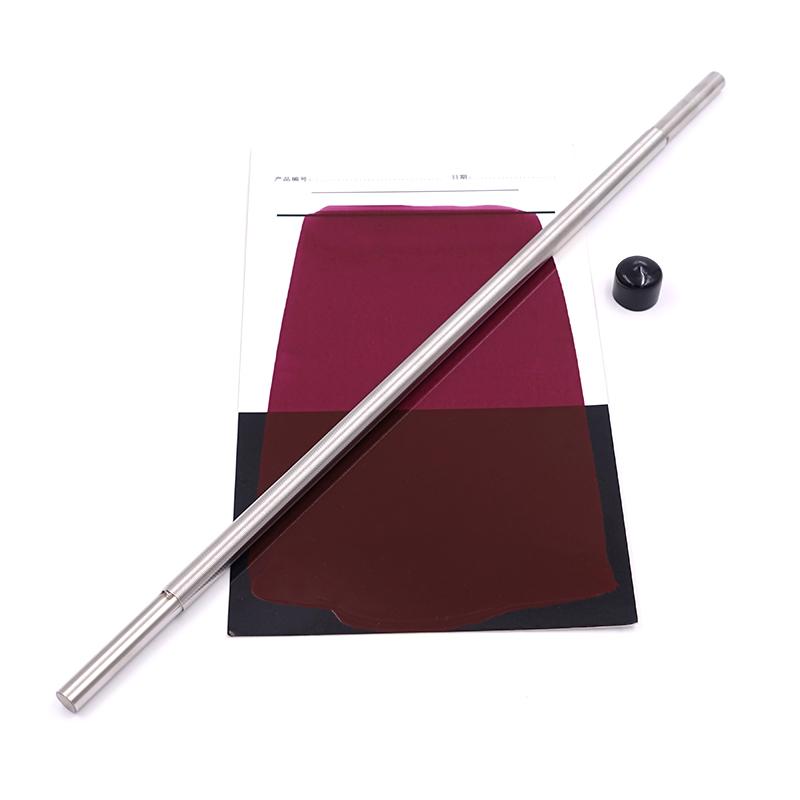

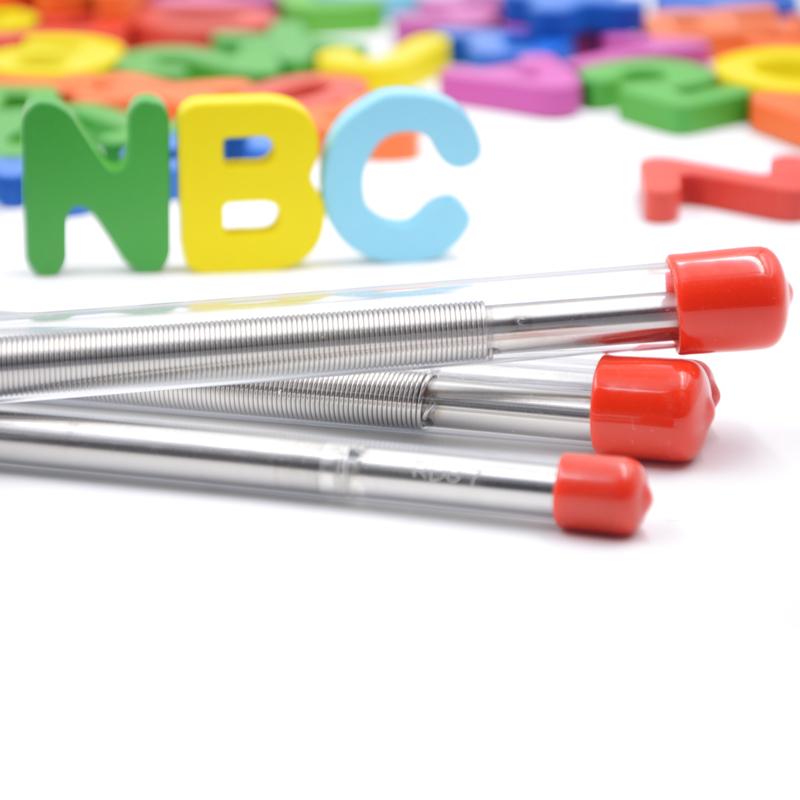

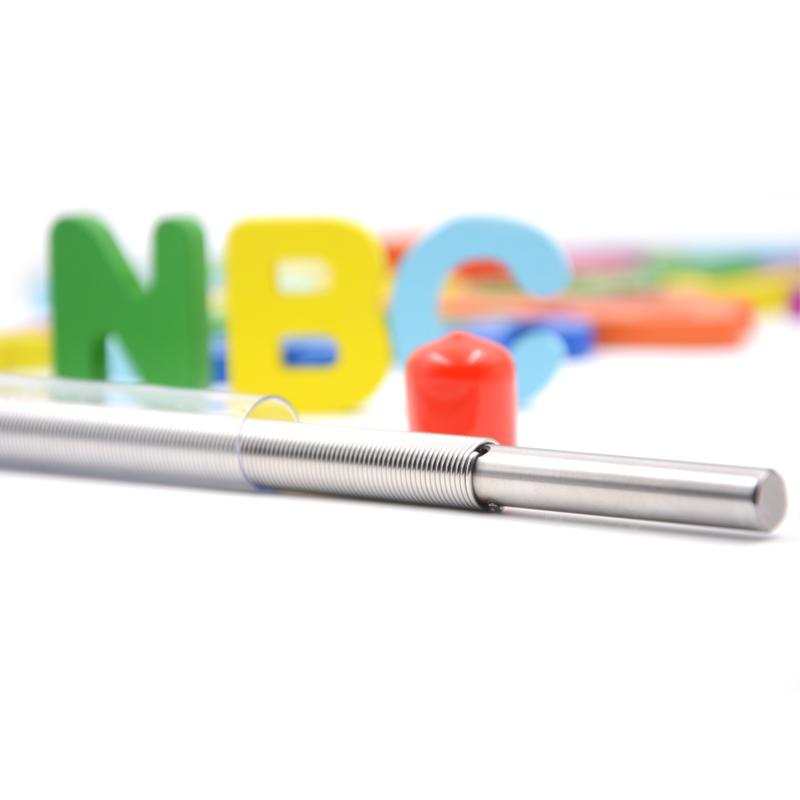

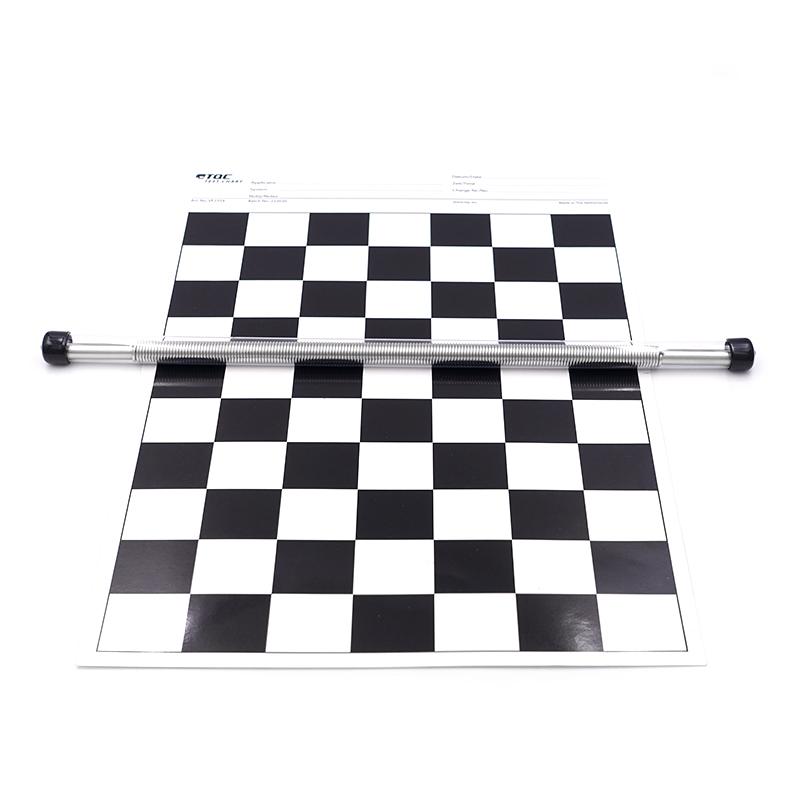

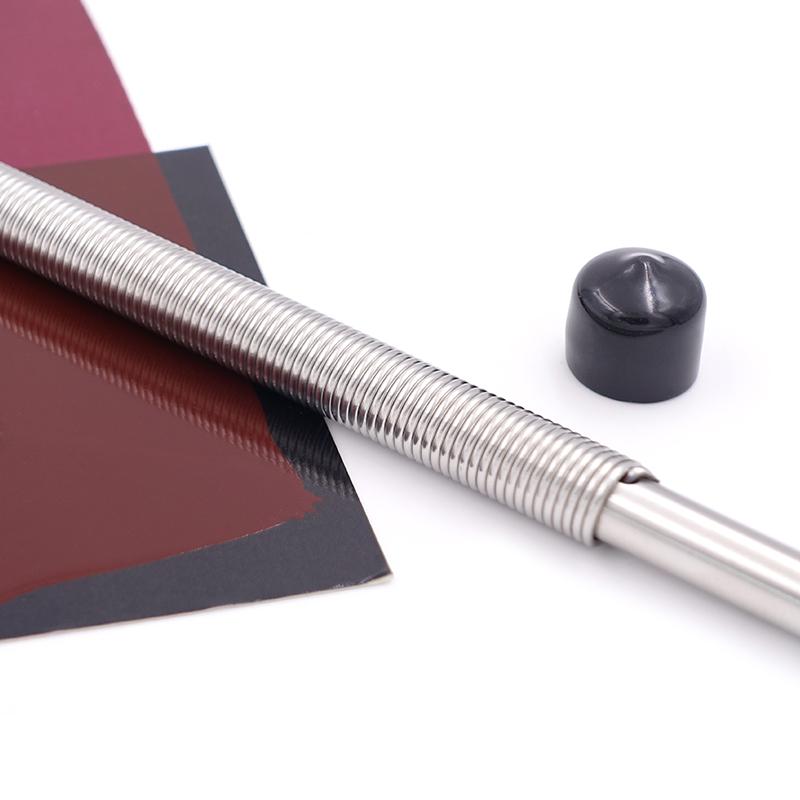

RDS 48 #3/8 "Mayer Rods WFT 109.7μm Length 400mm Picture

RDS coating Rods Figure 1

RDS coating Rods Figure 2

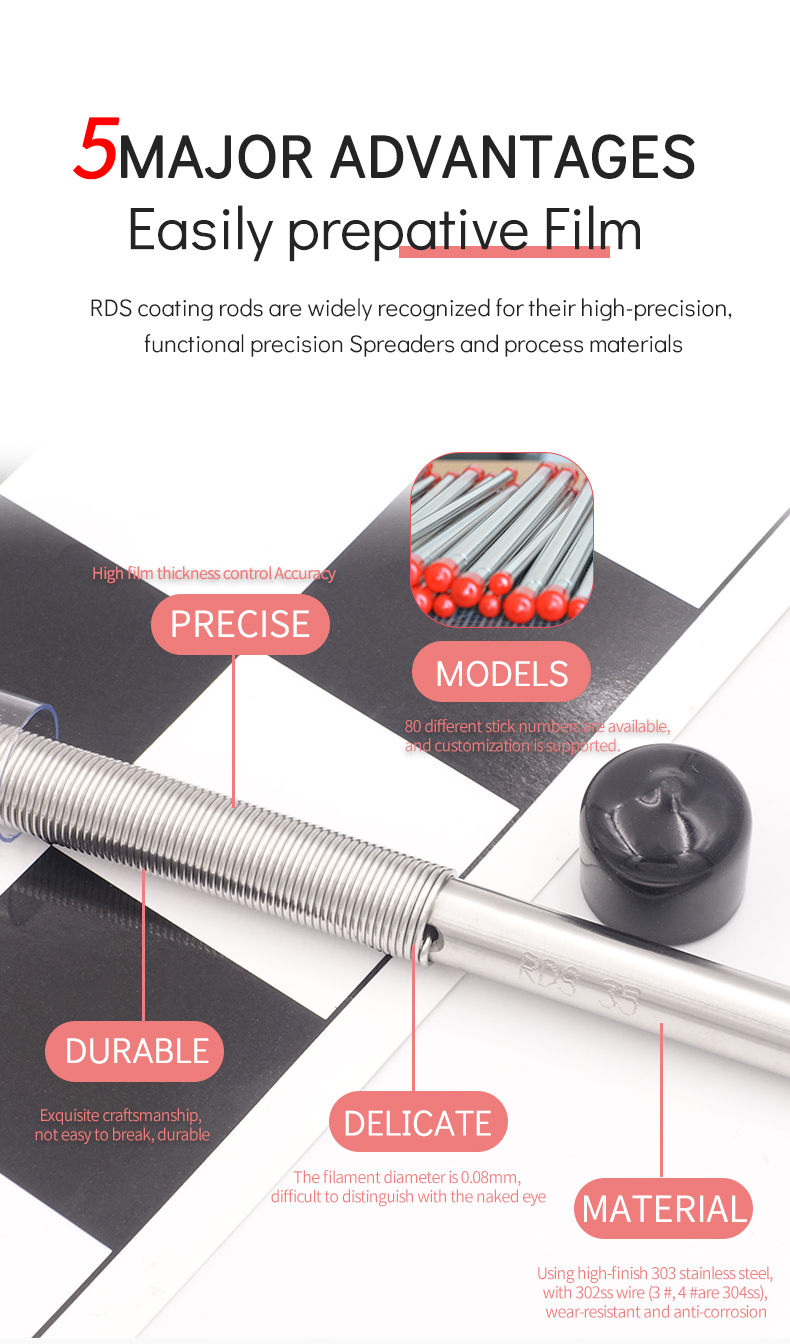

RDS coating Rods Figure 3

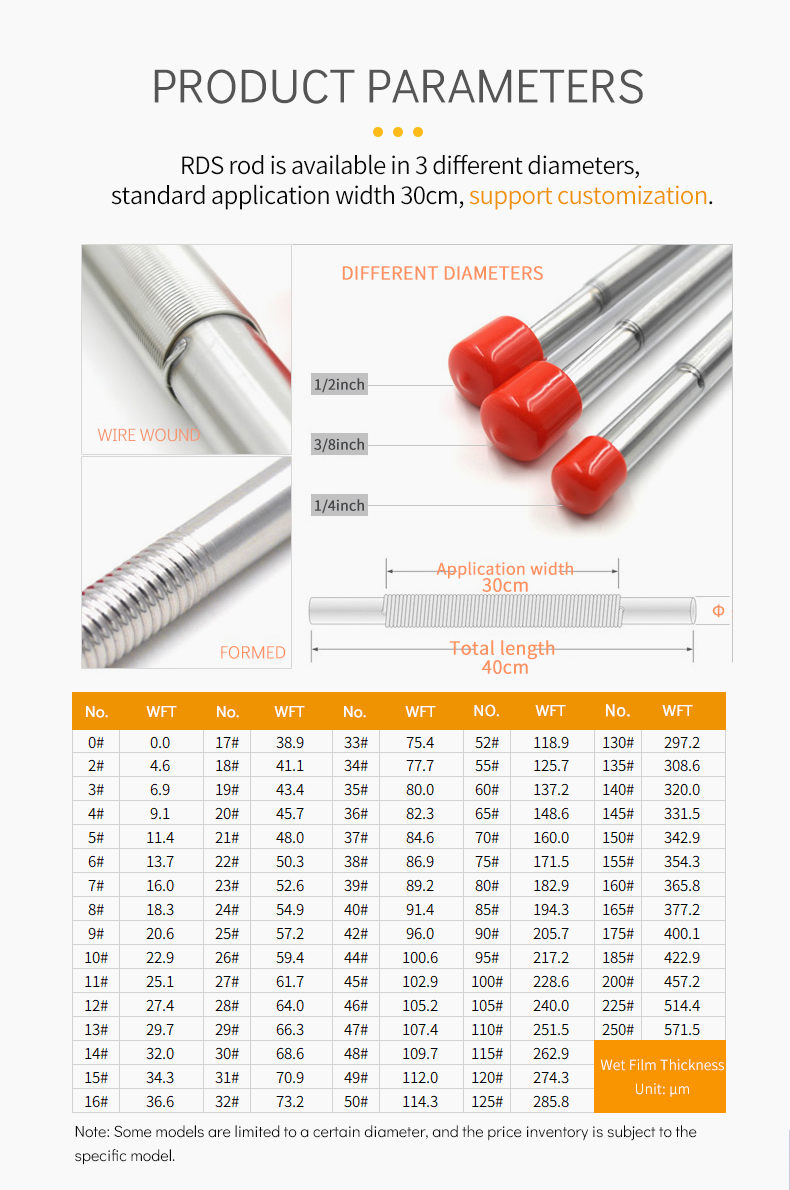

RDS coating Rods Figure 4

RDS coating Rods Figure 5

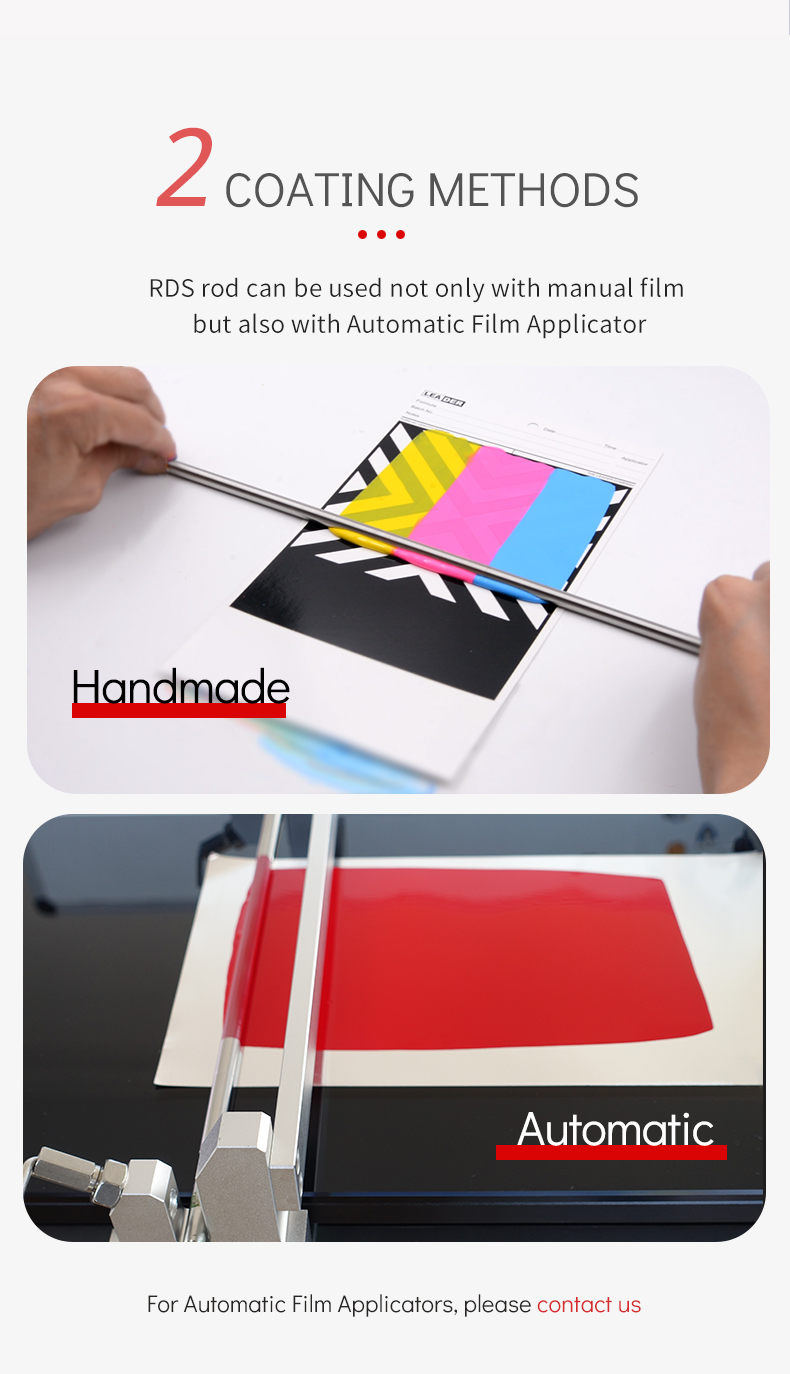

RDS coating Rods Figure 6

RDS coating Rods Figure 7

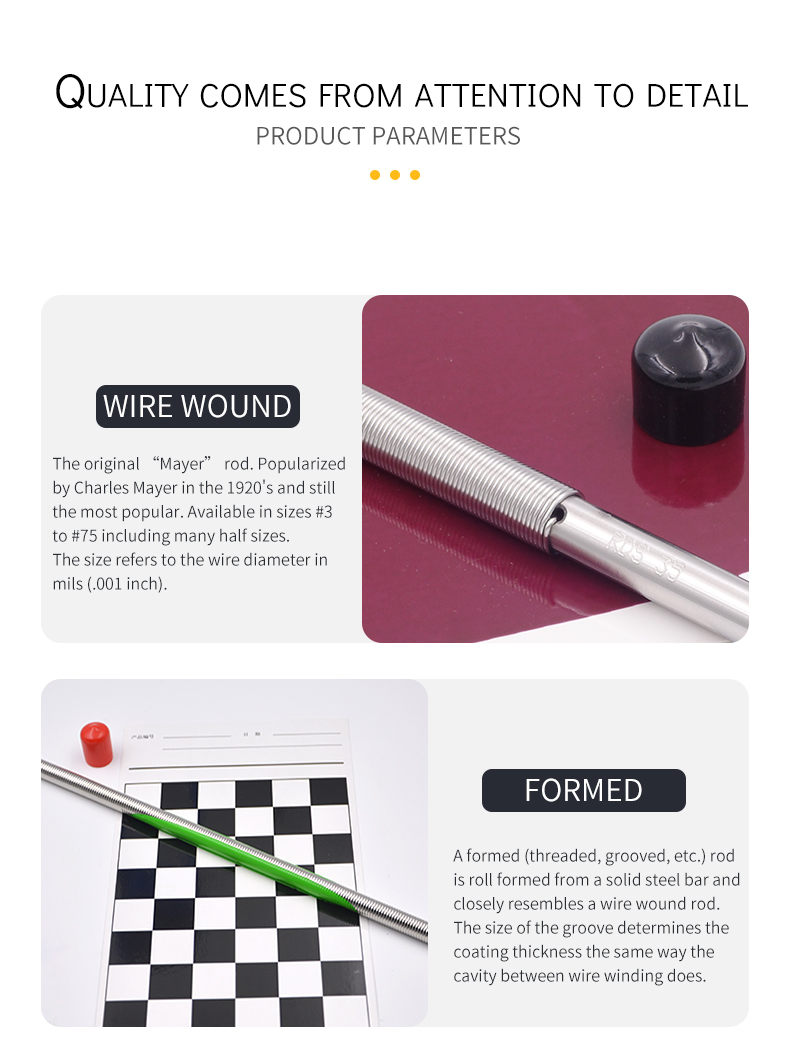

RDS coating Rods Figure 8

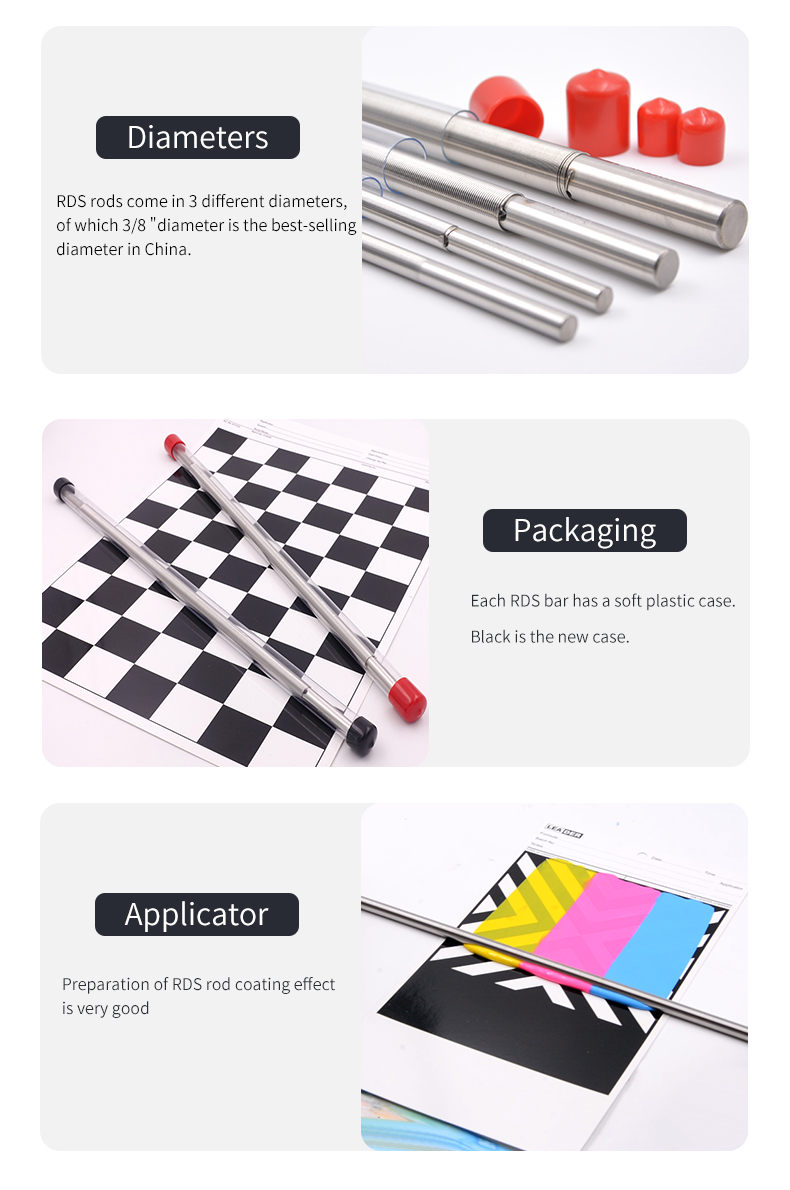

RDS coating Rods Figure 9

RDS coating Rods Figure 10



FAQ
QApply photosensitive glue, the viscosity reaches 3000cps, can I use Mayer Rods?
A Hello, not suitable, the viscosity is too high. Use Film Applicator.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QApplicator rods meet the specifications of GB/T13217.1?
A Model 48 #3/8 "Applicator rod
QSpreader and swirl/spin film, pull film what is the difference? Which is good?
A Swirl/spin film coating can not cover the surface of the substrate Glass, Coating is thrown out of the filamentous film and uneven; pull film uniformity is good, Glass substrate on both sides, transparency is general, film thickness is not easy to control; Spreader Glass surface uniformly covered, good transparency, Coating less, and can control the film thickness well.
QWhat is the Spreader accuracy of RDS Metering rod? Will there be errors?
A The accuracy of RDS reaches 0.1 micron, which is the Metering rod with the highest accuracy known so far. The Metering rod used in the laboratory will have certain possible errors due to hand scraping, different manpower, testing baseplate and other reasons. Thank you for your consultation!
QIf you want to coat a plastic surface with 5-10 μm thick conductive liquid, can you use this type of Metering rod?
QI would like to ask, how is this Metering rod used? The thing in your video seems to be something with a large concentration. If it is something with a small concentration, such as a liquid like water, can it film evenly?
A No. 48 RDS Metering rod is used to scrape wet films above 100 microns, so you will look "thick". It should be pointed out that the purchase of Metering rod is related to the wet film thickness you want to scrape, and RDS Metering rod is very good on levelling. Of course, this is also closely related to the Testing substrate you use and Printing ink viscosity. Welcome to discuss.
QWhat is the difference between a three-eighth size 48 RDS rod and a quarter size 8?
A Hello, 3/8, 1/4, and 1/2 refer to the diameter of the rod respectively, in inches.
QDo you have a conformal bar?
QHow to choose the model of Printing ink?
A Please calculate the wet film thickness according to the wet film thickness calculator, and find the model of the Printing ink scraper accordingly.
