3NH Colorimeter HI color difference treasure, advanced version, Measurement
SE
Colorimeter HI
3NH Colorimeter HI Color difference treasureSPEC
3NH Colorimeter HI Color difference treasureDetails
3NH Colorimeter HI Color difference treasurePacking list
- SKU
- NB039043
- Lighting method
- D/8 (diffuse illumination, 8 ° direction reception, including specular reflection SCI), in line with standard CIE No.15, GB/T 3978
- Integrating sphere size
- F20mm
- lighting source
- Light spectrum LED light source
- Spectroscopic method
- Filter spectroscopy
- sensor
- CMOS dual optical path sensor
- Measurement Wavelength range
- 400~700nm
- wavelength spacing
- 10nm
- Measurement caliber
- F8mm
- Light-containing method
- SCI
- Color space
- CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99
- Color difference formula
- ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
- Other chromaticity indicators
- Light spectrum reflectance, WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), isochromatic index Mt
- Viewing Angle
- 2°/10°
- Available Light Sources
- D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30),U35,NBF,ID50,ID65
- display mode

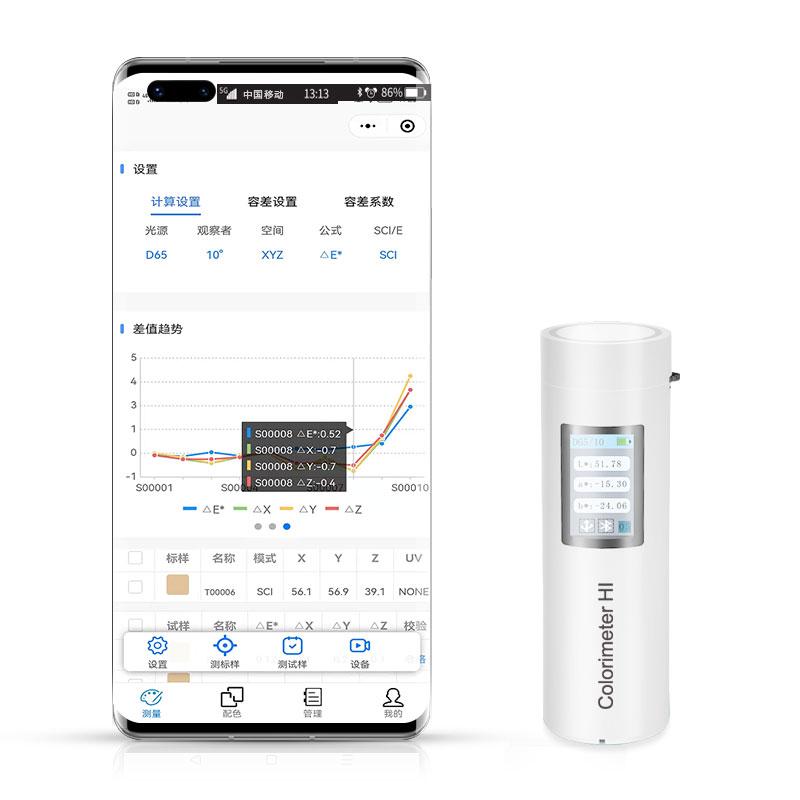

- Sample chromatic value, color difference value/graph, pass/fail result, Color simulation, Color bias, reflectance (partially realized through mobile APP)
- Measurement time
- About 1s
- Inter-station difference
- DE * 00 < 0.2
- Measurement stability
- Chromatic value: ΔE * ab within 0.045 (average value of 30 whiteboard measurements in 5s interval)
- Whiteboard verification method
- Contact automatic whiteboard verification
- Measurement requirements
- Measurement by country
- display Accuracy
- 0.01
- size
- Ø30*100mm
- Weight
- About 88g
- Battery life
- Lithium battery, fully charged, can be continuously tested 12,000 times
- Lighting source life
- 5 years more than 3 million measurements
- Display
- IPS full color screen, 1.14inch
- Data Interface
- Type C USB; Bluetooth 5.0
- Store data
- 10 master standards, 100 samples, Mass storage can be expanded through mobile APP
- Software Support
- Android, IOS, Windows, WeChat Mini Program, Hongmeng, color scheme cloud
- Operating language
- Simplified Chinese, English
- Operating temperature range
- 0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m
- Storage temperature range
- -20~50 ℃, 0~85% RH (no condensation)
- Optional accessories
- Micro printer, powder test box
- Other chromaticity metrics 2
- Dip lightfastmess, color fastness, force, cover, 555 tone classification, Munsell (C/2) (mobile APP implementation)

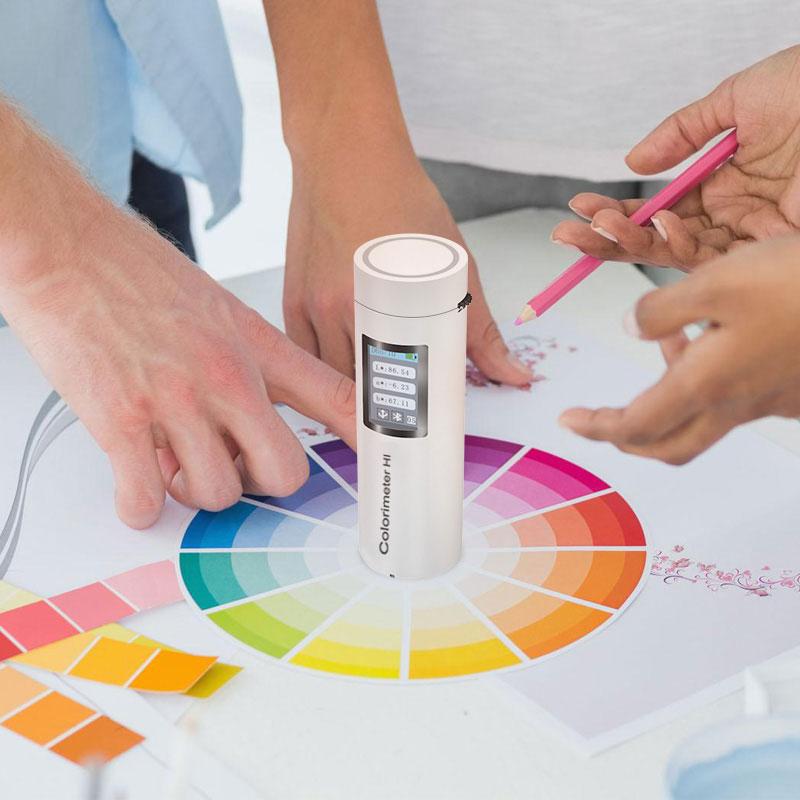

The Colorimeter series is developed by 3nh by combining excellent color sensors with rich-featured APPs and WeChat applets. It is specially equipped with multi-functional "smart buttons" and professional non-contact automatic whiteboard calibration. The instrument is another mobile color difference treasure. Commonly used in plastic electronics, paint coatings, textile and garment printing and dyeing, ceramics and other industries color difference quality control. Color Difference is small in size and easy to carry. After wireless connection with mobile devices, in addition to color measurement, Color Chart identification and search, it can also expand a variety of functions. You can use it to capture color inspiration anytime and anywhere.
Color difference treasure + color matching cloud can also realize the function of color matching software, which is often used in industries such as beauty sewing and color matching.
Features
1. Multifunctional smart buttons
The "smart button" that comes with the instrument can independently complete the measurement function setting or test data review, without connecting a mobile phone and a computer, and can take into account various functions of color difference treasure and color management.
2. 30+ color indicators, 28+ evaluation light sources
Provide CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, Hunter Lab, Bxy, DIN Lab99 and other color space measurement indicators, D65, A, C, D50, D55, D75, F1, F2 (CWF), F3 ,F4,F5,F6,
F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30), U35, NBF, ID50, ID65 and other observation light sources.
3. It is not only a Spectrophotometer , but also a mobile phone color difference treasure
The Colorimeter stand-alone can realize all the functions of the Spectrophotometer ; while connected to the mobile APP or computer software at the same time, it can also take into account various functions of Colorimeter and color management.
4. Non-contact automatic whiteboard verification (whiteboard protection) (only for TOP special edition)
The professional non-contact automatic black and white board calibration technology is adopted to prevent the dirt from being directly transferred to the white board during the measurement process, which completely solves the separation problem of the white board and the dust cover required internationally, and ensures the zero position of the "starting line" of the white board. "The long-term accuracy allows you to use it with more confidence and peace of mind.
5. National measurement
Each Colorimeter has been verified and tested. After leaving the factory, each instrument is verified according to the measurement standards of the credible verification department. The measurement data is traceable to the National Metrology Institute to ensure the reliability of the instrument test data.
- 1JJF 1990-2022《Calibration Specification for Standard Integrating Sphere Sources》
- 2GB/T 33568-2017《Evaluation of degradation of coatings on exterior wood》
- 3GB/T 11942-2022《Test method of chroma for colour building materials》
- 4GB/T 2374-2017《Dyestuffs—General rules for dyeing test》
- 5HG/T 3862-2006《Plastics. Test method of yellowness index》
- 6GB/T 7707-2008《The intaglio prints for decorating》
