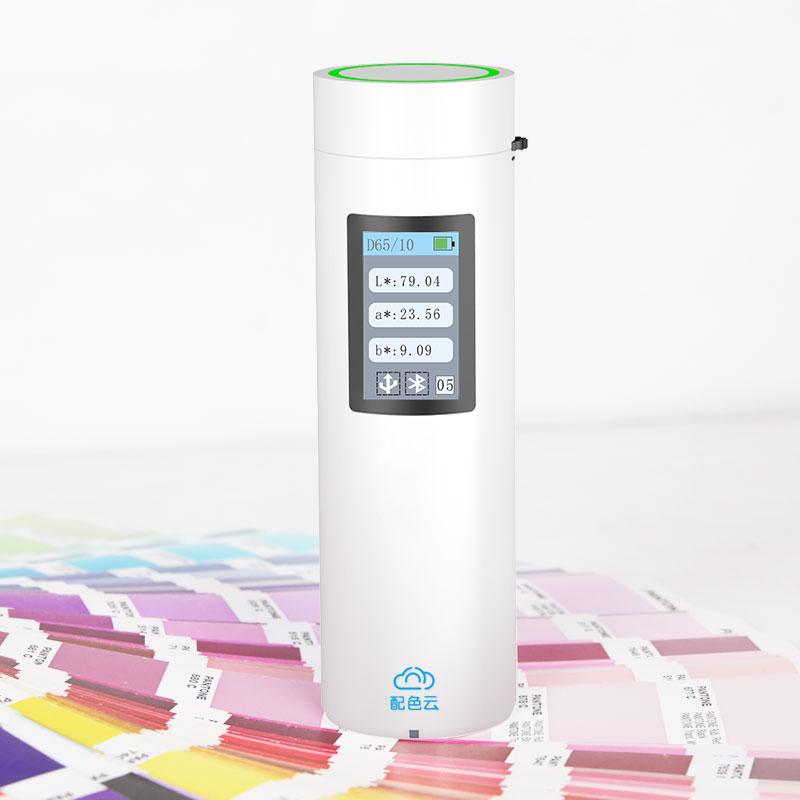

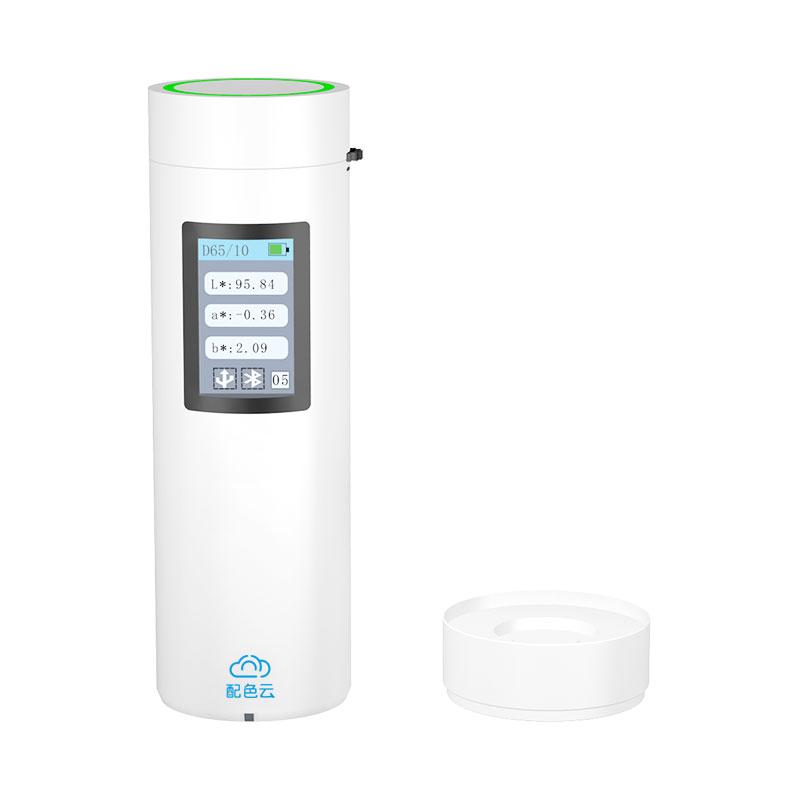

Peiseyun PSY01 color scheme cloud color difference treasure, enhanced version
SEDegree value: Delta E * ab within 0.05, developed by combining color Sensors with rich performance APP, WeChat Mini Program, etc. In addition to Color measurement, Formula Guide recognition and search, a variety of functions can be expanded
$223.00/set
PromotionLoading...
Coupon
Model：
PSY01
3NH PSY01 Color scheme cloud color difference treasure seriesSPEC
3NH PSY01 Color scheme cloud color difference treasure seriesDetails
3NH PSY01 Color scheme cloud color difference treasure seriesPacking list
- SKU
- NB039045
- Lighting method
- D/8 (diffuse illumination, 8 ° direction reception, including specular reflection SCI), in line with standard CIE No.15, GB/T 3978
- Integrating sphere size
- F20mm
- lighting source
- Light spectrum LED light source
- Spectroscopic method
- Filter spectroscopy
- sensor
- CMOS dual optical path sensor
- Measurement Wavelength range
- 400~700nm
- wavelength spacing
- 10nm
- Measurement caliber
- F8mm
- Light-containing method
- SCI
- Color space
- CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99
- Color difference formula
- ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
- Other chromaticity indicators
- Light spectrum reflectance, WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), monochromatic index Mt, lightfastmess, color fastness, force, occlusion, 555 hue classification, Munsell (C/2) (mobile APP implementation)
- Viewing Angle
- 2°/10°
- Observation light source
- D65,A,C,D50,D55,D75,F1,F2 (CWF),F3,F4,F5,F6,F7 (DLF),F8,F9,F10 (TPL5),F11 (TL84),F12 (TL83/U30),U35,NBF,ID50,ID65
- display mode
- Sample chromatic value, color difference value/graph, pass/fail result, Color simulation, Color bias, reflectance (partially realized through mobile APP)
- Measurement time
- About 1s
- Inter-station difference
- DE * 00 < 0.2
- Measurement stability
- Chromatic value: ΔE * ab within 0.05 (average value of 30 whiteboard measurements in 5s interval)
- Whiteboard verification method
- Contact automatic whiteboard verification
- Measurement requirements
- Measurement by country
- display Accuracy
- 0.01
- size
- Ø30*100mm
- Weight
- About 88g
- Battery life
- Lithium battery, fully charged, can be continuously tested 12,000 times
- Lighting source life
- 5 years more than 3 million measurements
- Display
- IPS full color screen, 1.14inch
- Data Interface
- Type C USB; Bluetooth 5.0
- Store data
- 10 master standards, 100 samples, Mass storage can be expanded through mobile APP
- Software Support
- Android, IOS, Windows, WeChat Mini Program, Hongmeng, color scheme cloud
- Operating language
- Simplified Chinese, English
- Operating temperature range
- 0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m
- Storage temperature range
- -20~50 ℃, 0~85% RH (no condensation)
- Optional accessories
- Micro printer, powder test box
PSY01
Color scheme cloud color difference treasure series
Degree value: Delta E * ab within 0.05, developed by combining color Sensors with rich performance APP, WeChat Mini Program, etc. In addition to Color measurement, Formula Guide recognition and search, a variety of functions can be expanded

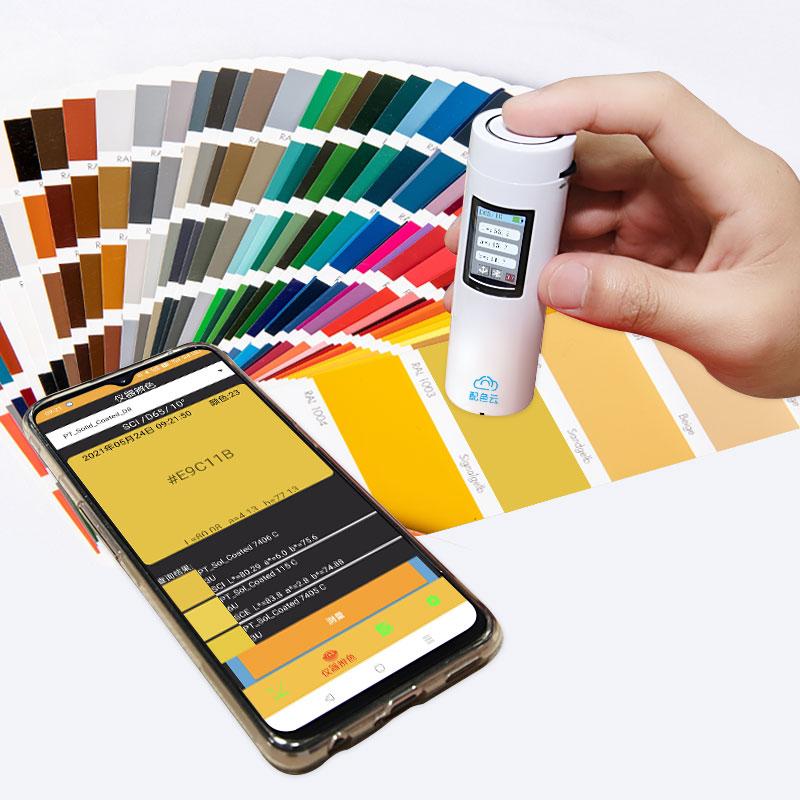

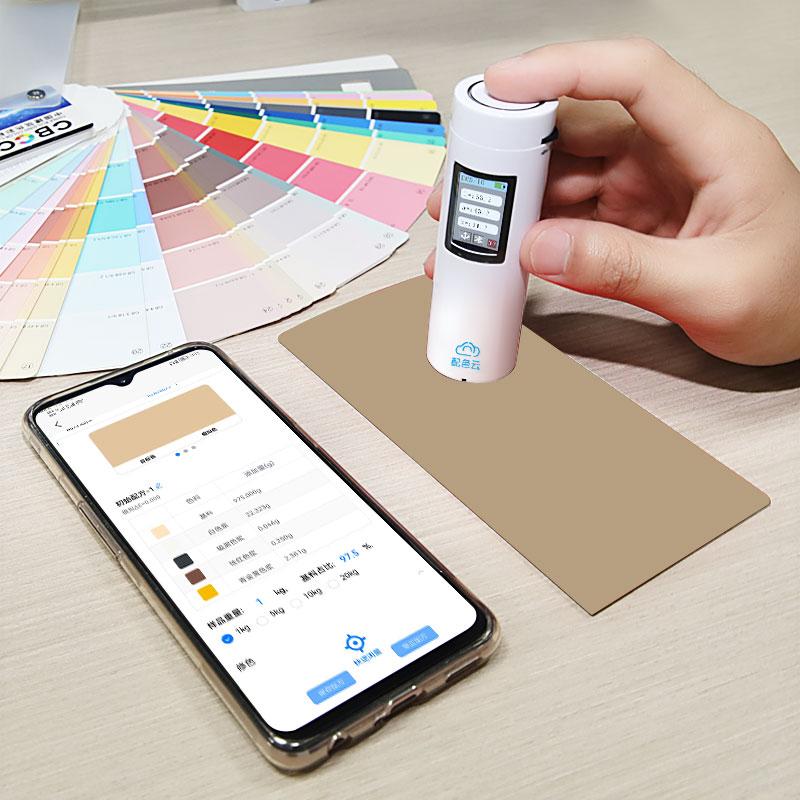

Peiseyun color difference treasure is developed by 3nh by combining color sensors with rich-featured APPs and WeChat applets. The Colorimeter is also a mobile phone color difference treasure. Commonly used in plastic electronics, paint coatings, textile and garment printing and dyeing, ceramics and other industries color difference quality control. Color Difference is small in size and easy to carry. After wireless connection with mobile devices, in addition to color measurement, Color Chart identification and search, it can also expand a variety of functions. You can use it to capture color inspiration anytime and anywhere.
The color matching cloud color difference treasure combines the WeChat applet and the cloud color matching software into one, and is often used in industries such as beauty sewing and color matching.

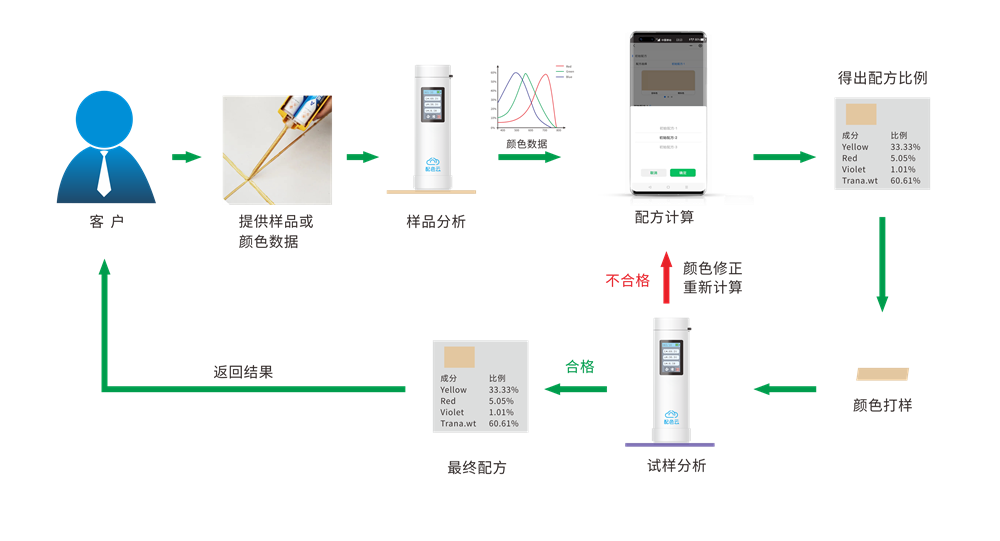

Color matching process
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
