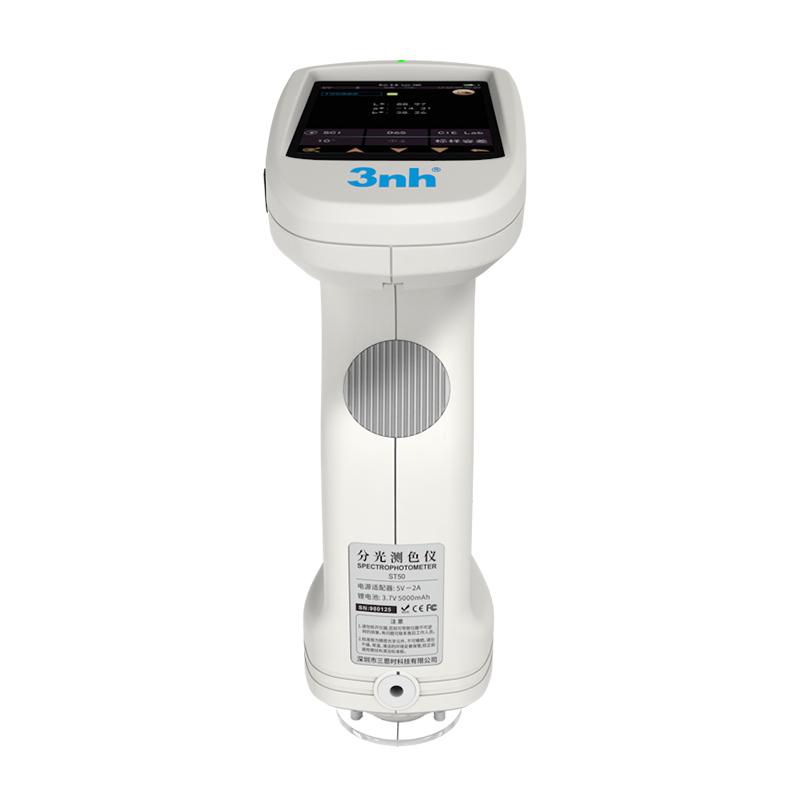

3NH ST50 Colorimeter φ 8mm

SE
φ 8mm measurement aperture, supports 8 measurement spaces and 41 observation Light sources, large area photodiode array, D/8 structure compatible with SCI/SCE measurement, camera viewfinder, non-contact Automatic calibration, supports a variety of mobile phone systems and WeChat Mini Program.
$2061.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con CAT OI
Similar products

3NH ST50（φ8mm） ColorimeterSPEC

3NH ST50（φ8mm） ColorimeterDetails

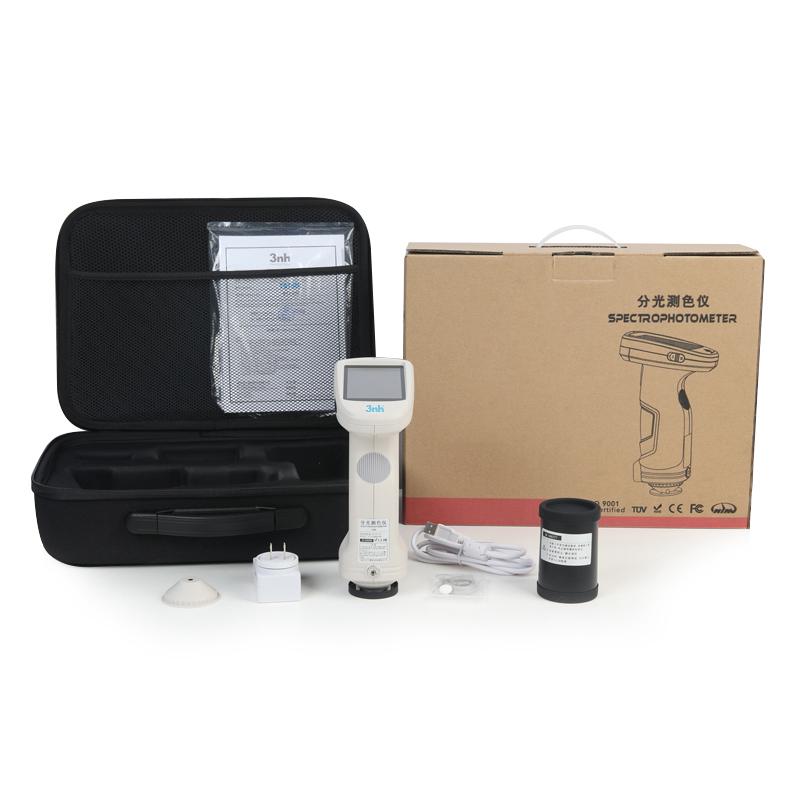

3NH ST50（φ8mm） ColorimeterPacking list

SKU
NB039049
Lighting method
D/8 (diffuse illumination, 8 ° direction reception) SCI/SCE measurement; exclude UV measurement according to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Integrating sphere size
F40mm
lighting source
Light spectrum LED light source
Spectroscopic method
Plane grating spectroscopy
sensor
Large area silicon photodiode array (dual row 20 groups)
Measurement Wavelength range
400~700nm
wavelength spacing
10nm
Reflectance Measurement Range
0~200%
Measurement caliber
8mm
Light-containing method
Simultaneous testing of SCI/SCE
Color space
CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2)
Color difference formula
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00
Other chromaticity indicators
Light spectrum reflectance, WI (ASTM E313, CIE/ISO, AATCC, Hunter, TaubeBergerStensby), YI (ASTM D1925, ASTM 313), Isochromatic Spectral Index Mt
Viewing Angle
2°/10°
Observation light source
D65,A,C,D50,D55,D75,F1,F2 (CWF),F3,F4,F5,F6,F7 (DLF),F8,F9,F10 (TPL5),F11 (TL84),F12 (TL83/U30),B,U35,NBF,ID50,ID65
display mode
Light spectrum graphs/data, sample chromatic values, color difference values/graphs, pass/fail results, Color simulation, Color bias
Measurement time
About 1.5s
Sexual repeability
Chromatic value: MAV/SCI, ΔE * ab within 0.03 (after preheating correction, the average value of 30 whiteboard measurements at intervals of 5s) Spectral reflectance: MAV/SCI, standard deviation within 0.1% (400~700nm: within 0.2%):
Inter-station difference
ΔE * from < 0.2 (MAV / SCI)
display Accuracy
0.01
Measurement method
Single measurement, average measurement (2~ 99 times)
Positioning method
Camera positioning, stabilizer positioning
size
129*76*217mm
Weight
Approx. 600g
Battery life
Lithium battery, 3.7V, 5000mAh, 8800 times in 8 hours
Lighting source life
More than 1.50 million measurements in 10 years
Display
TFT true color 3.5inch, capacitive touch screen
Data Interface
USB, Bluetooth ® 5.0
Store data
1000 master standards, 20,000 samples (one piece of data can include SCI/SCE at the same time), APP/PC Mass storage
Software Support
Android, IOS, Windows, WeChat Mini Program, Hongmeng
Operating language
Simplified Chinese, English, Traditional Chinese
Operating temperature range
0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m
Storage temperature range
-20~50 ℃, 0~85% RH (no condensation)
Optional accessories
Micro printer, powder test box
Observation light source 2
LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2, LED-C2, LED-C3, LED-C5, customizable light source (41 kinds of light sources in total, partly realized through the host computer/APP)
Other chromaticity metrics 2
Dip lightfastmess, color fastness, force (dyestuff strength, tinctorial strength), cover 8 degrees glossiness, 555 hue classification,
Other chromaticity metrics 3
Blackness (My, dM), CMYK (A, T, E, M), Tint, Color Density, Munsell (some functions are realized through the host computer)
ST50（φ8mm）
Colorimeter
φ 8mm measurement aperture, supports 8 measurement spaces and 41 observation Light sources, large area photodiode array, D/8 structure compatible with SCI/SCE measurement, camera viewfinder, non-contact Automatic calibration, supports a variety of mobile phone systems and WeChat Mini Program.

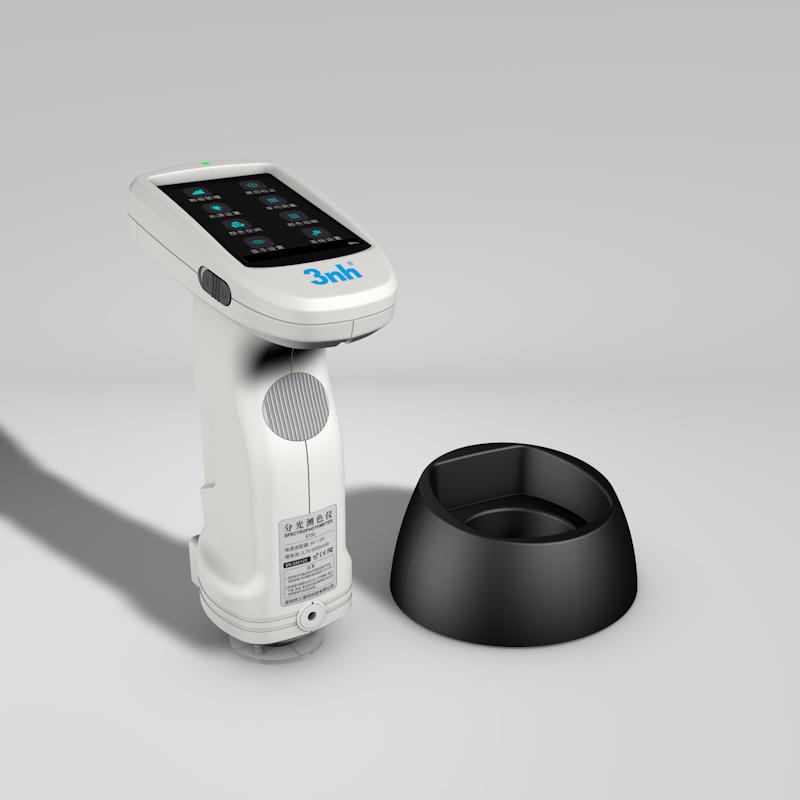

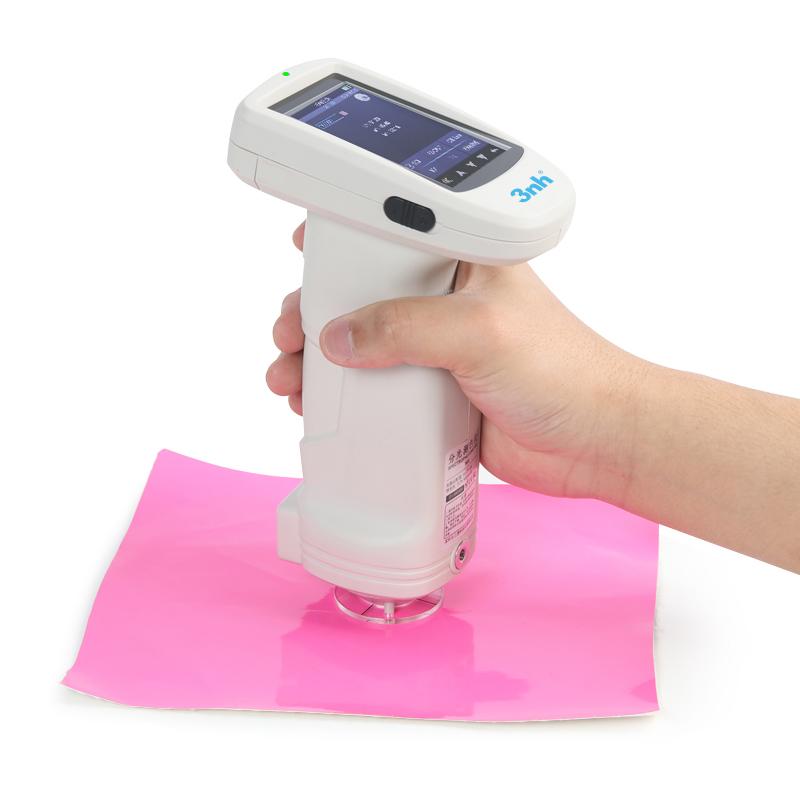

3NH ST50 Colorimeter φ 8mm Picture

product description

3nh's twin sister "Kutai" ST series of the TS series is grandly launched, inheriting the large-area array sensor and grating spectroscopic core technology of 3nh in the field of color detection, and keenly analyzing the strong and weak light in the 300-1100nm band.

The Spectrophotometer ST50 is a Spectrophotometer developed by 3nh using the Thai dual-core technology spectrometer. It adopts a built-in photodiode array (20 sets of double rows) sensors and an imported whiteboard, taking into account the measurement speed and the convenience of operation. The repeatability ΔE*ab of the ST50 Spectrophotometer is easily controlled within 0.03, and the inter-stage difference ΔE*ab is controlled within 0.2.

Applications

Kutai Spectrophotometer ST50 adopts a single customized measurement caliber, with accurate measurement data and stable performance. It is used for accurate color measurement and quality control in plastic electronics, paint ink, textile and garment printing and dyeing, printing, ceramics and other industries.

FAQ
QWe do plastic shell Color Quality control, which instrument is more accurate?
A ST50 Colorimeter Delta E * ab Repeatability of 0.03, 8mm caliber is suitable for plastic surface measurement, and can also measure SCI/SCE data at the same time to ensure batch Color conformity.
QSpinning & weaving factory needs to check the colour fastness and monochromatic spectrum of the fabric, can ST50 handle it?
A Yes! The ST50 has 41 built-in Light sources to simulate different environments, directly calculate the same color spectrum index, and also supports staining/discoloration fastness analysis. 10nm grating spectroscopy ensures accurate fabric Color data.
