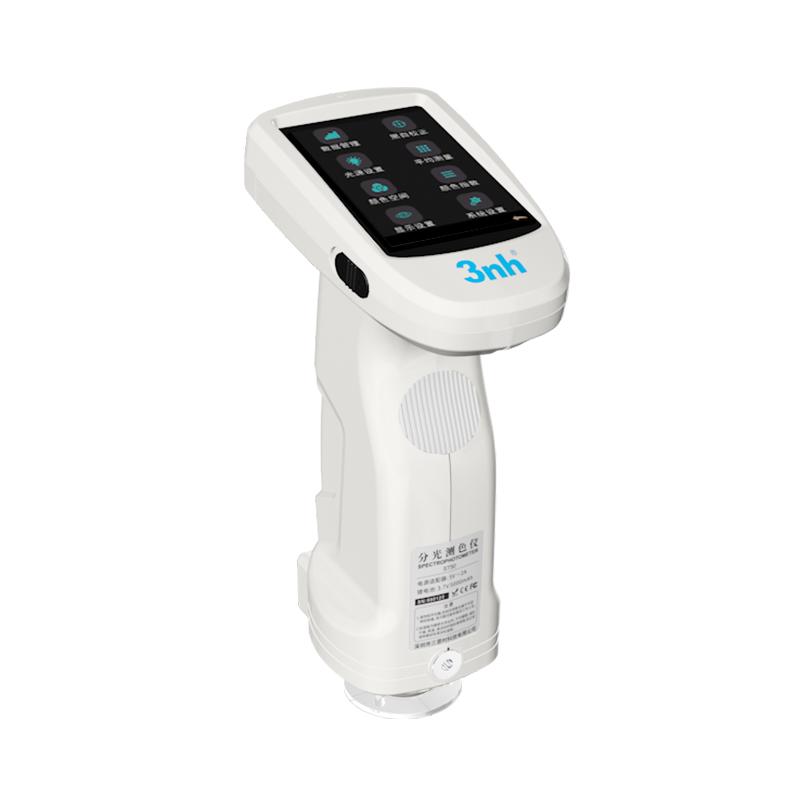

3NH ST60 Colorimeter 8mm/4mm

SE
Standard diameter φ 8mm platform caliber, φ 8mm pointed caliber, φ 4mm platform caliber, φ 4mm pointed caliber, can measure fluorescent samples, repeability Delta E * ab within 0.025, inter-table difference Delta E * ab < 0.15, 10 kinds of measurement space, D/8 structure compatible with SCI/SCE measurement, camera viewing, non-contact auto calibration, support WeChat Mini Program.
$2993.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

3NH ST60 ColorimeterSPEC

3NH ST60 ColorimeterDetails

3NH ST60 ColorimeterPacking list

SKU
NB039050
Lighting method
D/8 (diffuse illumination, 8 ° direction reception) SCI/SCE measurement; exclude UV measurement in accordance with CIE No. 15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Integrating sphere size
Φ40mm
lighting source
Light spectrum LED light source, UV light source
spectroscopy
Plane grating spectroscopy
Sensor
Large Area Silicon Photodiode Array (Double Row 26 Group)
Measurement Wavelength range
400~700nm
wavelength interval
10nm
Reflectance Measurement Range
0~200%
Measurement caliber
Four caliber: MAV: φ 8mm/φ 10mm; SAV: φ 4mm/φ 5mm
Light-containing method
Simultaneous testing of SCI/SCE
Color space
CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2)
color difference formula
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
Other chroma metrics
Light spectrum reflectance, WI (ASTM E313, CIE/ISO, AATCC, Hunter, TaubeBergerStensby), YI (ASTM D1925, ASTM 313), homochromatic index Mt
Viewing Angle
CIE 2°/10°
observation light source
D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF,ID50,ID65
display mode
Light spectrum plots/data, sample chromatic values, color difference values/plots, pass/fail results, Color simulation, Color bias
Measurement time
About 1.5s
Sexual repeability
Chromatic value: MAV/SCI, Delta E * ab within 0.025 (after preheating correction, the average value of 30 whiteboard measurements at intervals of 5s) Spectroscopic reflectance: MAV/SCI, standard deviation within 0.08% (400~700nm: within 0.18%):
stand-alone difference
ΔE*ab<0.15(MAV/SCI)
Display Accuracy
0.01
measurement mode
Single measurement, average measurement (2~ 99 times)
positioning method
camera positioning, stabilizer positioning
Dimensions
129*76*217mm
Weight
Approx. 600g
battery life
Lithium battery, 3.7V, 5000mAh, 8800 cycles in 8 hours
Lifetime of lighting source
More than 1.50 million measurements in 10 years
Display
TFT true color 3.5inch, capacitive touch screen
Data Interface
USB, Bluetooth ® 5.0
data storage
1000 master standards, 20,000 samples (one data can include SCI/SCE at the same time), APP/PC Mass storage
Software Support
Android, IOS, Windows, WeChat Mini Program, Hongmeng
operating language
Simplified Chinese, English, Traditional Chinese
Operating environment
0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m
Storage environment
-20~50 ℃, 0~85% RH (no condensation)
optional accessories
Micro printer, powder test box
Observation light source 2
LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2, LED-C2, LED-C3, LED-C5, customizable light sources (a total of 41 light sources, partially realized through the host computer/APP)
Other chroma metrics 2
Dip colour fastness, color fastness, force (dyestuff strength, tinctorial strength), 8 degree gloss, 555 shade classification,
Other chroma metrics 3
Blackness (My, dM), CMYK (A, T, E, M), Tint, Color Density, Moncel (some functions are realized through the host computer)
ST60
Colorimeter
Standard diameter φ 8mm platform caliber, φ 8mm pointed caliber, φ 4mm platform caliber, φ 4mm pointed caliber, can measure fluorescent samples, repeability Delta E * ab within 0.025, inter-table difference Delta E * ab < 0.15, 10 kinds of measurement space, D/8 structure compatible with SCI/SCE measurement, camera viewing, non-contact auto calibration, support WeChat Mini Program.
3NH ST60 Colorimeter 8mm/4mm Picture

product description

3nh's twin sister "Kutai" ST series of the TS series is grandly launched, inheriting the large-area array sensor and grating spectroscopic core technology of 3nh in the field of color detection, and keenly analyzing the strong and weak light in the 300-1100nm band.

The Spectrophotometer ST60 is a Spectrophotometer developed by 3nh using the Thai dual-core technology spectrometer. It uses a built-in photodiode array (26 sets of dual columns) sensors and an imported whiteboard, taking into account the measurement speed and the convenience of operation. The repeatability ΔE*ab of the ST60 Spectrophotometer is easily controlled within 0.025, and the inter-stage difference ΔE*ab is controlled within 0.15. The measurement is accurate, and the test data can be used for accurate analysis and transmission of color in the laboratory.

Applications

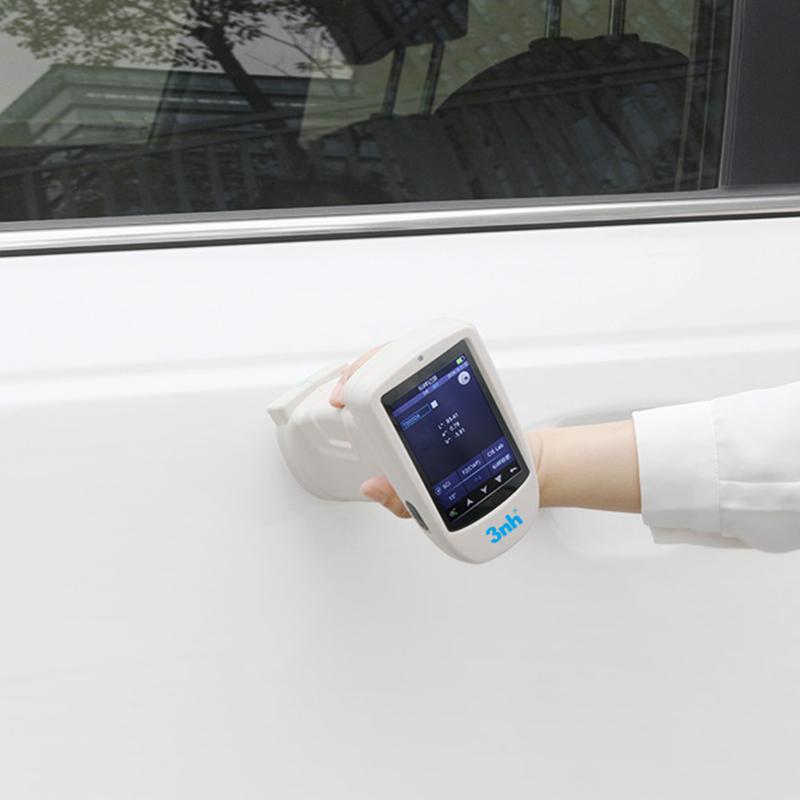

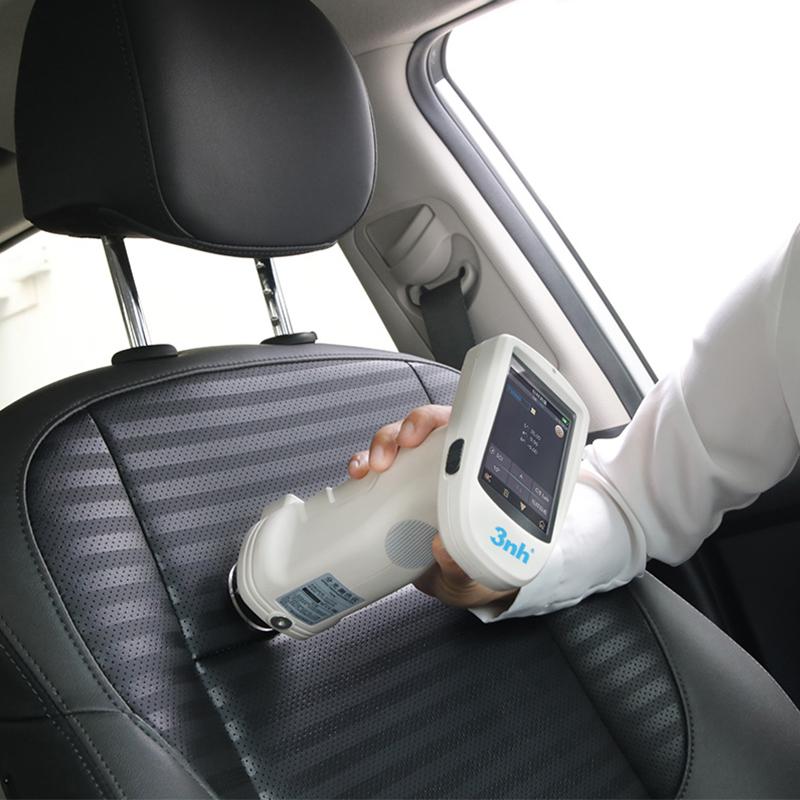

Kutai Spectrophotometer ST60 is equipped with 4 kinds of measuring calibers, with wider adaptability, accurate color measurement and stable performance. It is used for accurate color measurement and quality control in plastic electronics, paint ink, textile and garment printing and dyeing, printing, ceramics and other industries; available Measured on fluorescent samples.

FAQ
QIs there a cash sale of equipment for testing mirror aluminum? Reflection ray of light angle 60 degrees, Glossiness 790, reflectance 80%
A Colorimeter + glossmeter
QIs there any color scheme instrument that can easily analyze how much and which Color to add, and tell how much to add for each Color?
A This requires a combination of colorimeter + Colorschemer studio.
