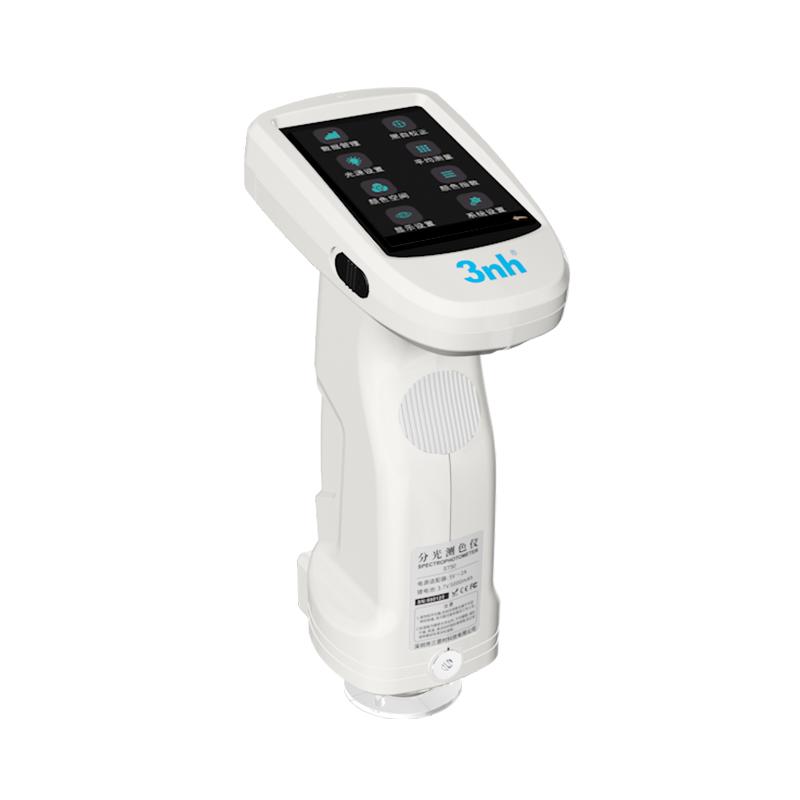

3NH ST70 Colorimeter Five Caliber 8mm/4mm/1x3mm

Standard diameter φ 8mm platform caliber, φ 8mm tip caliber, φ 4mm platform caliber, φ 4mm tip caliber, 1x3m tip caliber, can measure fluorescent samples, repeatability Delta E * ab within 0.02, inter-stage difference Delta E * ab < 0.15, 10 kinds of measurement space, D/8 structure is compatible with SCI/SCE measurement, camera framing, non-contact auto calibration, support WeChat Mini Program.

$3926.00/set

PromotionLoading...

Coupon

Model：

ST70

Certificate

3NH

Manufacturer authorization

Contact

Details SPEC Con CAT OI

3NH ST70 ColorimeterSPEC

3NH ST70 ColorimeterDetails

3NH ST70 ColorimeterPacking list

SKU: NB039051

Lighting method: D/8 (diffuse illumination, 8 ° direction reception) SCI/SCE measurement; exclude UV measurement in accordance with CIE No. 15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7

Integrating sphere size: Φ40mm

lighting source: Light spectrum LED light source, UV light source

spectroscopy: Plane grating spectroscopy

Sensor: Large Area Silicon Photodiode Array (Dual Row 32 Group)

Measurement Wavelength range: 360~780nm

wavelength interval: 10nm

Reflectance Measurement Range: 0~200%

Measurement caliber: Five caliber: MAV: φ 8mm/φ 10mm; SAV: φ 4mm/φ 5mm; LAV: 1x3mm

Light-containing method: Simultaneous testing of SCI/SCE

Color space: CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2)

color difference formula: ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)

Other chroma metrics: Light spectrum reflectance, WI (ASTM E313, CIE/ISO, AATCC, Hunter, TaubeBergerStensby), YI (ASTM D1925, ASTM 313), homochromatic index Mt

Viewing Angle: CIE 2°/10°

observation light source: D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF,ID50,ID65

display mode: Light spectrum plots/data, sample chromatic values, color difference values/plots, pass/fail results, Color simulation, Color bias

Measurement time: About 1.5s

Sexual repeability: Chromatic value: MAV/SCI, Delta E * ab within 0.02 (after preheating correction, the average value of 30 whiteboard measurements at intervals of 5s) Spectroscopic reflectance: MAV/SCI, standard deviation within 0.08% (400~700nm: within 0.18%):

stand-alone difference: ΔE*ab<0.15(MAV/SCI)

Display Accuracy: 0.01

measurement mode: Single measurement, average measurement (2~ 99 times)

positioning method: camera positioning, stabilizer positioning

Dimensions: 129*76*217mm

Weight: Approx. 600g

battery life: Lithium battery, 3.7V, 5000mAh, 8800 cycles in 8 hours

Lifetime of lighting source: More than 1.50 million measurements in 10 years

Display: TFT true color 3.5inch, capacitive touch screen

Data Interface: USB, Bluetooth ® 5.0

data storage: 1000 master standards, 30,000 samples (one data can include SCI/SCE at the same time), APP/PC Mass storage

Software Support: Android, IOS, Windows, WeChat Mini Program, Hongmeng

operating language: Simplified Chinese, English, Traditional Chinese

Operating environment: 0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m

Storage environment: -20~50 ℃, 0~85% RH (no condensation)

optional accessories: Micro printer, powder test box

Observation light source 2: LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2, LED-C2, LED-C3, LED-C5, customizable light sources (a total of 41 light sources, partially realized through the host computer/APP)

Other chroma metrics 2: Dip colour fastness, color fastness, force (dyestuff strength, tinctorial strength), 8 degree gloss, 555 shade classification,

Other chroma metrics 3: Blackness (My, dM), CMYK (A, T, E, M), Tint, Color Density, Moncel (some functions are realized through the host computer)

ST70

Colorimeter

product description

3nh's twin sister "Kutai" ST series of the TS series is grandly launched, inheriting the large-area array sensor and grating spectroscopic core technology of 3nh in the field of color detection, and keenly analyzing the strong and weak light in the 300-1100nm band.

The Spectrophotometer ST70 is a Spectrophotometer developed by 3nh using the Thai dual-core technology spectrometer. It adopts a built-in photodiode array (32 sets of dual columns) sensors and an imported whiteboard, taking into account the measurement speed and the convenience of operation. The repeatability ΔE*ab of the ST70 Spectrophotometer is easily controlled within 0.02, and the inter-stage difference ΔE*ab is controlled within 0.15. The measurement is accurate, and the test data can be used for accurate analysis and transmission of color in the laboratory.

Applications

Kutai Spectrophotometer ST70 is equipped with 5 kinds of measuring calibers, with wider adaptability, accurate color measurement and stable performance. It is used for accurate color measurement and quality control in plastic electronics, paint ink, textile and garment printing and dyeing, printing, ceramics and other industries. Measured on fluorescent samples.

FAQ

QIs the price listed on the website the final cost for overseas purchases?

ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

QWhat is the specific process for purchasing the product?

AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

QWhat should I do if the instrument I purchase needs repair?

AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
