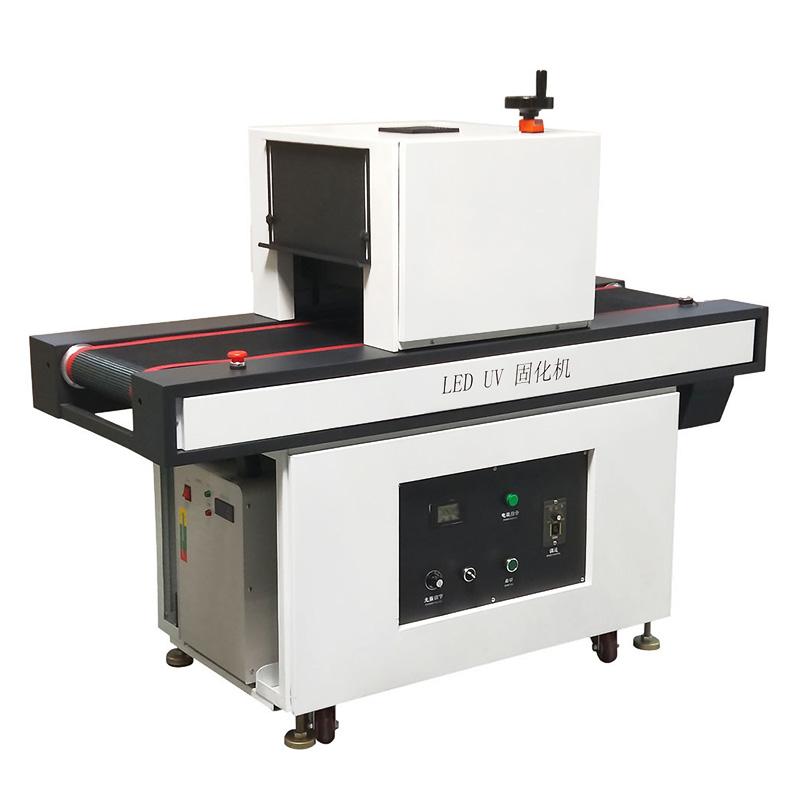

CHAOGU CG-GHL-1000A LEDUV Curing Oven Width 400mm
SE
CG-GHL-1000A
ChaoGu CG-GHL-1000A LEDUV Curing OvenSPEC
ChaoGu CG-GHL-1000A LEDUV Curing OvenDetails
ChaoGu CG-GHL-1000A LEDUV Curing OvenPacking list
- SKU
- NB039078
- length
- 1500Mm (can be customized)
- Network bandwidth
- 400Mm (can be customized)
- Curing Oven Appearance
- Black/Self (can be customized upon request)
- Mesh belt material
- Teflon
- Maximum speed
- 6-8 meters/min
- roller
- Galvanized roller surface knurling
- Sport mode
- Forward and reverse (customizable)
- Input power
- AC220V 50/60Hz
- Ambient Operating Temperature
- 0-40℃
- relative temperature
- 20-90%
- Curing Oven Weight
- 120KG (subject to actual situation)
- Appearance of LEDUV curing lamp
- rose gold
- Lamp holder Dimensions
- 415*50*60mm
- Chill down
- water cooling
- Chip brand
- Seoul
- control mode
- 24v
- wavelength
- 395nm
- power
- 1000w
- luminous size
- 400*30mm
- optical power
- 12W/cm2
- lifespan
- 20000H
- irradiation distance
- 10~50mm
- power control
- 0% -100% adjustable
- input Voltage
- 220V
- Appearance of water cooler
- black and white
- Water cooler Dimensions
- 550*280*430mm
- compressor
- Yes
- Temperature range
- Adjust freely within the range of 5-35 ℃
- power
- 200W
- head
- 28m
- Volume
- 13.5L
- circulating water flow
- 8L-35L/min
- Whole machine noise
- ≤45dB(A)
- Machine Weight
- 40KG
- input Voltage
- 220v
Introduction
The LEDUV curing oven uses LED UV light curing equipment to quickly cure glue, ink, UV wood paint, and varnish.
1500mm long/Network width 400mm/Working surface 700mm off the ground/Light-emitting surface size 400*30mm (L*W)/395nm/ Light intensity adjustable/Speed ââ0-6 meters adjustable .
Overall machine functional configuration
The UV lamp can be started and stopped at any time.
UV lamp has stepless dimming function. Real-time power can be read through the digital power meter on the panel.
The water cooler has protection and alarm functions such as over-temperature and no water.
The UV lamp height is individually adjustable. A special UV-resistant light-blocking curtain is installed at the discharge port. Effectively prevent light leakage.
Roller: The surface of the galvanized roller is knurled to ensure smooth transportation; the roller has an adjustable function.
Machine cooling method: compressor water cooling;
Materials of the whole machine: cold-rolled plate surface machine sprayed;
Appearance of the whole machine: computer gray/black and white.
Power wiring: single-phase three-wire 220VAC 50HZ .
Product Structure

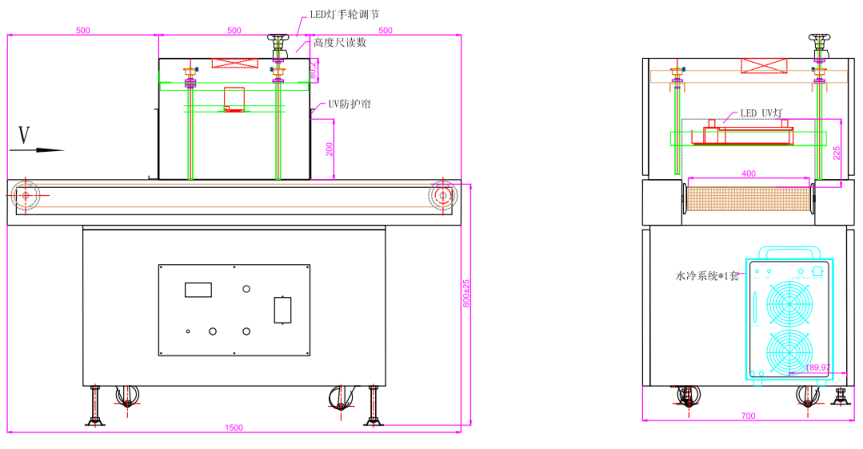

Curing oven size chart
6868 light source appearance
Water cooler appearance diagram
