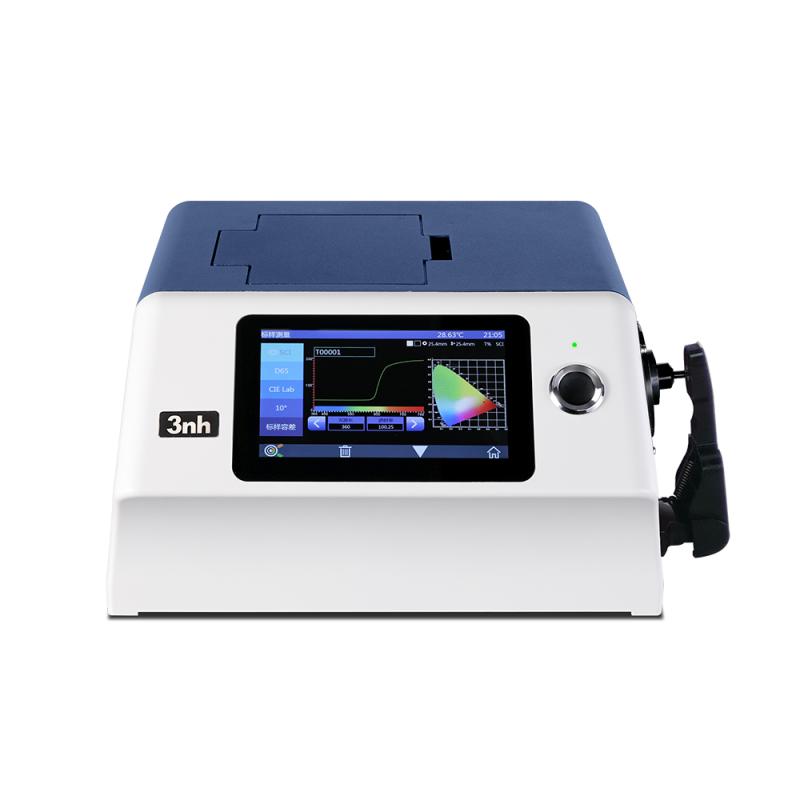

3NH TS8216 printing Colorimeter reflection Should 1mm Transmission Should 8mm
TS8216（Φ1mm）
3NH TS8216（Φ1mm） Desktop ColorimeterSPEC
3NH TS8216（Φ1mm） Desktop ColorimeterDetails
3NH TS8216（Φ1mm） Desktop ColorimeterPacking list
- SKU
- NB039086
- Lighting method
- Reflection: D/8 (diffuse illumination, 8 ° direction reception); SCI/SCE measurement; includes UV/exclude UV measurement; Transmission: D/0 (diffuse illumination, 0 ° direction reception) SCI/SCE measurement; includes UV/exclude UV measurement; Haze (ASTM D1003)
- Integrating sphere size
- Φ154mm
- Lighting source
- 360~780Nm Combined LED Light source, 400nm Cut-off Light source, 420nm Cut-off Light source
- spectroscopy
- Concave grating spectroscopy
- Sensor
- 256 pixel dual array CMOS image sensor
- Wavelength Range
- 360~780nm
- wavelength interval
- 10nm
- Half bandwidth
- 5nm
- Reflectance Measurement Range
- 0~200%
- Measurement caliber
- Reflection: Should 1mm Transmission: Should 8mm
- Light-containing method
- Reflection SCI/SCE, Transmission SCI/SCE
- Color Space
- CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99
- Color difference formula
- ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
- Other chroma metrics
- WI(ASTM E313，CIE/ISO,AATCC,Hunter)，YI(ASTM D1925，ASTM 313),同色异谱指数Mt
- Viewing Angle
- 2°/10°
- Available Light Sources
- D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30
- display mode
- Light spectrum plots/data, sample chromatic values, color difference values/plots, chromaticity plots, Color simulation, pass/fail results, Color bias
- Measurement time
- Approximately 2.4s (approximately 5s for simultaneous SCI/SCE testing)
- Repeatability
- Spectroscopic reflectance: 0019 1mm/SCI, standard deviation within 0.08% chromatic value: 0019 1mm/SCI, Delta E * ab within 0.15 (after instrument preheating correction, the average value of 30 whiteboard measurements at intervals of 5s)
- Inter-instrument Agreement
- ΔE*ab<0.25(SCI)
- size
- 370*300*200mm
- Weight
- About 9.6kg
- Power Supply
- DC 24V, 3A power adapter Power
- Lighting source life
- More than 3 million measurements in 5 years
- Display
- TFT true color 7inch, capacitive touch screen
- Interface
- USB, Bluetooth ® 5.0, print serial port
- store data
- 5000 master standards, 40,000 samples (SCI/SCE counts as one data)
- Operating language
- Simplified Chinese, Traditional Chinese, English, (customizable German, French, Spanish)
- Operating temperature range
- 0~40℃（32~104°F）
- Storage temperature range
- -20~50℃（-4~122°F）
- Optional
- Microprinters, instrument inverted test fixtures, culture dishes
- meet the standard
- CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7
- Other chroma metrics 2
- Staining colour fastness, fastness to color change, force, coverage, APHA/Hazen/Pt-Co (platinum cobalt index), Gardner index 8 degree gloss, 555 shade classification, haze (ASTM D1003), Saybolt (Seibert index), ASTM D1500 color standard, Chinese Pharmacopoeia color standard
- Repeatability 2
- Spectral transmittance: 0019 8mm/SCI, standard deviation within 0.1% chromatic value: 0019 8mm/SCI, Delta E * ab within 0.18 (after instrument preheating correction, the average value of whiteboard 30 times at intervals of 5s measurement)
Introduction
Desktop Spectrophotometer TS8216 is a Spectrophotometer developed by 3nh using its own core spectrometry technology. It uses a dual-array CMOS image sensor with high sensitivity and wide spectral response range, making the test more accurate. The repeatability ÎE*ab of the TS8216 desktop Spectrophotometer is easily controlled within 0.01, and the inter-stage difference ÎE*ab is controlled within 0.12. The data is stable and reliable, and can be used for accurate color analysis and transmission in the laboratory.
Product display picture
Features
1. Micropore diameter
TS8216 desktop Spectrophotometer provides reflection: â0.3mm/0.5mm/1mm (only choose one caliber) transmission: medium 8mm/4mm (only choose one caliber), used for small area reflection samples and small volume transmission samples Chroma control.
2. Adopts the internationally accepted D/8 structure, is compatible with SCI/SCE measurement, and supports simultaneous fast measurement of SCI+SCE.
The TS8216 desktop Spectrophotometer adopts the internationally applicable D/8 lighting observation conditions and SCI/SCE (specular reflection included/excluding specular reflection) synthesis technology, and supports simultaneous rapid measurement of SCI+SCE.
3. Dual array CMOS image sensor
It has high sensitivity and wide spectral response range, ensuring the measurement speed, accuracy, stability and consistency of the instrument.
4. Multiple color measurement spaces and multiple observation light sources
TS8216 desktop Spectrophotometer provides CIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, β F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, DLF, TL83, TL84, TPL5, U30 various observation light sources, which can meet special measurement needs under different measurement conditions.
5. Use a combination of full-spectrum LED light source and UV light source
The full-band balanced LED light source ensures sufficient spectral distribution in the visible light range, avoiding the spectral loss of white LEDs in specific bands, ensuring the measurement speed of the instrument and the accuracy of the measurement results. The professional UV light source ensures more reliable UV testing.
6. Metrology verification report
Each TS8216 desktop Spectrophotometer has been calibrated and tested. The instruments are calibrated according to the measurement standards of the trusted calibration department before leaving the factory. The measurement data are traceable to the National Institute of Metrology to ensure the credibility of the instrument test data.
7. Industrial-grade high-definition touch screen, simple and easy-to-use user interface
Using a 7-inch industrial-grade high-definition touch screen, the control is smooth, and the simple and easy-to-use user interface makes operation comfortable, convenient, and easier to use.
8. Color management software
The SQCX quality management software paired with the TS8216 desktop Spectrophotometer is suitable for quality monitoring and color data management in various industries. Digitize users' color management, compare color differences, generate test reports, provide multiple color space measurement data, and customize customers' color management work.
Application
The TS8216 micropore Spectrophotometer is an instrument with a higher configuration among desktop computers. It uses micropores with wider applicability and higher measurement accuracy. It is suitable for laboratory color analysis and transmission; as well as plastic electronics, paint and ink , textile and clothing dyeing, printing, paper products, medical, cosmetics and food industries.
